Phidgets Light Sensor 1000 lux

Phidgets Light Sensor 1000 lux

SKU:Phidgets-1142_0

Regular price Rs. 809.00
Regular price Sale price Rs. 809.00
Sale Sold out
Tax included.

2 in stock

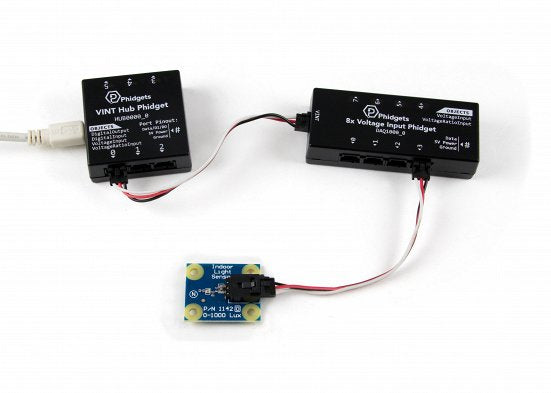

Measures light intensities of up to 1000 lux and connects to an Analog Input or VINT Hub port.

The 1142 Light sensor can measure ambient light up to 1000 lux (roughly equivalent to the typical lighting in a studio, or the sky on an overcast day). Each sensor has been individually calibrated, and a label has been applied to the back of the board with a calibration value which can be used in your calculations to increase measurement accuracy.

Some light sensors report drastically different values depending on the type of light being detected. The 1142 light sensor, however, only differs by a factor of 1.2 when measuring fluorescent light versus incandescent.

If you need a larger measurement range, take a look at the 1143 – Light Sensor 70,000 lux.

Product Specifications

Sensor Properties
Sensor Type Light
Controlled By Voltage Input (0-5V)
Sensor Output Type Non-Ratiometric
Light Sensor
Response Time Max 2 ms
Peak Sensitivity Wavelength 625 nm
Light Level Min 1 lx
Light Level Max (5V) 1 klx
Light Current Ratio 1.2
Electrical Properties
Output Impedance 1 kΩ
Supply Voltage Min 2.4 V DC
Supply Voltage Max 5.5 V DC
Current Consumption Max 5 mA
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
