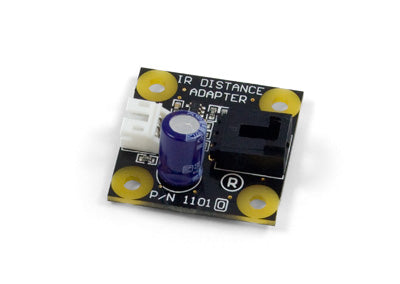

Phidgets IR Distance Adapter
SKU:
Phidgets-1101_0
₹ 809.00
Taxes included.
Shipping calculated at checkout.
Description

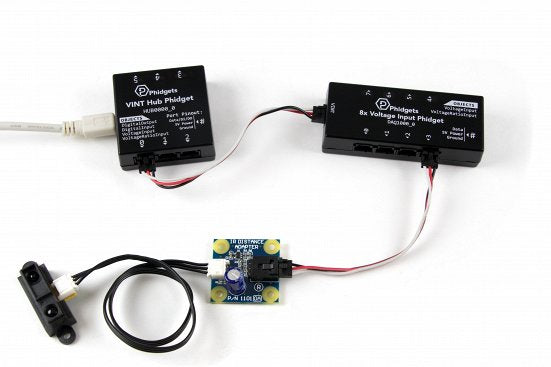

This adapter lets you read Sharp distance sensors with a Phidgets Analog Input or VINT Hub port.

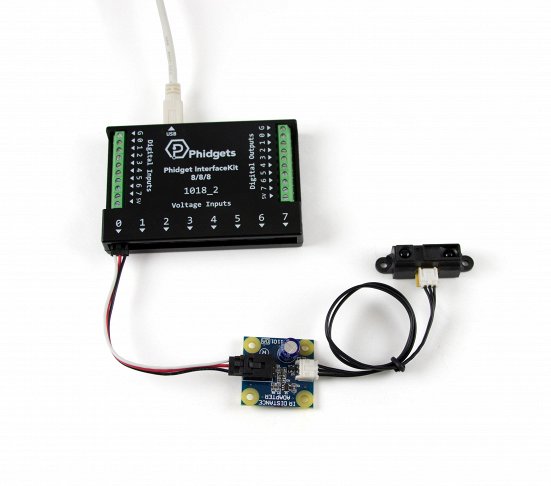

The IR Distance Adapter is designed to interface Sharp IR distance sensors to an analog input on a PhidgetInterface board. Any sharp sensor with a supply voltage of 5V and an output voltage range falling within 0-5V is compatible with this adapter. The cable included with this adapter uses a JST S3B-PH connector, like the sharp sensors sold by Phidgets Inc. If your sharp sensor uses a different connector, you'll need to find a matching cable for it.
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Output Type | Ratiometric |
| Controlled By | VoltageRatio Input |
| Electrical Properties | |
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 3 mA |
| Output Impedance | 1 kΩ |
| Physical Properties | |
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 85 °C |
