PhidgetBridge 4-Input
SKU:
Phidgets-1046_1
₹ 10,359.00
Taxes included.
Shipping calculated at checkout.
Description

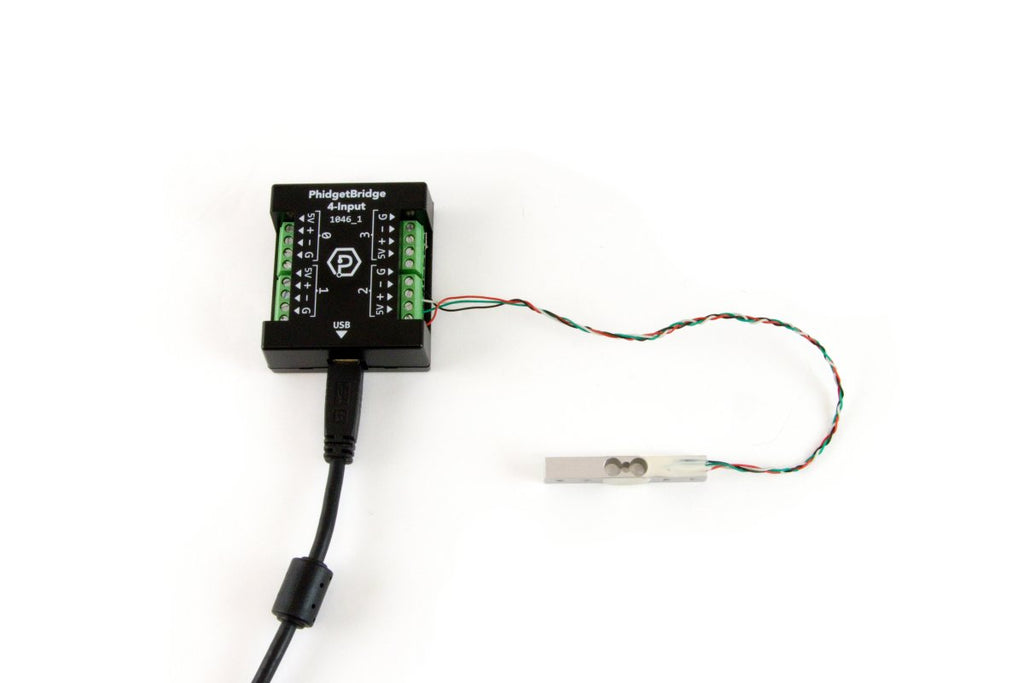

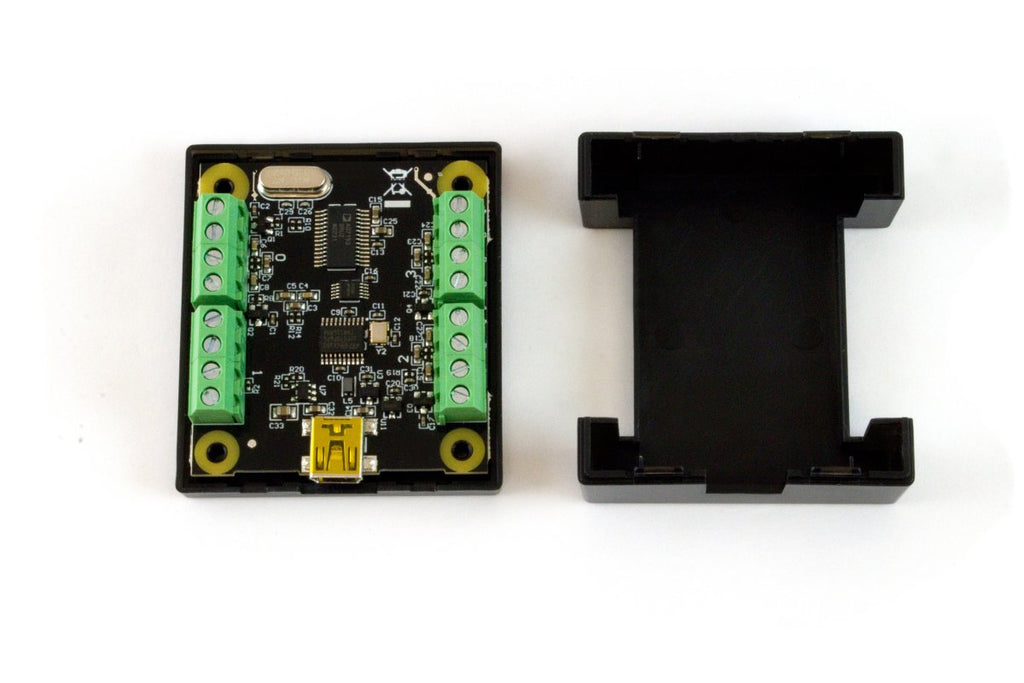

The PhidgetBridge 4-Input is a load cell interface. It amplifies the signal from a load cell and provides a clean, stable digital value.
After connecting the interface to a computer through USB, you will be able to measure the output of up to four load cells. Applying calibration parameters will allow you to convert the raw load cell measurement into an accurate weight or force measurement.
Need a simple weight scale? Connect this interface to the Weighing Scale Kit and get started!
Features
- Maximum data rate of 1200Hz
- High-resolution 24-bit ADC (analog-to-digital converter)
- Configurable gain (1x, 8x, 16x, 32x, 64x, 128x)
- Four load cell inputs
Guides
Calibrating Load Cells
A step-by-step guide showing you how to calibrate a load cell with Phidgets.
Handling Out Of Range Errors
Your code should respond to Out of Range errors to provide uninterrupted data.
Product Specifications
| Board | |
|---|---|
| Controlled By | USB (Mini-USB) |
| API Object Name | Bridge |
| Number of Bridge Inputs | 4 |
| Bridge Data Interval Min | * 1 ms |
| Bridge Data Interval Max | 60000 ms |
| Bridge Resistance Minimum | 75 Ω |
| Differential Voltage Resolution | 24 bit |
| Electrical Properties | |
| USB Voltage Min | 4.5 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Current Consumption Min | 5 mA |
| Current Consumption Max | ** 15 mA |
| Input Voltage Limit Min | Ground + 0.25V DC |
| Input Voltage Limit Max | 5V Supply - 0.25V DC |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 80 °C |
| Customs Information | |
| Canadian HS Export Code | 8471.80.00 |
| American HTS Import Code | 8471.80.40.00 |
| Country of Origin | CN (China) |
* - Minimum data interval is 1ms for one opened channel. If two, three or four channels are opened simultaneously, the minimum data rate for each channel will be 4, 6 or 8ms respectively.
** - Maximum current consumption is the value listed above, plus the current consumed by the attached load cells, which varies depending on the sensor's construction.
