Phidgets

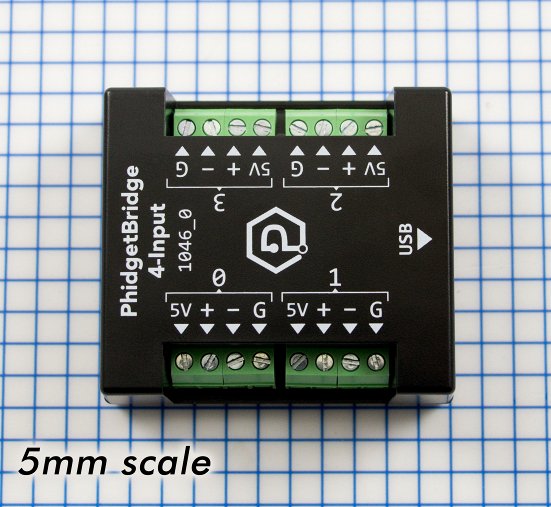

PhidgetBridge 4-Input

PhidgetBridge 4-Input

SKU:Phidgets-1046_0B

Regular price Rs. 10,359.00
Regular price Sale price Rs. 10,359.00
Sale Sold out
Tax included.

1 in stock



This board is needed to measure the output from a load cell. You can connect up to four load cells or strain gauges.

The PhidgetBridge lets you connect up to 4 un-amplified Wheatstone bridges, such as:

  • Strain gauges
  • Compression load cells
  • Pressure sensors/Barometers
  • Piezoresistive accelerometers
  • Magnetoresistive sensors (Compasses)

The data rate and gain values can be configured in software.

Product Specifications

Board
Controlled By USB (Mini-USB)
API Object Name Bridge
Number of Bridge Inputs 4
Bridge Data Rate Min * 8 ms
Bridge Data Rate Max 1000 ms
Bridge Input Current Max ± 3 nA
Differential Voltage Resolution 24 bit
Electrical Properties
USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Current Consumption Min 35 mA
Current Consumption Max 500 mA
Available External Current 465 mA
Input Voltage Limit Min Ground + 0.25V DC
Input Voltage Limit Max 5V Supply - 0.25V DC
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
