Orbbec
Persee N1
SKU: Orbbec Persee-N1
₹ 58,999.00
Taxes included.
Shipping calculated at checkout.
Description
● NVIDIA® Jetson Nano™ Quad Core ARM A57 @ 1.43 GHz
● High quality depth data output from 0.15-10m
● Up to 30 fps at 1280X800 depth resolution
● Up to 30 fps at 1920X1080 color resolution
● POE (Power over Ethernet), USB, HDMI
● Memory expansion with MicroSD and M.2
● 0℃ ~ 40℃ indoor/semi-outdoor operation
|
Model |
4GB RAM + 16GB Storage |
|
Operating Environment |
Indoor/Semi-Outdoor; 5%-95%RH |
|
Depth Technology |
Active Stereo IR |
|
Depth Range |
*0.15-10m |
|
Wavelength |
850nm |
|
Processor |
NVIDIA Jetson Nano Quad Core ARM A57 @ 1.43 GHz Orbbec ASIC for Depth Processing, |
|
SDK |
Orbbec SDK; Built-In Ubuntu 18.04 |
|
Depth FoV |
H91° V66° |
|
Depth Resolution and Frame Rate |
Up to 1280X800@30fps |
|
RGB FoV |
H86° V55° |
|
RGB Resolution and Frame Rate |
Up to 1920X1080@30fps |
|
RAM/Storage |
4GB/ 16GB with expansion slot |
|
WiFi/BT |
N/A |
|
Power Input |
DC 12V/3A or PoE |
|
Ports |

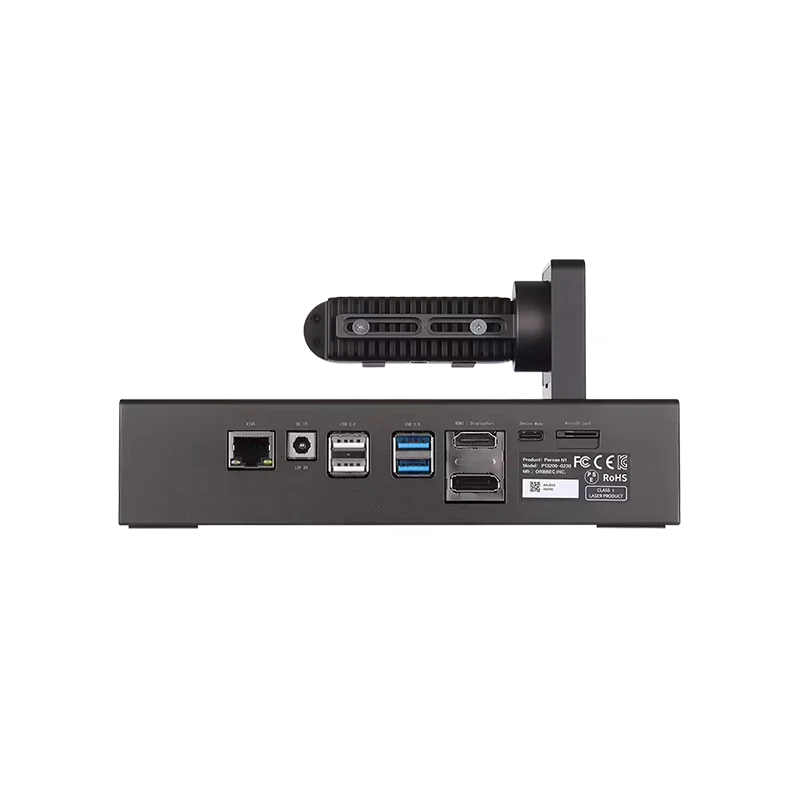

USB 3.0 Type-A x 2, USB 2.0 Type-A x 2, USB Type-C (Device Mode Only), Gigabit Ethernet with PoE, HDMI, DisplayPort, MicroSD, M.2 Expansion Slot |
|
Microphone |
N/A |
|
Weight |
986g |
|
Dimensions (W*H*D) |
200mm x 100mm x 90mm |

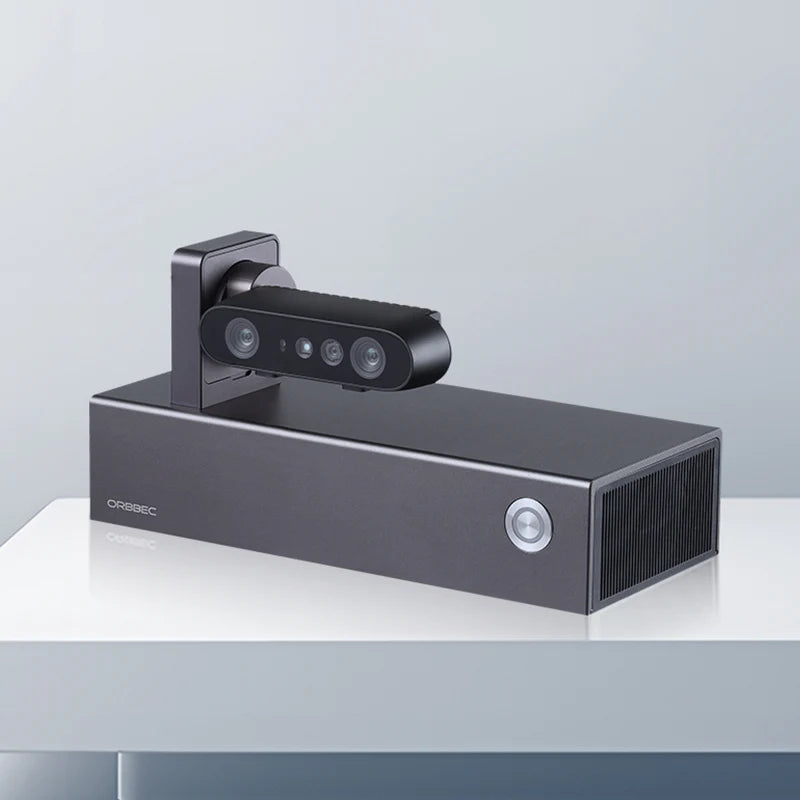

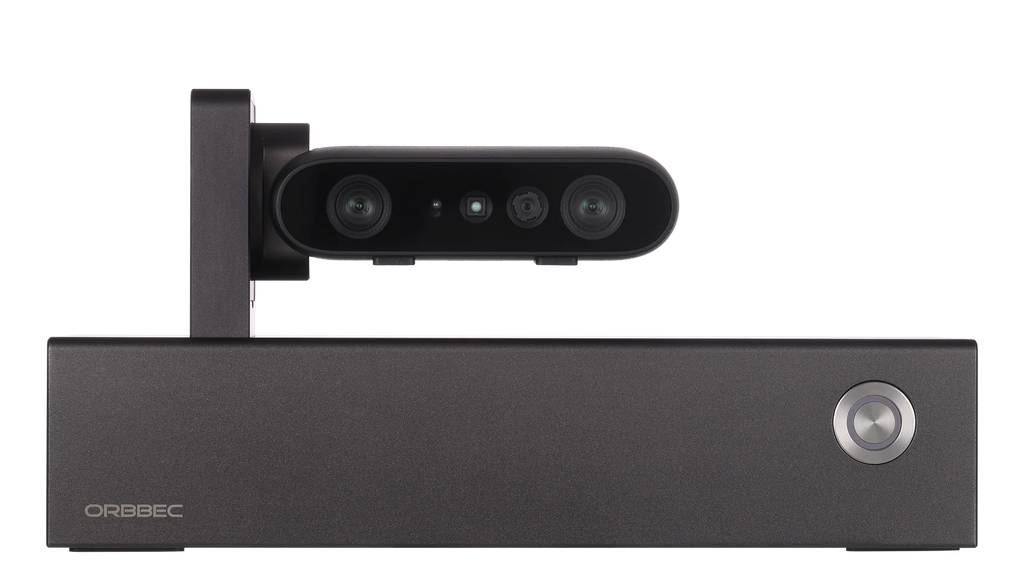

The Persee N1, co-developed by Orbbec and NVIDIA, is a 3D development kit that integrates the high-performance Gemini 2 stereo camera with the versatile NVIDIA Jetson Nano platform. In addition to its default configuration, this kit supports flexible integration of various Orbbec 3D cameras and NVIDIA computing platforms to meet user needs.
The kit features a diverse range of hardware interfaces, catering to robotics, smart vehicles, and human reconstruction control requirements. It also supports software platforms such as NVIDIA Jetpack, VisionWorks, and DeepStream, enabling the development, validation, deployment, and optimization of 3D-related projects from the NVIDIA open-source community, including motion sensing, obstacle avoidance, and volume measurement. This reduces development costs and further promotes innovation in 3D applications and the commercialization of smart camera products.
What's Included:
