OAK-FFC ToF 33D

Description

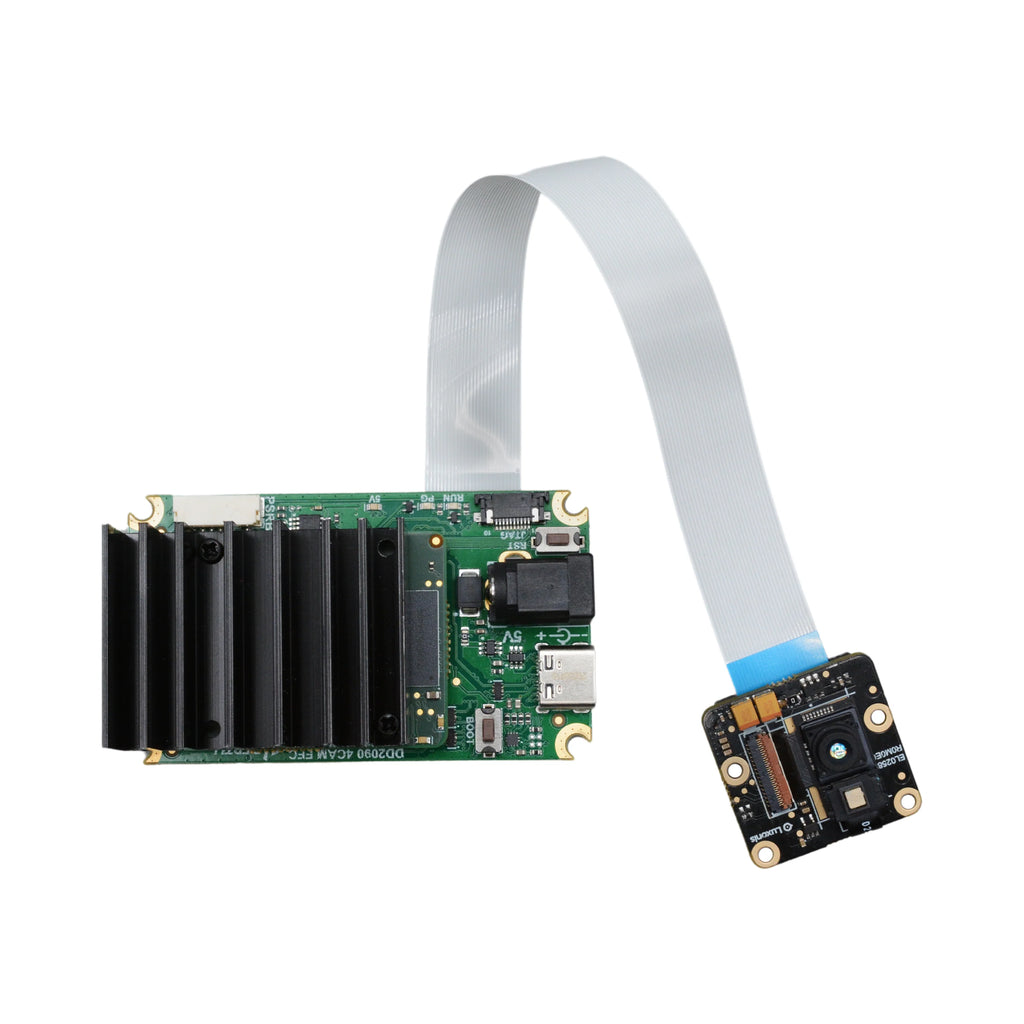

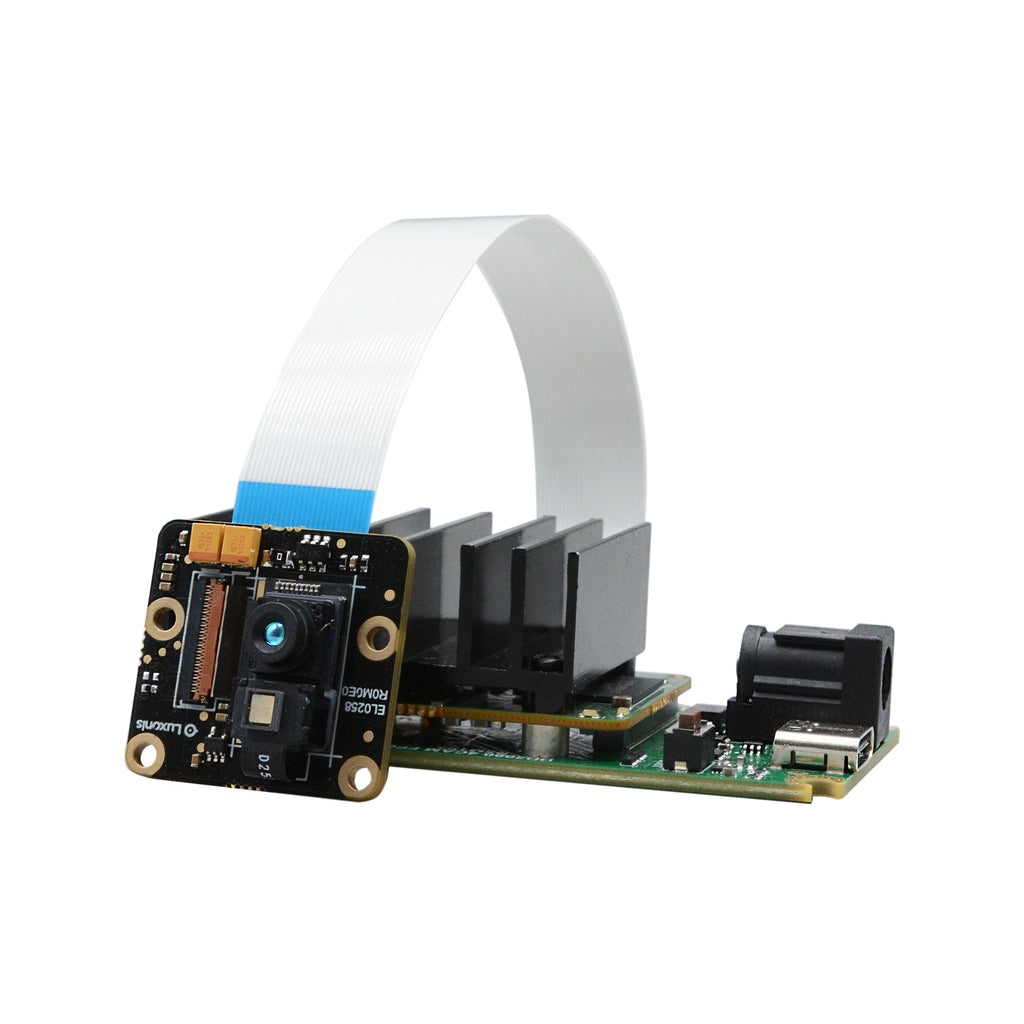

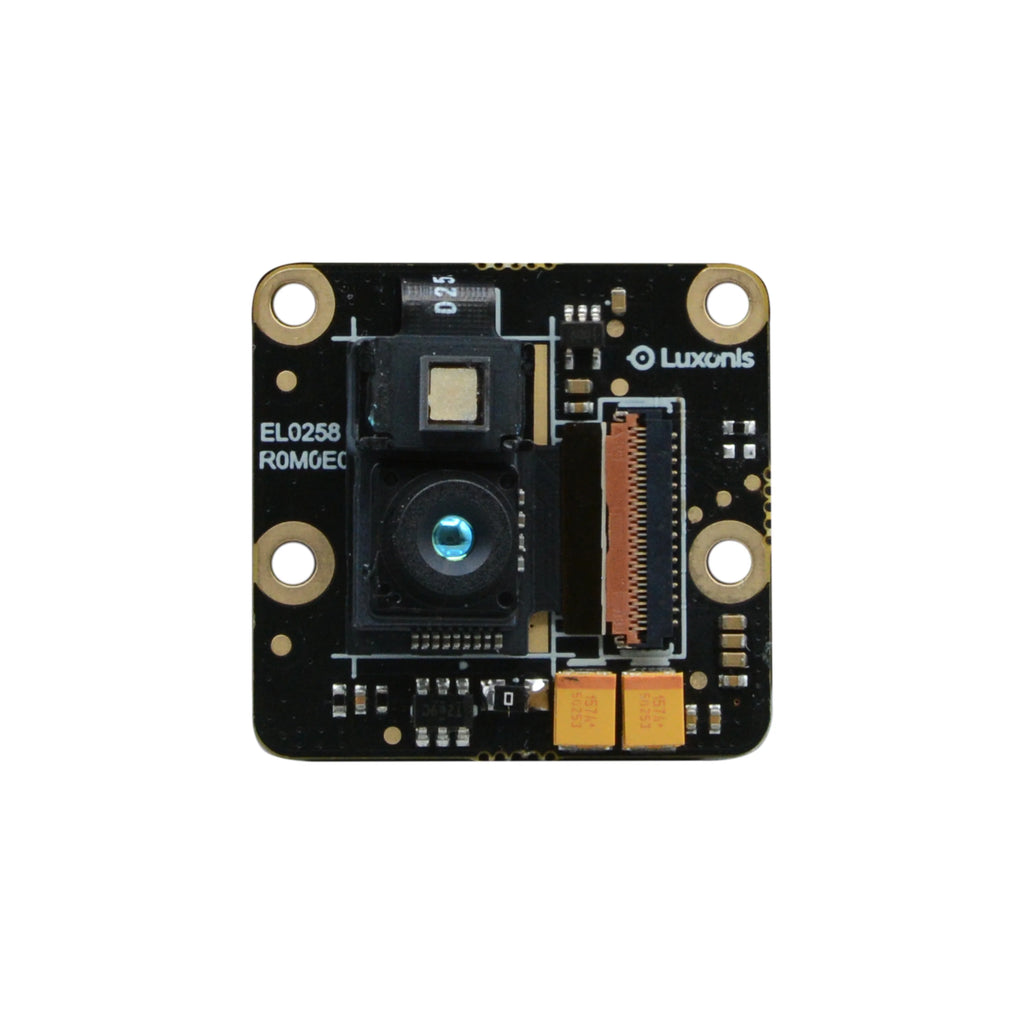

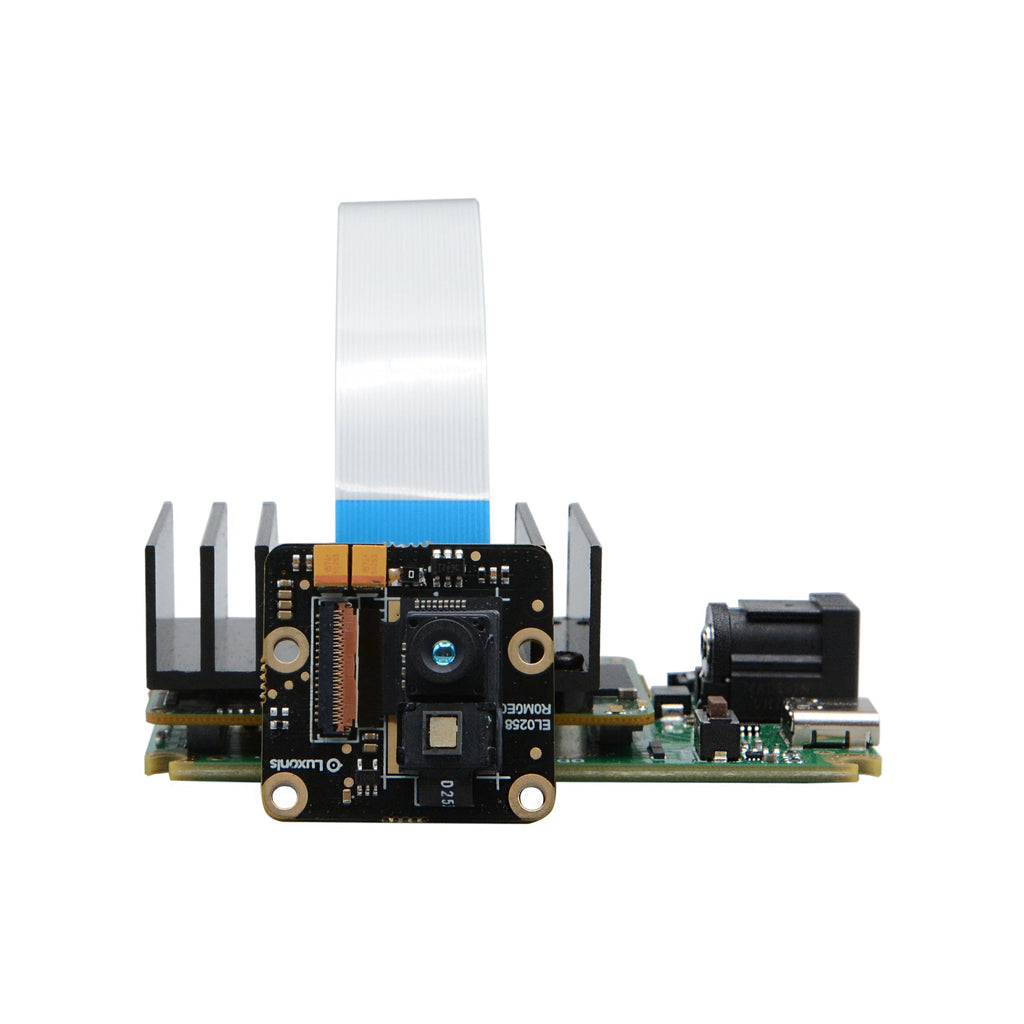

The OAK-FFC ToF 33D is a carrier board for the 33D ToF (Time-of-Flight) sensor. It's ideal for applications that require high accuracy at short to medium range (up to 4m).

Specifications:

• 1/3.2-inch optical format
• Depth range from 20cm to 5m

• Depth accuracy <1% indoors, <2% outdoors

• Output interface: 2-lane MIPI
• Operating temperature from -20°C to 70°C

Note! ToF sensor decoding isn't fully implemented, so the depth from ToF isn't accurate. It will be implemented in firmware in late January 2024 so users will be able to update the library to get the improved depth from it.

1. Product Documentation

This FFC camera board is designed to be compatible with OAK-FFC boards:

• OAK-FFC 3P
• OAK-FFC 4P
• OAK-FFC 6P

• OAK-FFC 4P PoE
• OAK-FFC 1P PoE
