OAK-1 Fixed Focus OV9782
Description

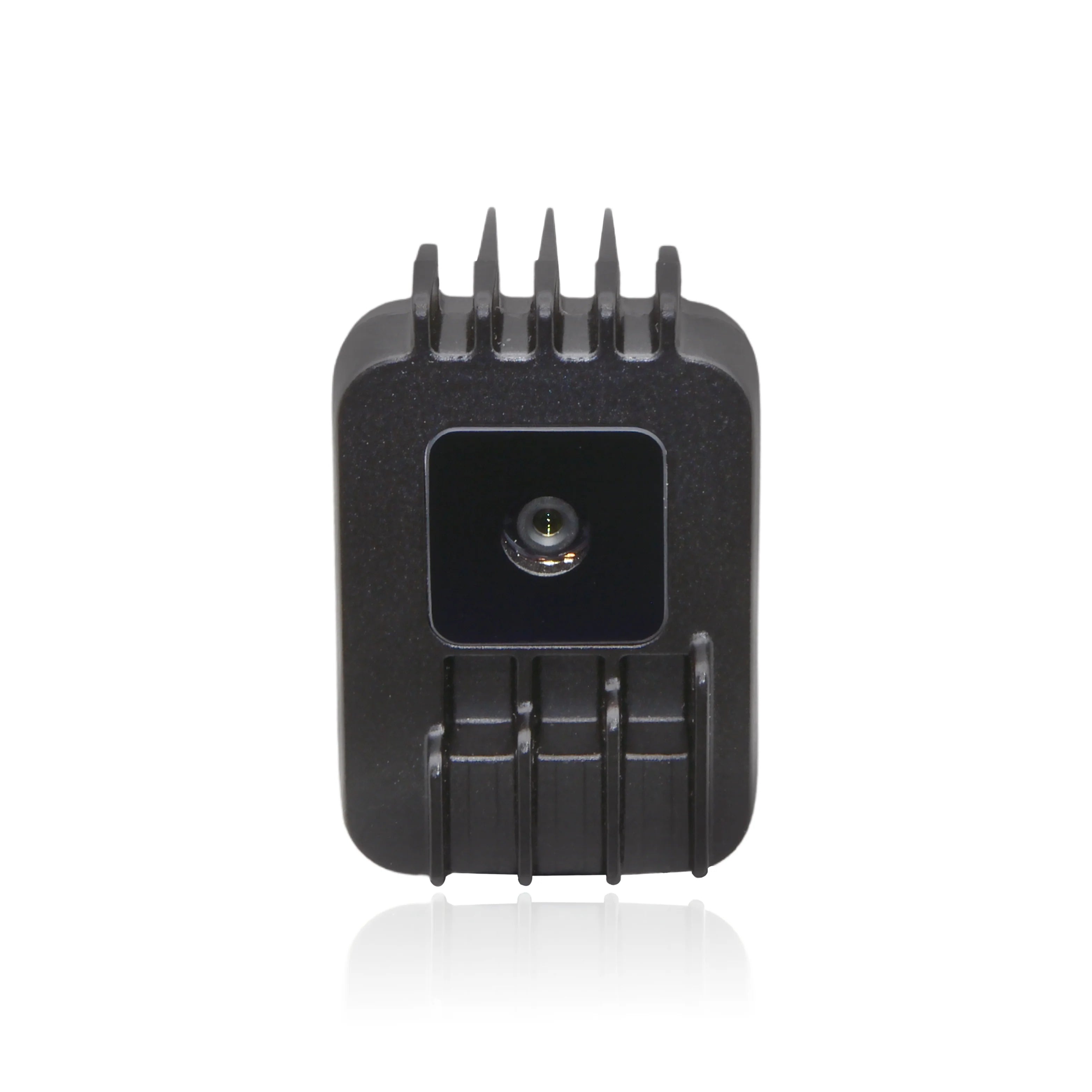

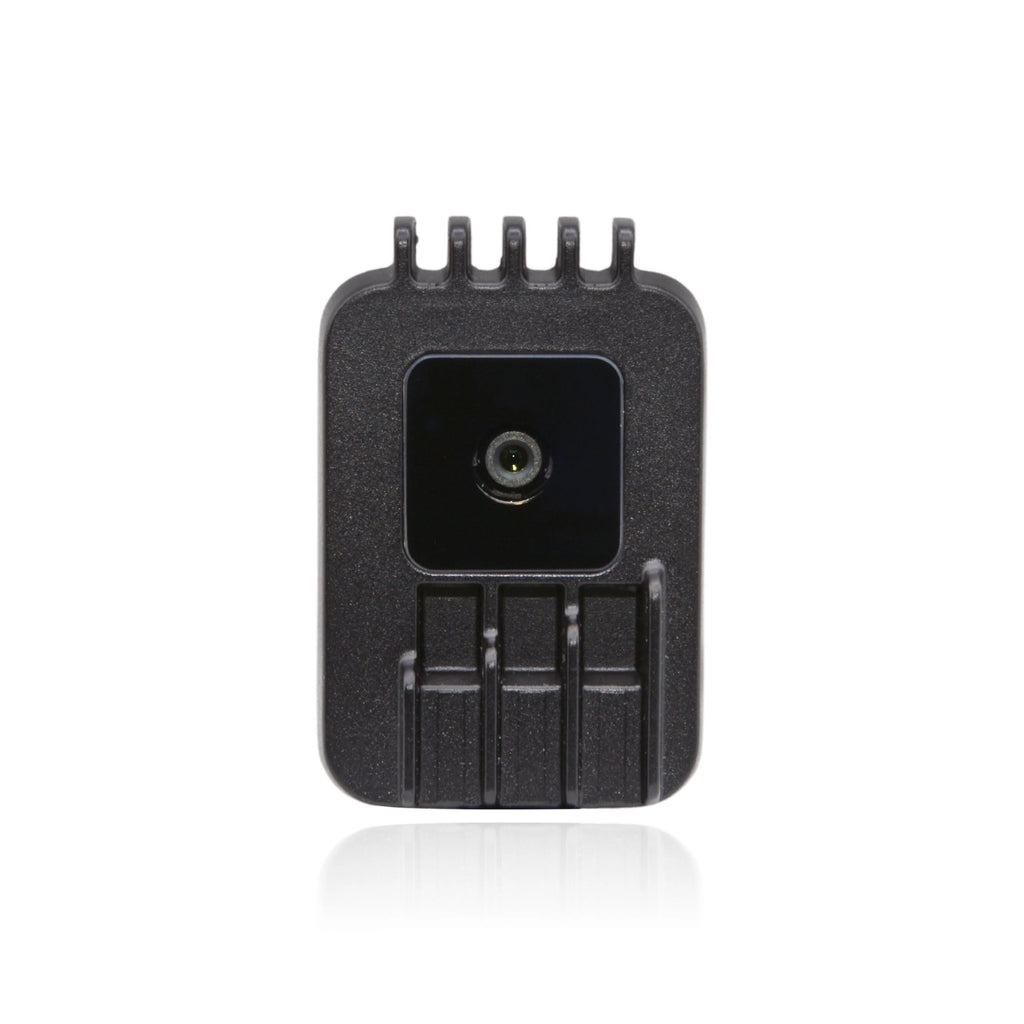

The OAK-1 Fixed Focus OV9782 is a special version of the OAK-1 single-camera AI device, built around a global-shutter OV9782 sensor. It is aimed at developers and integrators who need on-device AI and computer vision with distortion-free, high-speed capture — ideal for heavy-vibration and motion applications.
Key highlights
- Global shutter sensor: OV9782 captures motion without rolling-shutter distortion, well suited to drones, vehicles, and vibration-heavy setups.
- High frame rate: up to 120 FPS at 1MP (1280×800) resolution.
- On-device AI: RVC2 delivers 4 TOPS of processing power (1.4 TOPS for AI) and runs any convertible AI model.
- Rich vision pipeline: H.264/H.265/MJPEG encoding, warp (undistortion), resize, crop, edge detection, feature tracking, and 2D object tracking.

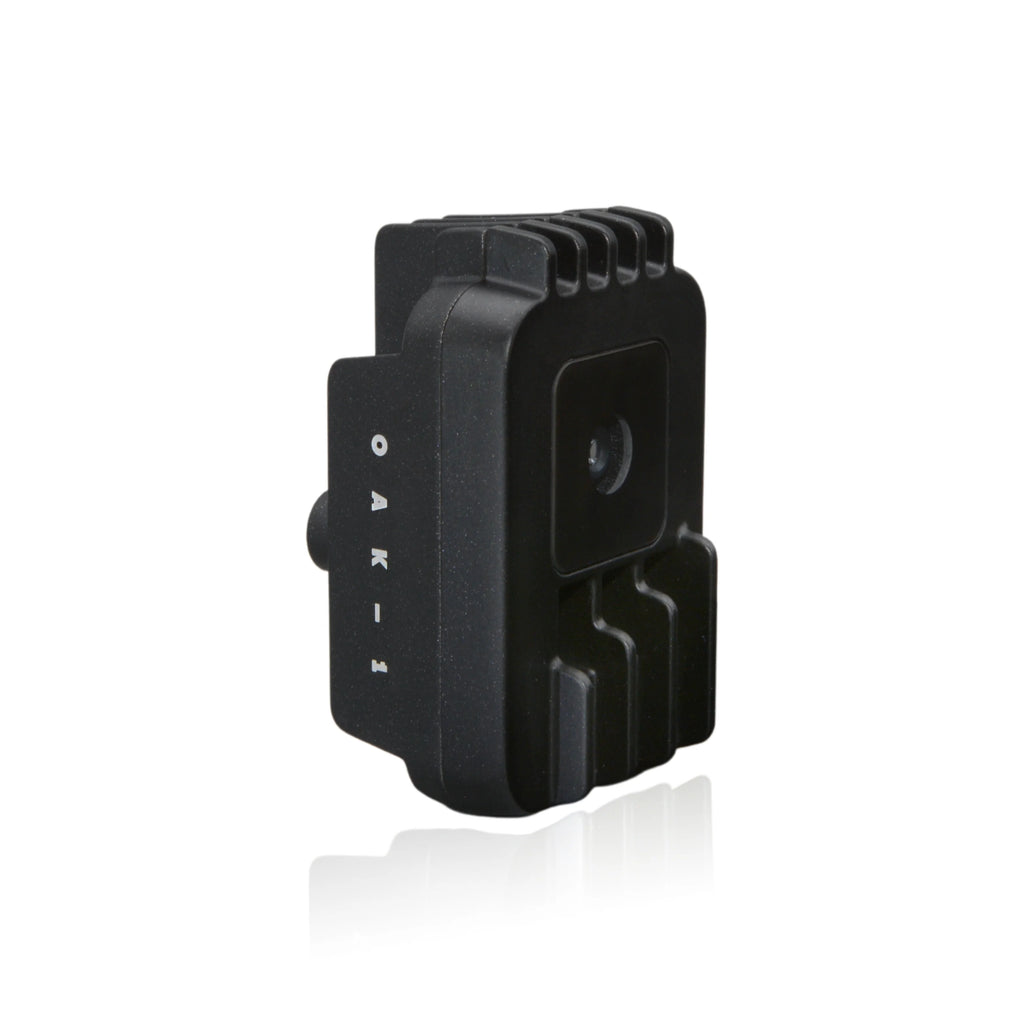

- Industrial build: aluminum housing with front Gorilla Glass and a 1/4″ tripod mount.
- Single-cable USB-C: USB 3.2 Gen1 (5 Gbps) for both power and connectivity.
Camera specifications
The OAK-1 is available in three camera variants: standard IMX378 Fixed-Focus and IMX378 Auto-Focus, plus the special OV9782 Fixed-Focus global-shutter version (this product). All variants can clearly see objects 50 cm and beyond.
| Variant | IMX378 Auto-Focus | IMX378 Fixed-Focus | OV9782 |
|---|---|---|---|
| Sensor | IMX378 | IMX378 | OV9782 |
| FOV (D/H/V) | 78° / 66° / 54° | 82° / 69° / 55° | 89.5° / 80° / 55° |
| Resolution | 12MP (4056×3040) | 12MP (4056×3040) | 1MP (1280×800) |
| Focus | AF: 8 cm – ∞ | FF: 50 cm – ∞ | FF: 50 cm – ∞ |
| Max Framerate | 60 FPS | 60 FPS | 120 FPS |
| Spectral range | Visible only | Visible only | Visible only |
| Shutter Type | Rolling | Rolling | Global |
| Sensor size | 1/2.3″ | 1/2.3″ | 1/4″ |
| F-number | 1.8 ± 5% | 1.8 ± 5% | 2.0 ± 5% |
| Effective focal length | 4.81 mm | 4.81 mm | 2.35 mm |
| Pixel size | 1.55µm | 1.55µm | 3µm |
Power & connectivity
- USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity
- Base consumption + camera streaming: 2.5 W – 3 W
- AI subsystem: up to 1 W; stereo depth pipeline: up to 0.5 W; video encoder: up to 0.5 W
- Total power consumption up to ~5 W when all features run at full utilization
Operating characteristics
Ambient operating temperature is between −20°C and 50°C when fully utilizing the VPU.
Dimensions & weight
- Dimensions: 36×54.5×27.8 mm
- Weight: 53.1 g
What's in the box
- OAK-1 camera
- USB-CA-1m cable
- Cleaning cloth
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
