MikroElektronika
DAC Click
SKU: MIKROE-950
₹ 1,889.00
Taxes included.
Shipping calculated at checkout.
Description

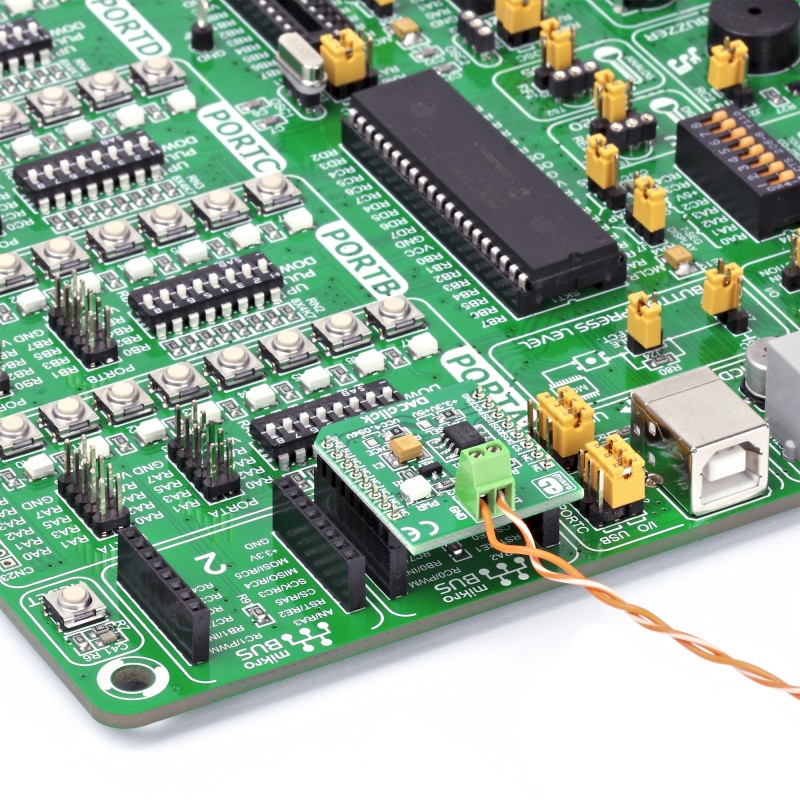

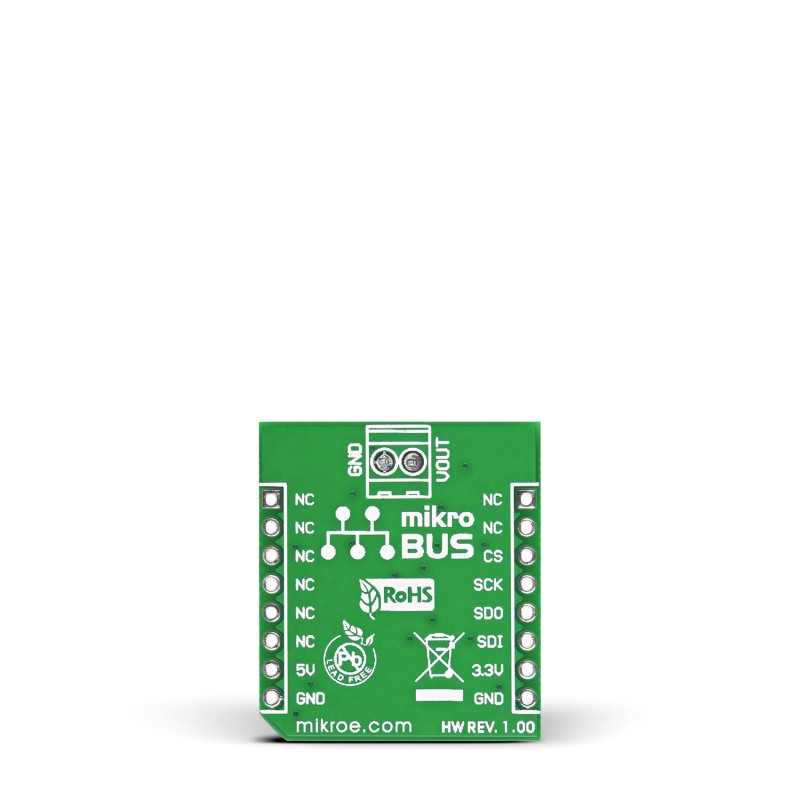

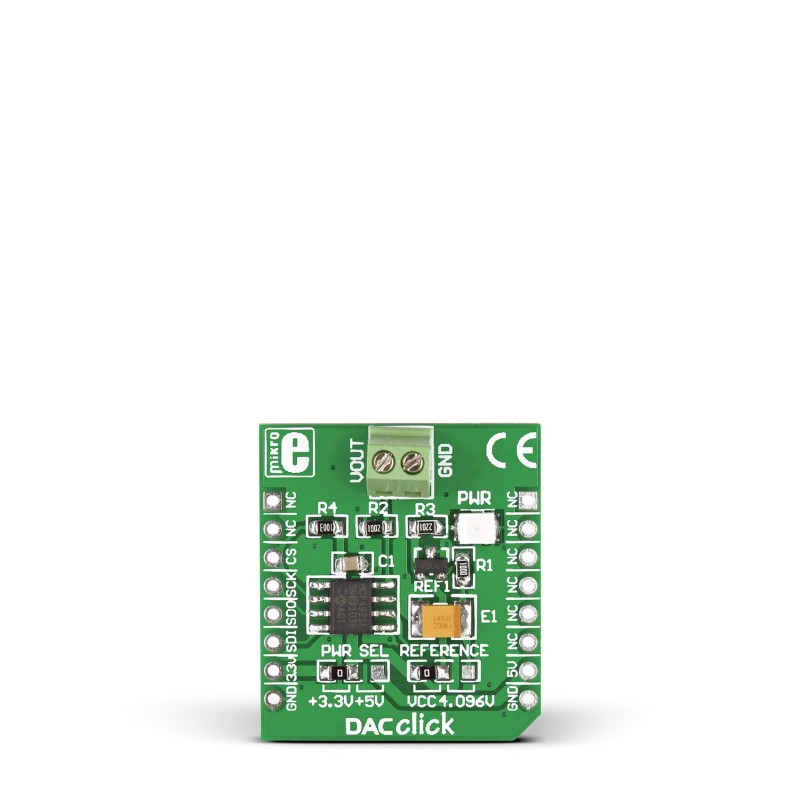

DAC Click is an accessory board in mikroBUS form factor. It includes a 12-bit Digital-to-Analog Converter MCP4921 that features an optional 2x buffered output and SPI interface. The board provides high accuracy and low noise performance for industrial applications where calibration or compensation of signals, such as temperature, pressure and humidity, are required. Board is set to use 3.3V power supply by default. Solder PWR SEL SMD jumper to 5V position if used with 5V systems.
Specification
| Type | DAC |
| Applications | Device provides very high accuracy and low noise performance, and is suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. |
| On-board modules | 12-bit Digital-to-Analog Converter MCP4921 |
| Key Features | Output Settling Time 4.5µs, operating Current 175 µA (typ) |
| Key Benefits | Easy to connect using provided screw terminals |
| Interface | SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |

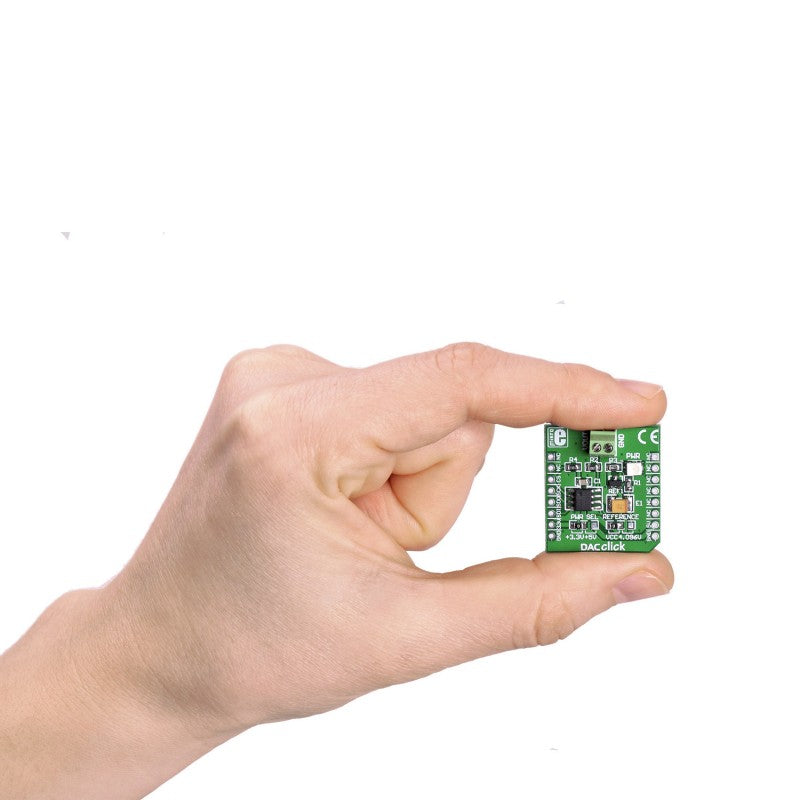

| Click board size | S (28.6 x 25.4 mm) |
