DIGI POT click
₹ 1,779.00
Sale price
₹ 1,779.00
Regular price
Skip to product information
Out of stock
MikroElektronika
DIGI POT click
MIKROE-923
₹ 1,779.00
Sale price
₹ 1,779.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description

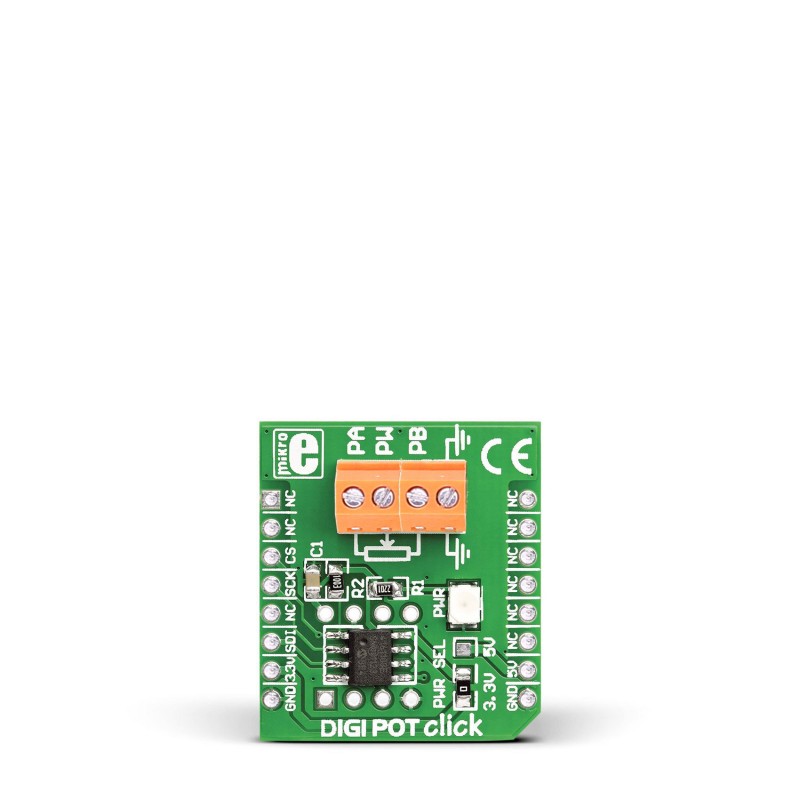

DIGIPOT Click is an accessory board in mikroBUS form factor. It features a single-channel digital potentiometer MCP4161 with 8-bit resolution (256 wiper steps) and industry-standard SPI serial interface. The resistance value of the digital potentiometer goes up to 10 kΩ. It features outstanding AC/DC characteristics and low power consumption. It can be used in audio equipment, servo-motor control, battery charging and control, LCD contrast control, programmable filters etc.
Specification
| Type | Digital potentiometer |
| Applications | Board can be used in audio equipment, servo-motor control, battery charging and control, LCD contrast control, programmable filters etc. |
| On-board modules | Single-channel digital potentiometer MCP4161 |
| Key Features | 8-bit (256 wiper steps) digital potentiometer |
| Key Benefits | Small dimensions, easy to integrate into your prototype devices. |
| Interface | SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
