Rectangular NFC 25x20 Antenna
Description
Rectangular NFC 25x20 Antenna is PCB antenna designed with the intention to be used as extension of development boards and placed remotely on desired place such as plastic casing, existing products, or even under displays. Antenna is designed in circular shape with diameter of 25mm. Its important to mention that this antenna can be used for NFC and RFID applications that works on 13.56 MHz frequency.
Rectangular NFC 25x20 Antenna design is an essential part of NFC / RFID readers implementation. Having the right antenna for your application is crucial to get optimum read range and reliability with NFC / RFID in your products. A good antenna design from the start also helps you to reduce time-to-market. Therefore, we are offering different shape and size antennas that can be selected for your specific use case.

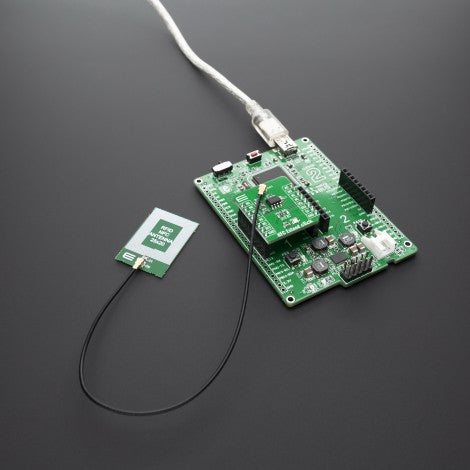

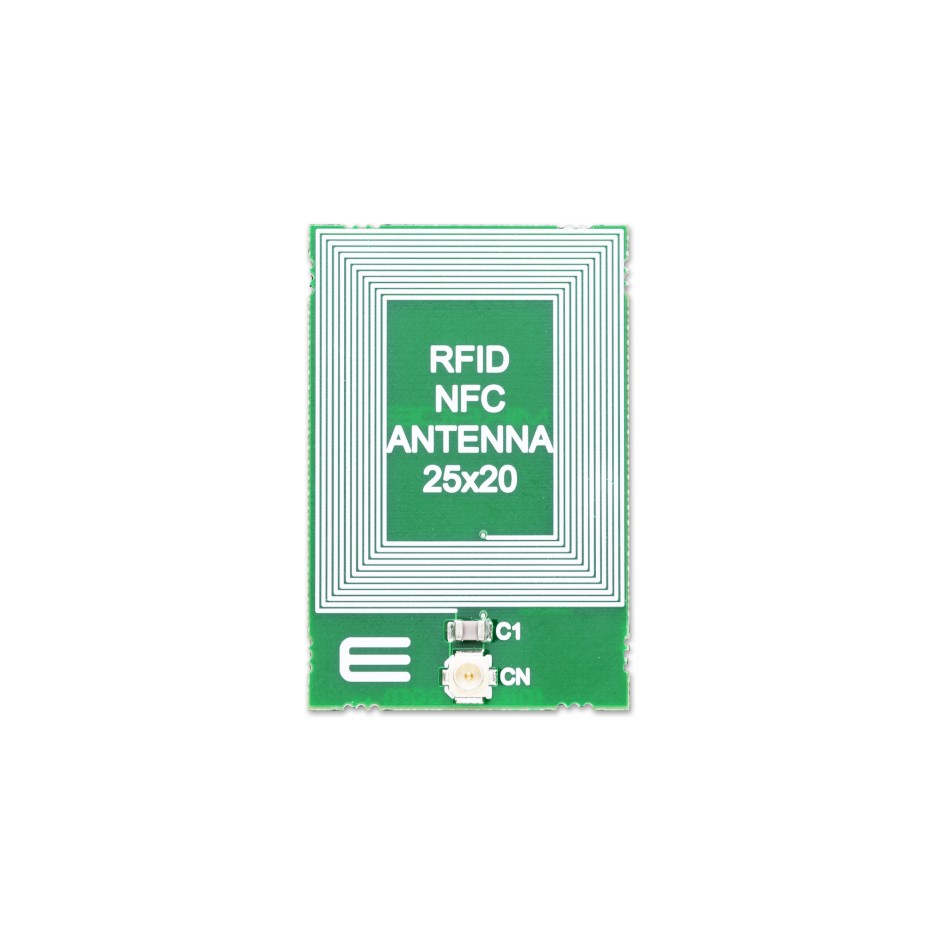

This antenna can be connected to existing NFC Extend Click board or any device with the male U.FL connector. Mikroe offers antenna without extension cable therefore you may order one UMCC female-to-female cable adapter.
- Frequency range: 13.56 MHz
- Shape: Rectangular
- Coil size: 25mm x 20mm
- Antenna width: 21mm
- Antenna length: 32mm
- Coil turns: 12
Resources
Downloads
Rectangular NFC 25x20 Antenna 2D and 3D files
