Vibra sense click
₹ 1,889.00
Sale price
₹ 1,889.00
Regular price
Skip to product information
1 left
MikroElektronika
Vibra sense click
MIKROE-1927
₹ 1,889.00
Sale price
₹ 1,889.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description
Description

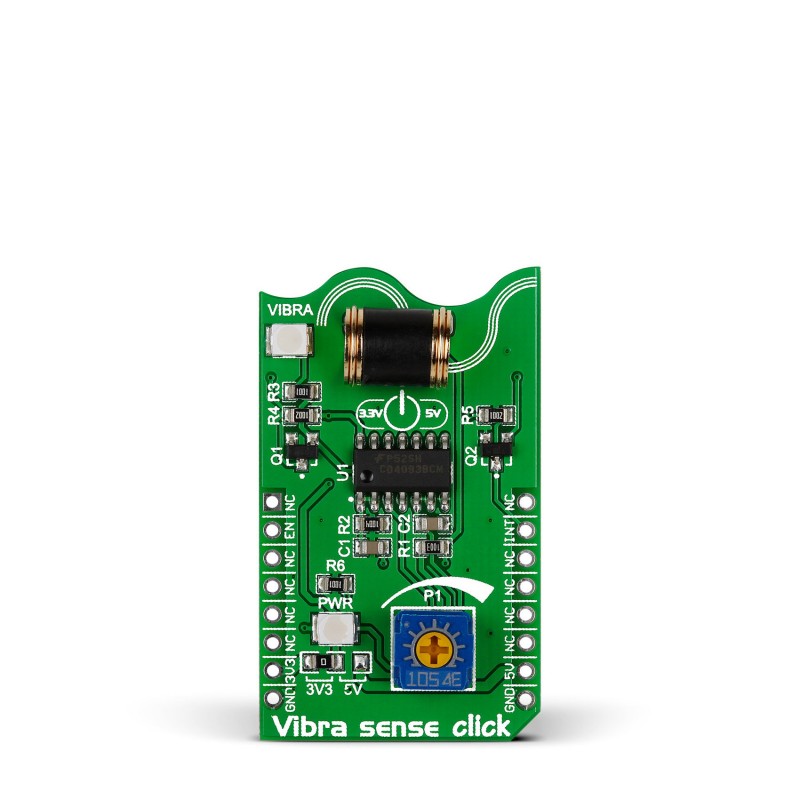

Vibra Sense click is a low cost micro shock vibration sensor with a digital output which can be set as an Interrupt (mikroBUS INT pin) An onboard potentiometer lets you set the interrupt threshold. An additional Enable line (EN) is in place of the mikroBUS pin. It’s a very simple and effective solution for detecting vibrations. The sensing unit consists of a round housing in which a spring is coiled around a metal pin. When exposed to vibration, the spring contacts the pin and closes the switch. The board is designed to use either a 3.3V and a 5V power supply.
Specification
| Type | Motion |
| Applications | Vibra sense click is a suitable solution for designers who are developing anti-tampering, anti-theft devices, especially if cost efficiency is among the primary requirements |
| On-board modules | micro shock vibration sensor |
| Key Features | Calibration potentiometer. Vibration sensor. Digital output, configurable as an interupt |
| Key Benefits | Digital output can be set as an Interrupt |
| Interface | GPIO |
| Input Voltage | 3.3V or 5V |

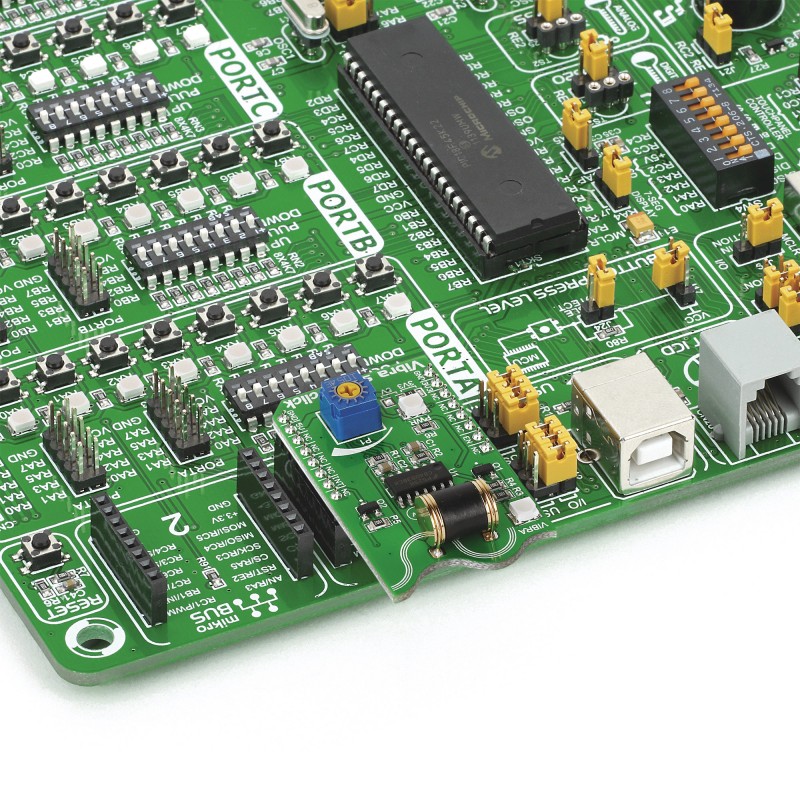

| Compatibility | mikroBUS |

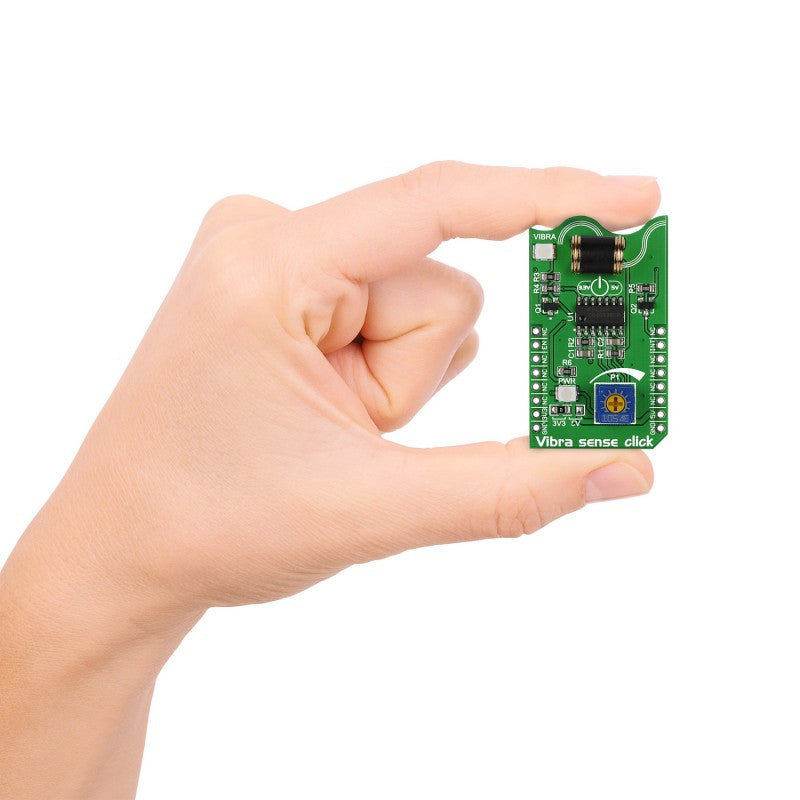

| Click board size | M (42.9 x 25.4 mm) |
