MikroElektronika
DAC2 Click
SKU: MIKROE-1918
₹ 1,999.00
Taxes included.
Shipping calculated at checkout.
Description

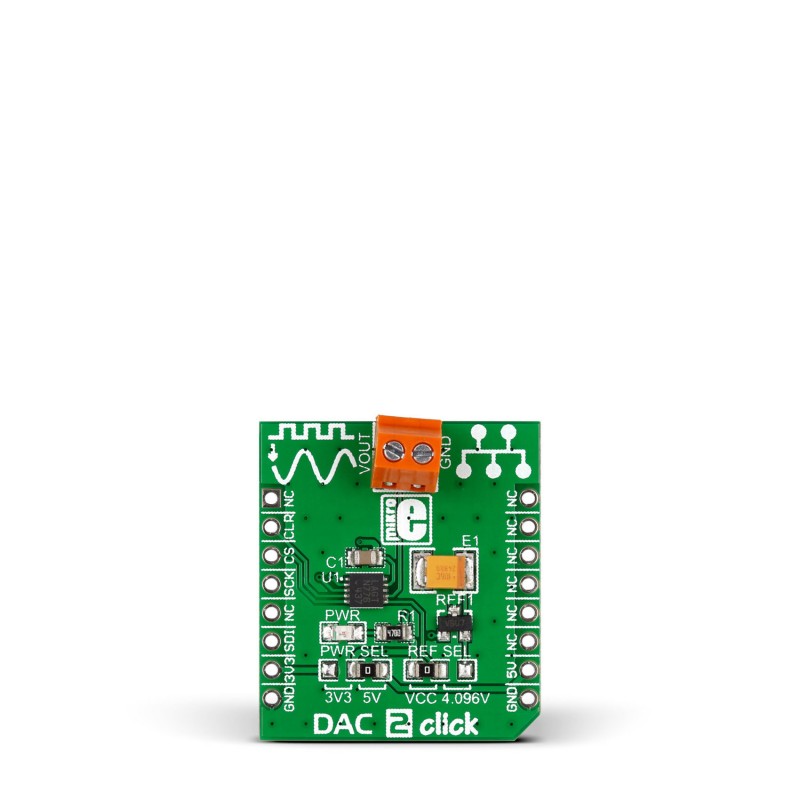

DAC2 click carries LTC2601CDD, a 16-bit digital-to-analog converter, along with voltage output screw terminals. The chip has high rail-to-rail output drives (±15mA, Min) and double-buffered data latches. The click board communicates with the target MCU through the mikroBUS SPI interface with clock rates up to 50MHz. Additionally, the CLR pin, in place of default mikroBUS RST pin, clears all the registers. The board uses either a 3.3V or 5V power supply. You can also set the reference voltage either to VCC or 4.096V.
Specification
| Type | DAC |
| Applications | Device provides very high accuracy and low noise performance, and is suitable for consumer and industrial applications, such as mobile communications. Process Control and Industrial Automation n Instrumentation, Automatic Test Equipment |
| On-board modules | LTC2601CDD 16-bit digital-to-analog converter |
| Key Features | High rail-to-rail output drives (±15mA, Min). Double buffered data latches |
| Key Benefits | SPI clock rate up to 50MHz. Selectable reference voltage |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |

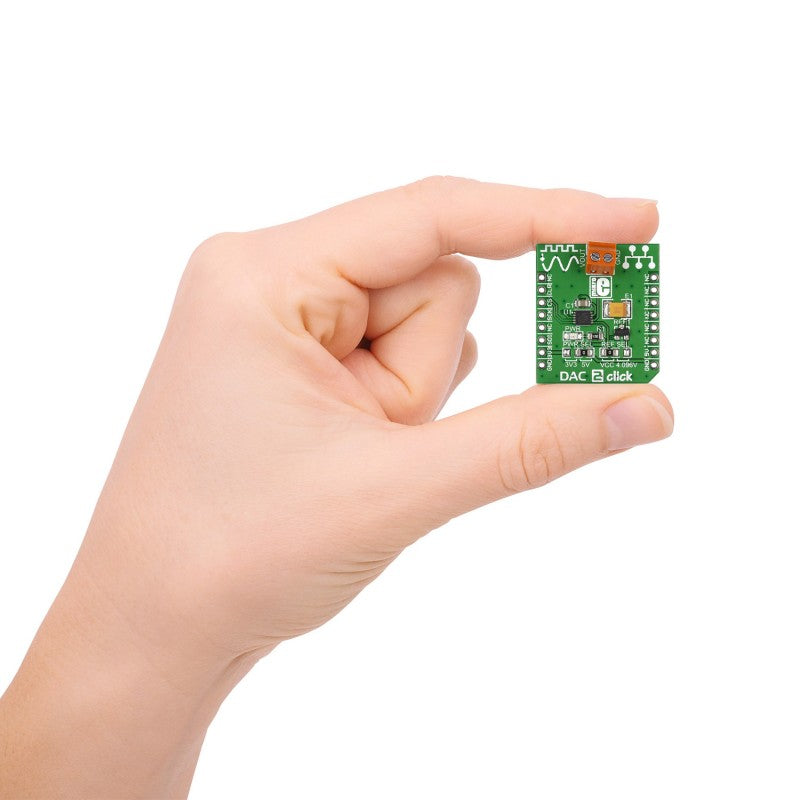

| Click board size | S (28.6 x 25.4 mm) |
