MikroElektronika

DAC2 Click

DAC2 Click

SKU:MIKROE-1918

Regular price Rs. 1,999.00
Regular price Sale price Rs. 1,999.00
Sale Sold out
Tax included.

Out of stock

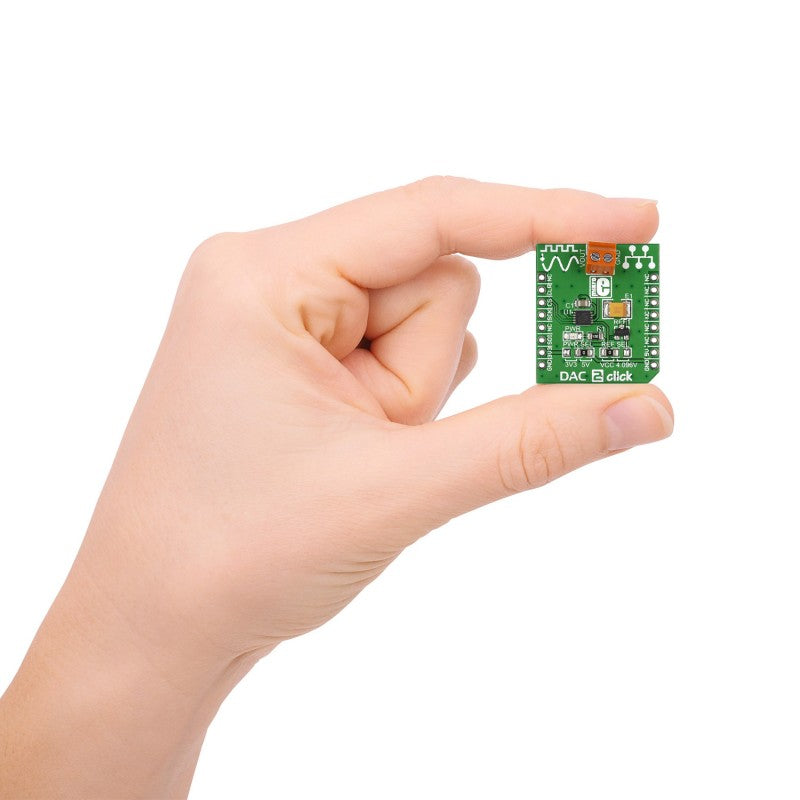

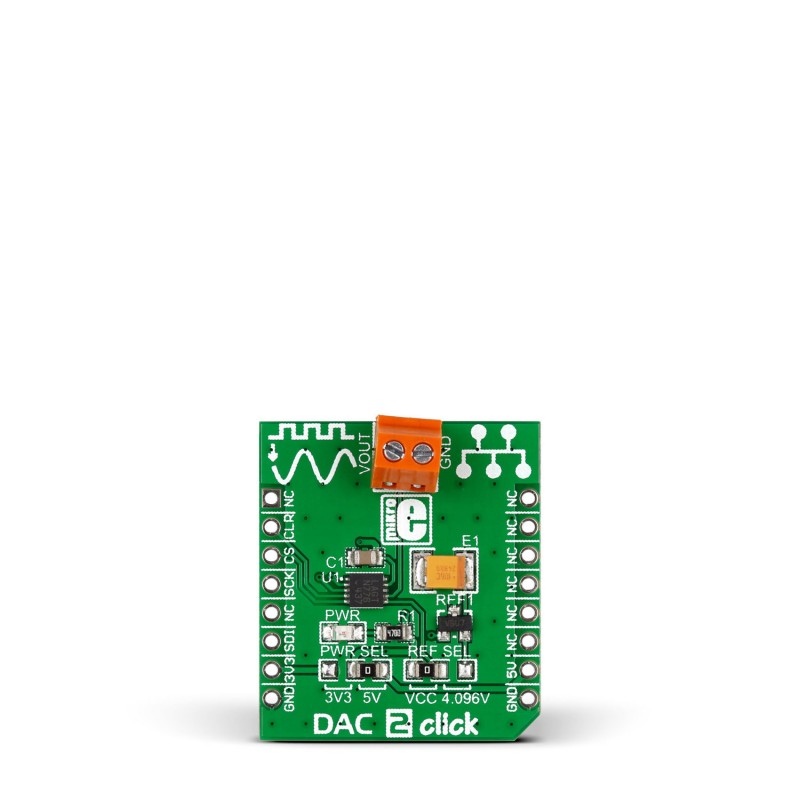

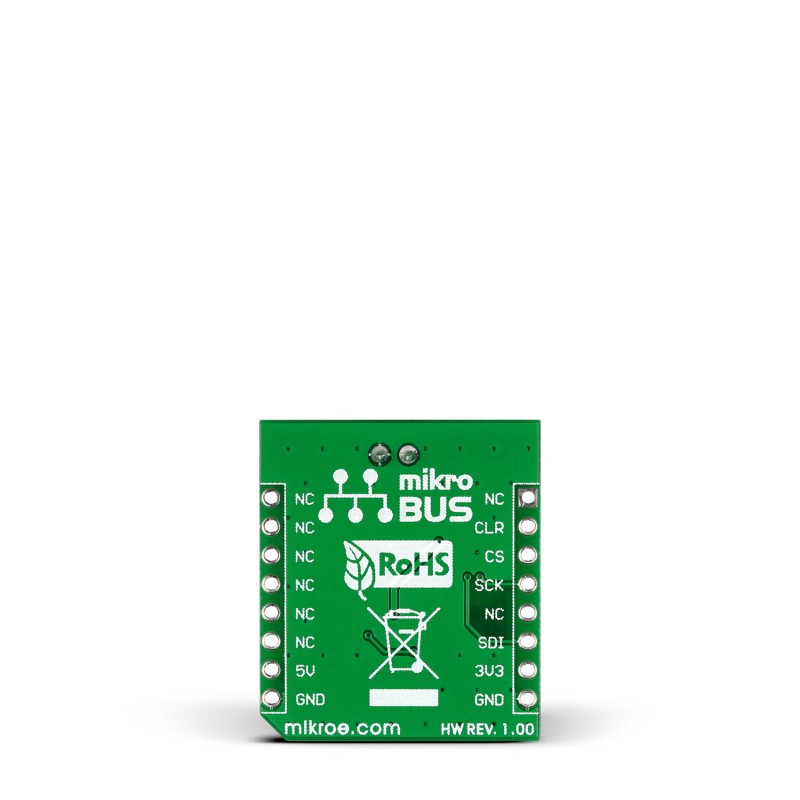

DAC2 click carries LTC2601CDD, a 16-bit digital-to-analog converter, along with voltage output screw terminals. The chip has high rail-to-rail output drives (±15mA, Min) and double-buffered data latches. The click board communicates with the target MCU through the mikroBUS SPI interface with clock rates up to 50MHz. Additionally, the CLR pin, in place of default mikroBUS RST pin, clears all the registers. The board uses either a 3.3V or 5V power supply. You can also set the reference voltage either to VCC or 4.096V.

Specification

Type DAC
Applications Device provides very high accuracy and low noise performance, and is suitable for consumer and industrial applications, such as mobile communications. Process Control and Industrial Automation n Instrumentation, Automatic Test Equipment
On-board modules LTC2601CDD 16-bit digital-to-analog converter
Key Features High rail-to-rail output drives (±15mA, Min). Double buffered data latches
Key Benefits SPI clock rate up to 50MHz. Selectable reference voltage
Interface GPIO,SPI
Input Voltage 3.3V or 5V

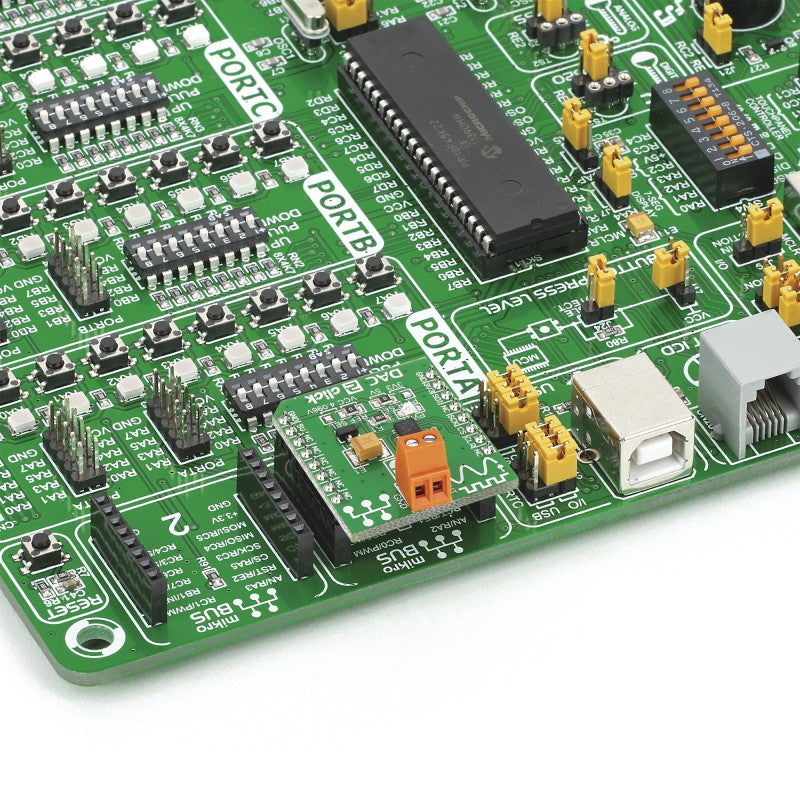

Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
