MikroElektronika
Ambient 2 click
SKU: MIKROE-1903
₹ 1,469.00
Taxes included.
Shipping calculated at checkout.
Description

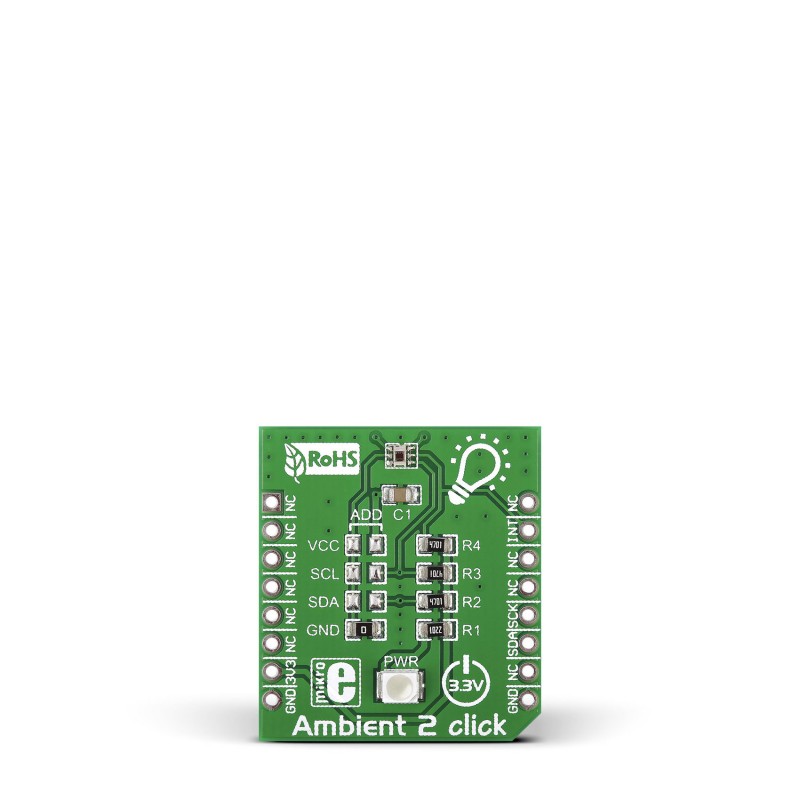

Ambient 2 click carries TI’s OPT3001 Ambient Light sensor. It’s a small (2mm x 2mm) single-chip lux meter that measures only the visible part of the light spectrum from any kind of source (mimicking the way humans see light). It does so by filtering out 99% of infrared light. The measurement range of Ambient 2 click is from 0.01 Lux to 83k lux, and a 23-bit resolution. Communication with the target MCU is done through mikroBUS I2C pins, with an additional INT pin which can be used for triggering wake-up events (offloading the MCU).
Specification
| Type | Optical |
| Applications | Display panel backlighting, street light control, security lighting and so on |
| On-board modules | OPT3001 Ambient Light sensor |
| Key Features | 0.01 lux to 83k lux range, 23-bit resolution |
| Key Benefits | Approximates light response of human eye |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V |

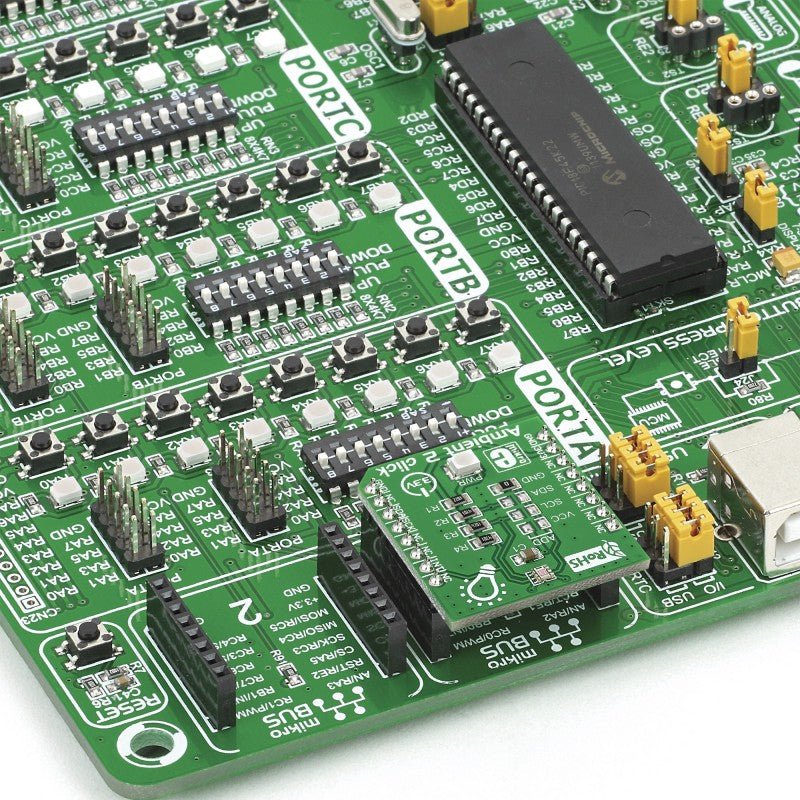

| Compatibility | mikroBUS |

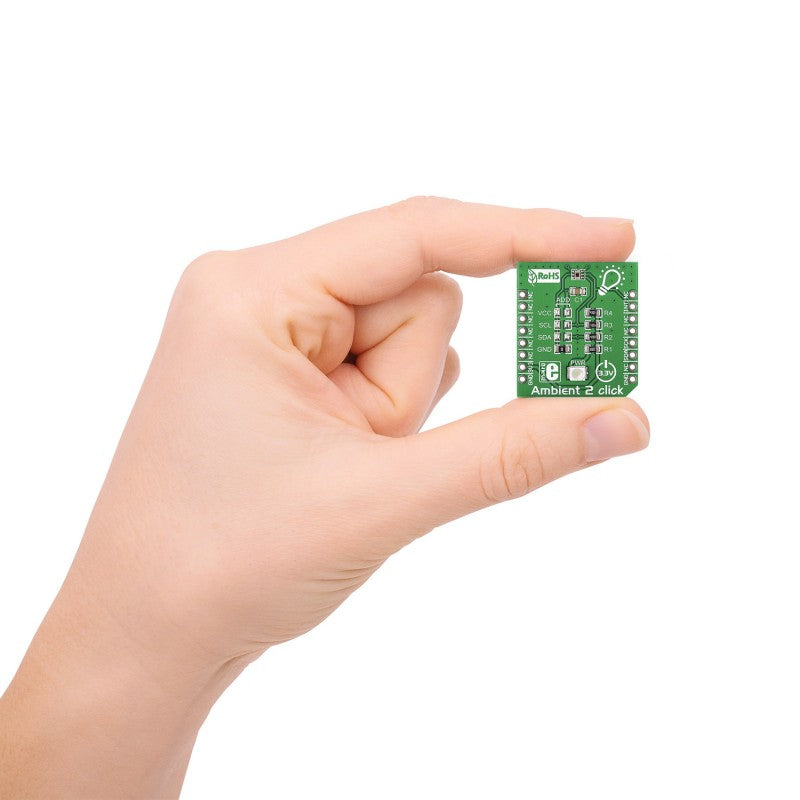

| Click board size | S (28.6 x 25.4 mm) |
