Description

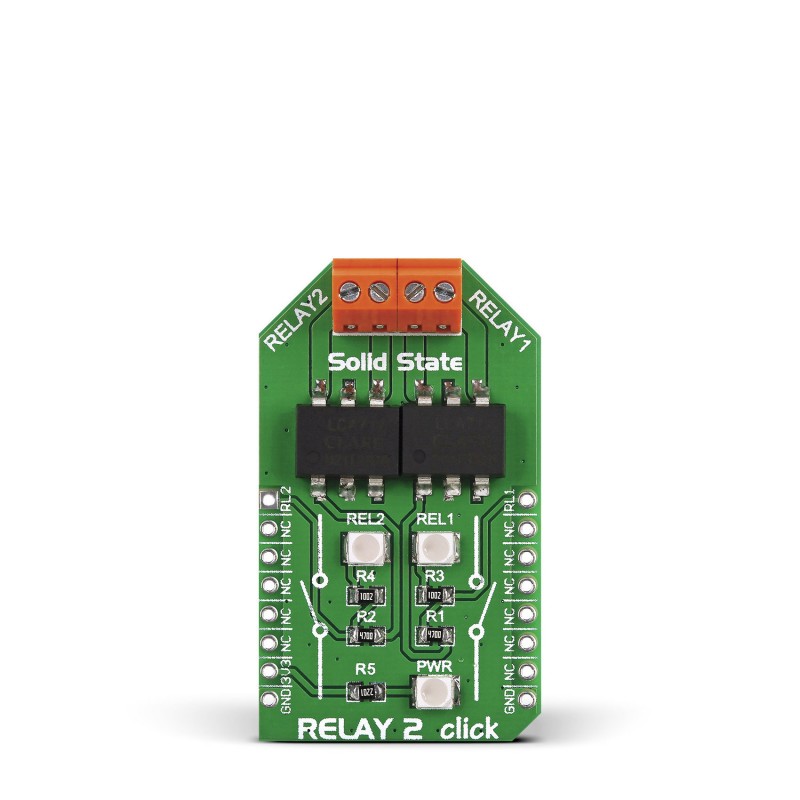

Relay 2 click carries two LCA717 single-pole, OptoMOS® solid state relays and two screw terminals for connecting the wiring. These relays have a load current of 2A, low maximum on-resistance of just 0.15 Ohms, and a blocking Voltage of 30V. The LCA717 have optically coupled outputs that use the patented OptoMOS technology. Solid state relays enable fast, silent and bounce-free switching. Each relay is coupled with an onboard signal LED. The board is designed to use a 3.3V power supply only.
Specification
| Type | Relay |
| Applications | Turn things On or Off, like lights, motors, and similar devices that don’t exceed the specified voltage/current levels |
| On-board modules | Two LCA717 single-pole, OptoMOS® solid state relays |
| Key Features | Maximum voltage 30V; Max current 2A. Status indicator LEDs |
| Key Benefits | Fast, silent and bounce-free switching. High reliability |
| Interface | GPIO |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
