Description

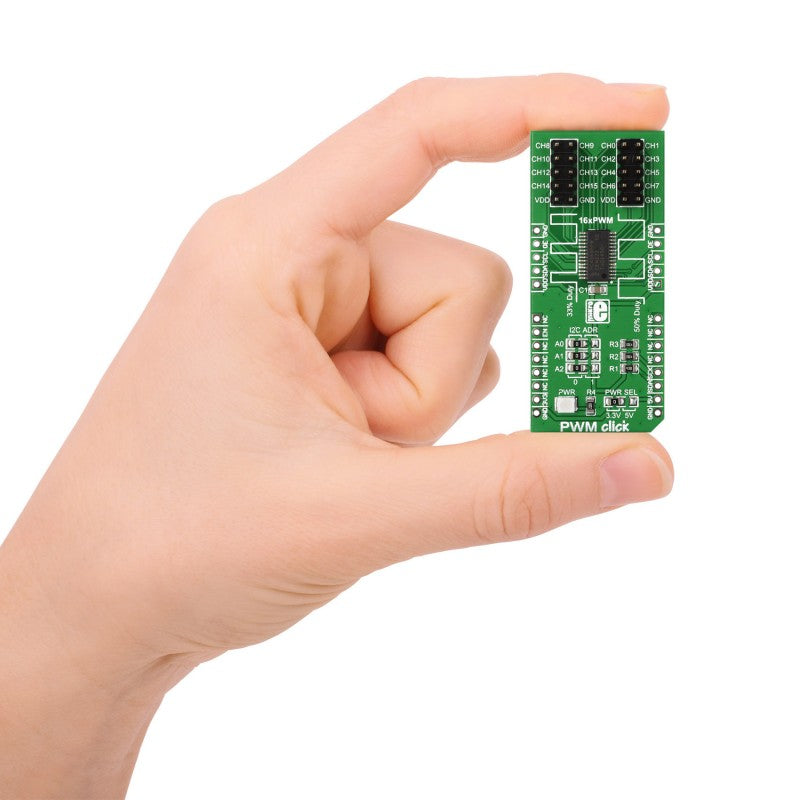

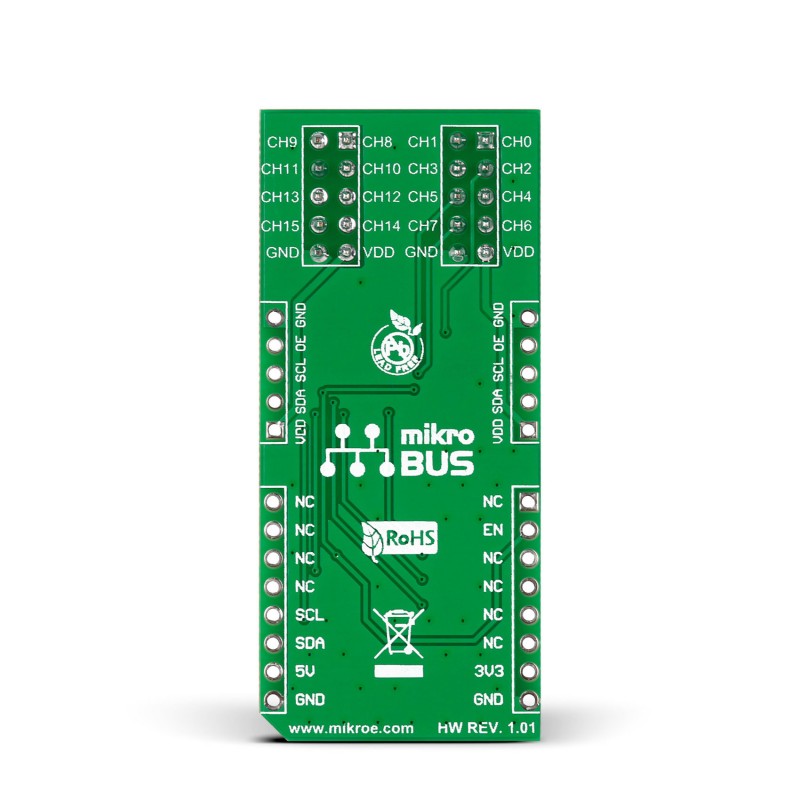

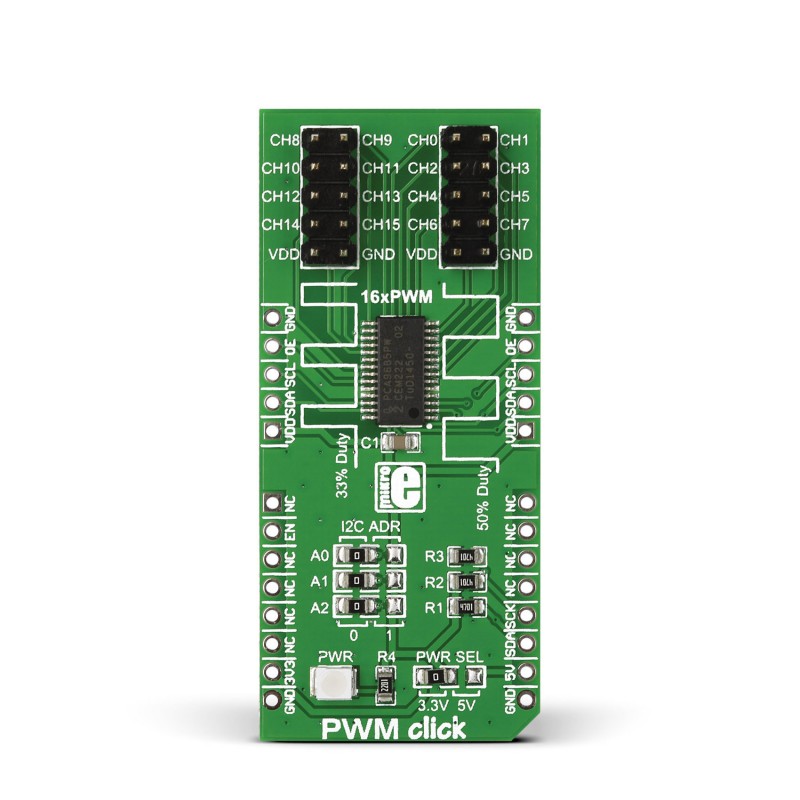

PWM click is a simple solution for controlling 16 PWM outputs through a single I2C interface. You can use it to control anything from a simple LED strip to a complex robot with a multitude of moving parts. The click board carries the PCA9685PW IC. The board has an additional set of pins that allow you to connect up to seven PWM clicks together (using three jumpers to specify a different I2C address for each one). This will allow you to get a total of 112 pwm outputs on a single I2C line. PWM click is designed to use either a 3.3V or 5V power supply.
Specification
| Type | PWM |
| Applications | Control 16 PWM outputs (or up to 112 if multiple PWM clicks are connected) through a single I2C interface. Ideal for robots, LED drivers, servo motors etc. |
| On-board modules | PCA9685PW IC |
| Key Features | Additional pinout for connecting multiple PWM clicks together |
| Key Benefits | 16 PWM outputs. Selectable I2C addresses |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
