MikroElektronika
Pressure 2 click
SKU: MIKROE-1880
₹ 7,249.00
Taxes included.
Shipping calculated at checkout.
Description

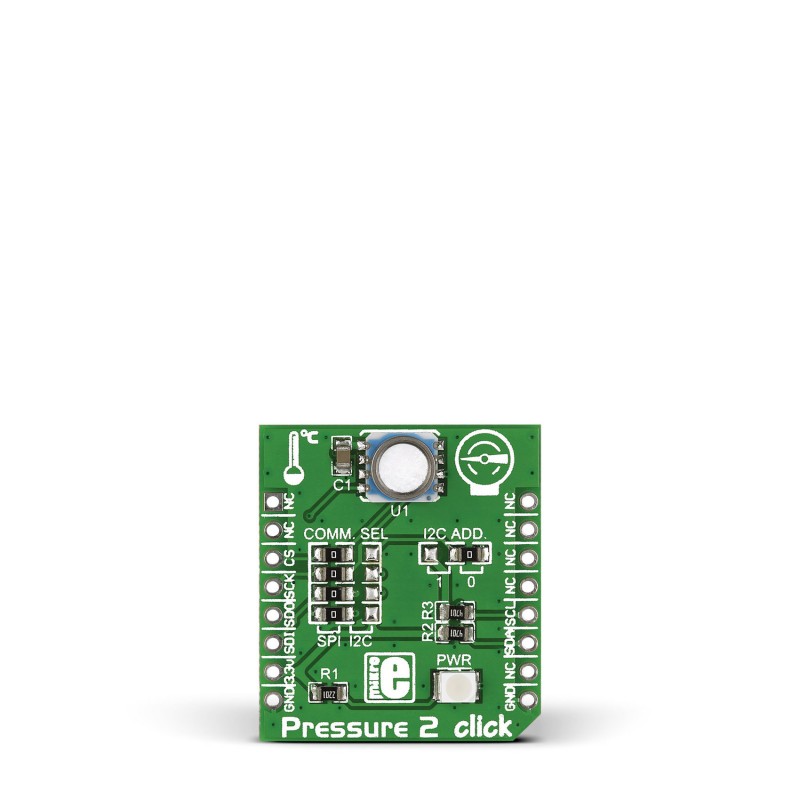

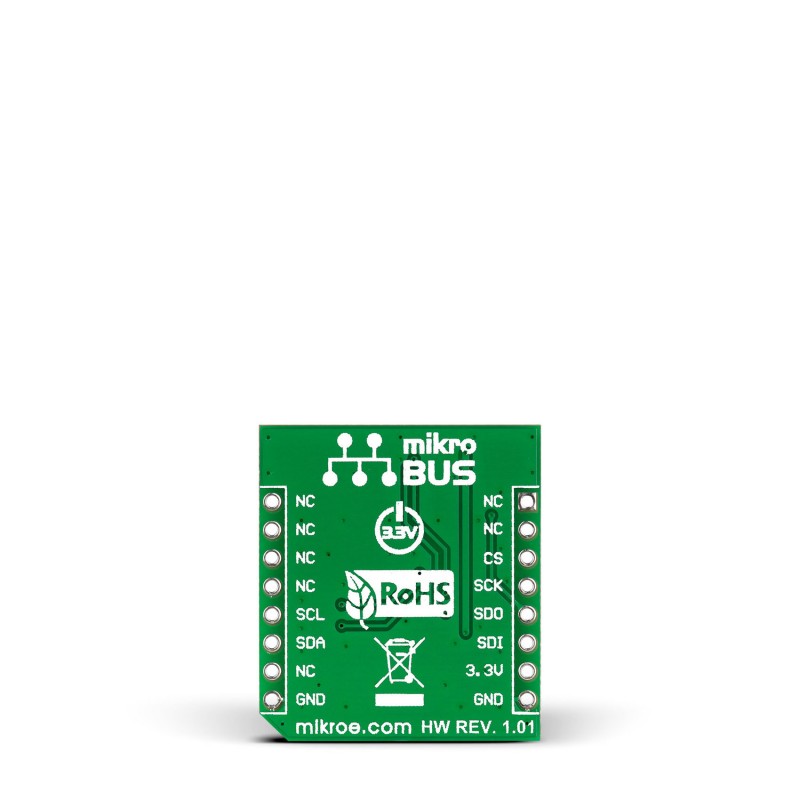

Pressure 2 click carries MS5803, a high resolution MEMS pressure sensor that is both precise and robust. Its measurement range is from 0 to 14 bars (with a resolution of up to 0.2 mbars), but because of the stainless steel cap enclosure, the sensor can withstand up to 30 bars of pressure. Pressure 2 click communicates with the target board MCU either through mikroBUS SPI or I2C lines, depending on the position in which the onboard jumpers are soldered.
Specification
| Type | Pressure,Altitude |
| Applications | Robust but precise pressure measurement systems, such as adventure watches and suchlike |
| On-board modules | MS5803, a high resolution MEMS pressure sensor |
| Key Features | 0-14 bars measurement range. Up to 0.2 mbar resolution, down to 1 ms conversion time |
| Key Benefits | Gel protected, antimagnetic stainless steel cap |
| Interface | I2C,SPI |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
