MikroElektronika

Pressure 2 click

Pressure 2 click

SKU:MIKROE-1880

Regular price Rs. 7,249.00
Regular price Sale price Rs. 7,249.00
Sale Sold out
Tax included.

Out of stock

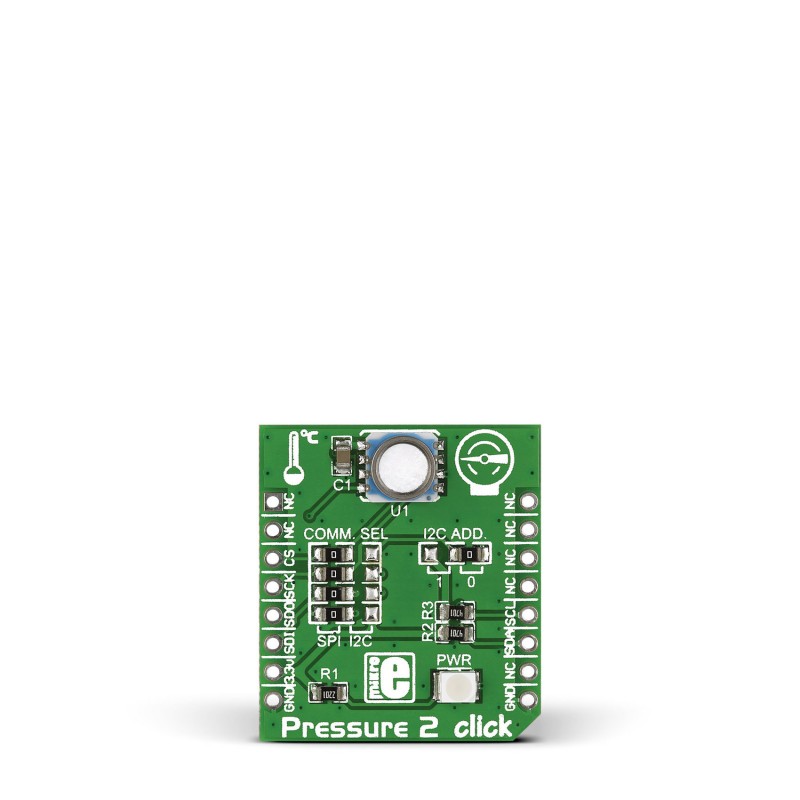

Pressure 2 click carries MS5803, a high resolution MEMS pressure sensor that is both precise and robust. Its measurement range is from 0 to 14 bars (with a resolution of up to 0.2 mbars), but because of the stainless steel cap enclosure, the sensor can withstand up to 30 bars of pressure. Pressure 2 click communicates with the target board MCU either through mikroBUS SPI or I2C lines, depending on the position in which the onboard jumpers are soldered.

Specification

Type Pressure,Altitude
Applications Robust but precise pressure measurement systems, such as adventure watches and suchlike
On-board modules MS5803, a high resolution MEMS pressure sensor
Key Features 0-14 bars measurement range. Up to 0.2 mbar resolution, down to 1 ms conversion time
Key Benefits Gel protected, antimagnetic stainless steel cap
Interface I2C,SPI
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
