MikroElektronika

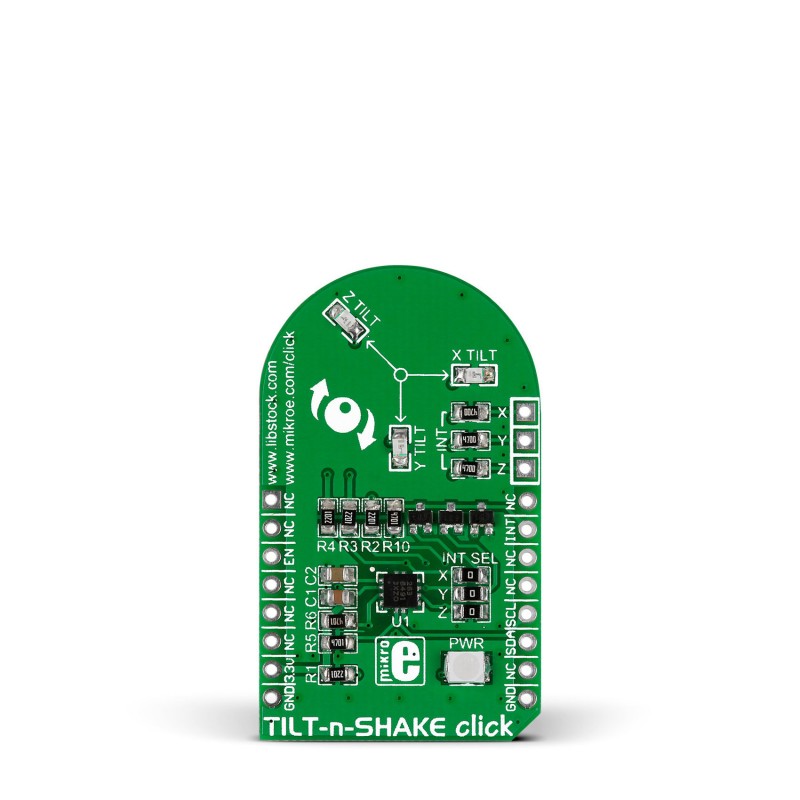

TILTnSHAKE Click
SKU: MIKROE-1853
₹ 1,999.00
Taxes included.
Shipping calculated at checkout.
Description
TILT-n-SHAKE click carries Freescale’s MMA8491Q IC. It’s a multifunctional 3-axis digital accelerometer that can also be configured as a 45-degree Tilt sensor. To use it as an accelerometer, keep the EN pin pulled to logic level high. The acceleration data will be outputted to the target MCU through mikroBUS™ I2C pins (SCL, SDA). The output time is about 700 microseconds, with a 14-bit resolution, ±8 full-scale range and 1 mg/LSB sensitivity. As a Tilt sensor, the click board needs only one output pin — INT (interrupt). Three onboard LEDs will also signal the tilt orientation. TILT-n-SHAKE click is designed to use a 3.3V power supply only.
Specification
| Type | Motion |
| Applications | Tamper and anti-teft detection. Also, remote controls and other accelerometer applications |
| On-board modules | Freescale’s MMA8491Q IC 3-axis digital accelerometer |
| Key Features | Integrated 45-degree Tilt sensor. 14-bit resolution, 1 mg/LSB sensitivity. ~700 µs output time |
| Key Benefits | Tilt sensor configurable with jumpers. Easy to implement |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
