MikroElektronika

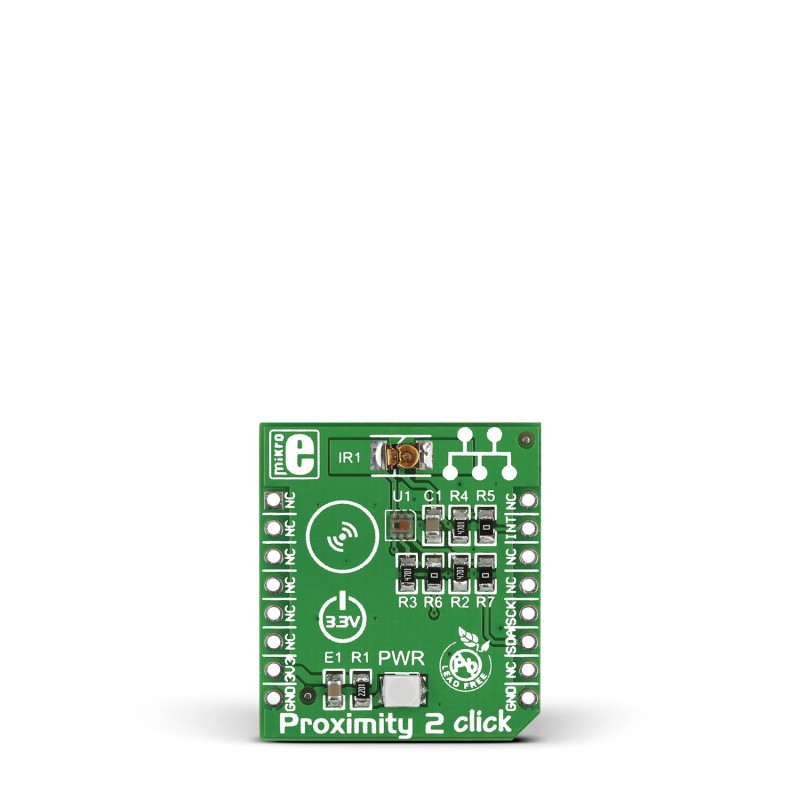

PROXIMITY 2 click
SKU: MIKROE-1818
₹ 1,999.00
Taxes included.
Shipping calculated at checkout.
Description
Proximity 2 click features MAX44000, an IC that integrates an ambient light as well as a proximity sensor. The chip consists of an array of photodiodes that convert light into current, which the internal circuitry then converts into a digital value. The light sensor has a dynamic range of 0.03 to 65.535 lux. The IR proximity detector is matched with an integrated IR LED driver (for the onboard high power infrared LED). Proximity 2 click communicates with the target board microcontroller through mikroBUS I2C (SCL, SDA), and INT lines. It’s designed to use a 3.3V power supply only.
Specification
| Type | Proximity |
| Applications | Consumer and industrial applications, mobile phones, digital camera, tablet PC application and many more |
| On-board modules | MAX44000 |
| Key Features | 2cm range of proximity sensor. Interrupt function |
| Key Benefits | Integrated light and proximity sensor |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
