ETH WIZ click
MIKROE-1718
₹ 1,999.00
Sale price
₹ 1,999.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description
Description

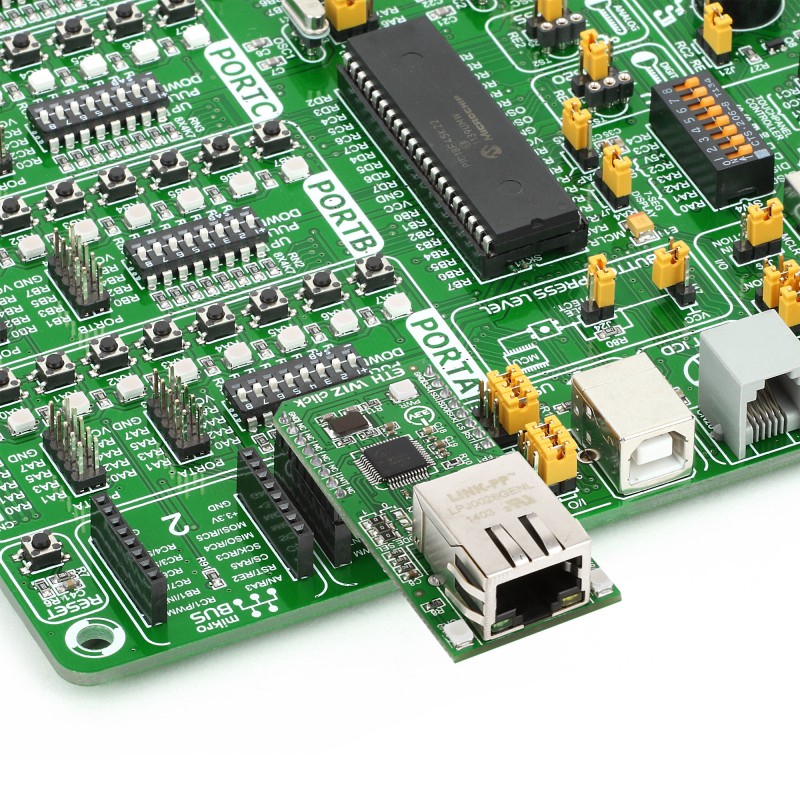

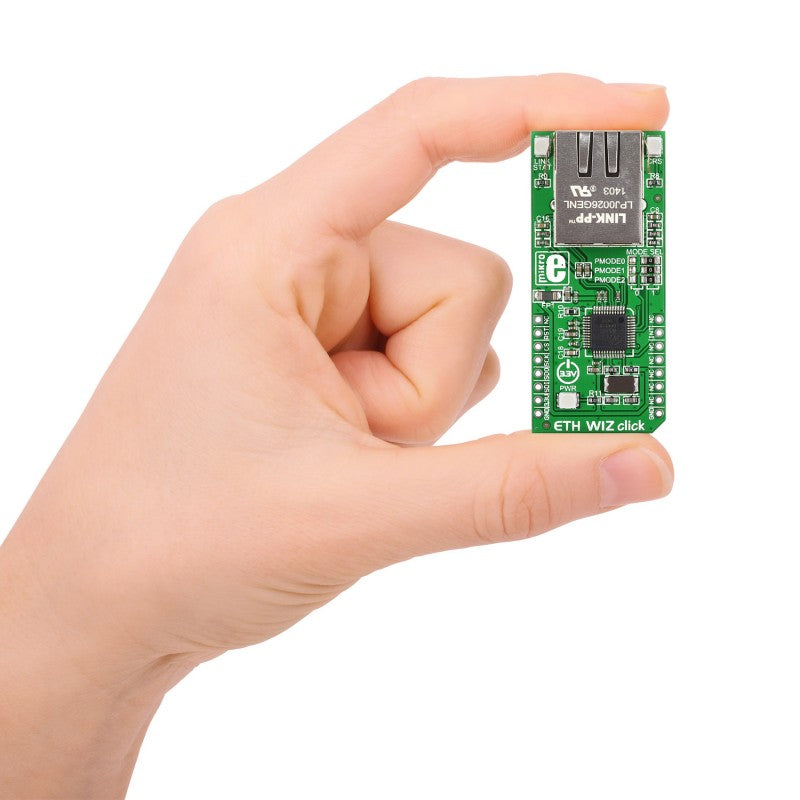

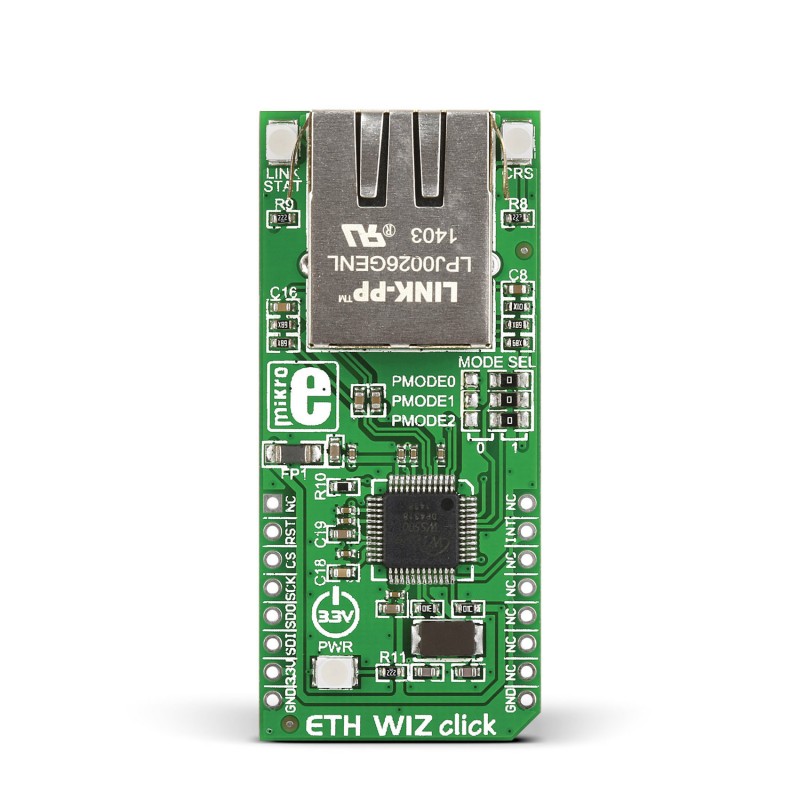

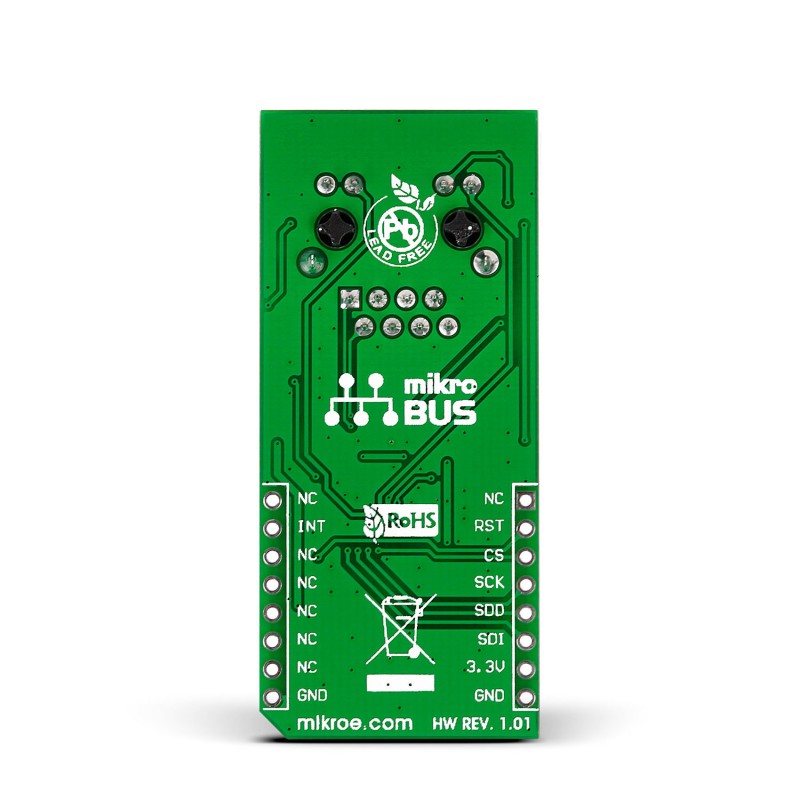

ETH Wiz click carries W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload engine, along with a standard RJ-45 connector. The W5500 module employs a variety of solutions to reduce the target MCU’s memory load and enable a stable and secure Internet connection. High speed network communications are realized through an 80 MHz SPI interface. The module has 32KB of internal memory for TX/RX buffers. Reduced power consumption is achieved with Wake on LAN and power down modes. Automatic handshaking, retransmit on collision and automatic rejection of erroneous packets are also supported.
Specification
| Type | Ethernet |
| Applications | Home network devices and all sorts of Embedded servers |
| On-board modules | W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller, standard RJ-45 connector |
| Key Features | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE supported. Wake on LAN and power down modes supported. 32KB of internal memory for TX/RX buffers |
| Key Benefits | Reduces target MCU memory load |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
