MikroElektronika
LDC1000 click
SKU: MIKROE-1583
₹ 3,679.00
Taxes included.
Shipping calculated at checkout.
Description
Description

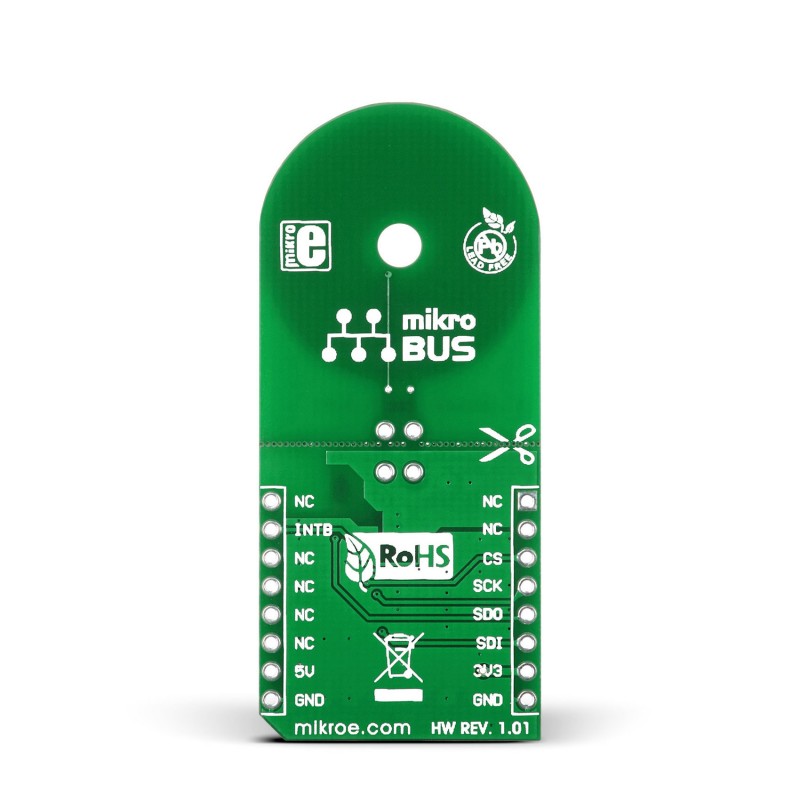

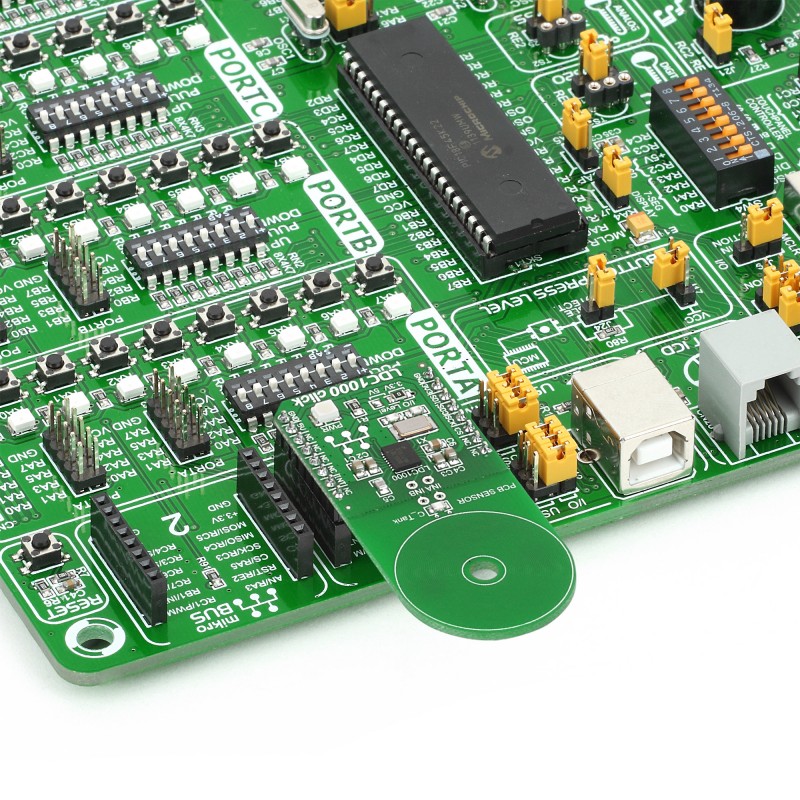

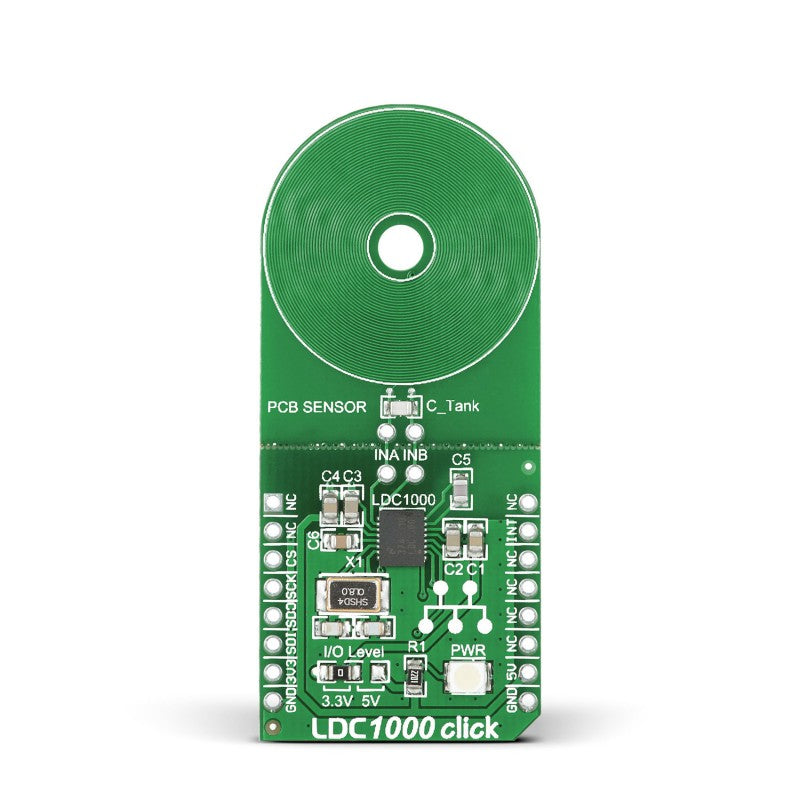

LDC1000 click carries the world's first inductance-to-digital converter IC, along with a detachable sensor (an LC tank comprising a 36-turn PCB coil and a 100pF 1% NPO capacitor). The LDC1000 IC has a sub-micron resolution in short range applications; the board is ideal for highly precise short range measurements of the position, motion or composition of conductive targets. Inductive sensing is highly reliable: harsh conditions don't hinder the performance of LDC1000 IC. Onboard INA and INB pins allow you to replace the provided detachable sensor and solder your own. LDC1000 click communicates with the target board through mikroBUS SPI (CS, SCK, MISO, MOSI) and INT lines. The board is designed to use either a 3.3V or a 5V power supply.
Specification
| Type | Inductance |
| Applications | Since any conductor can be employed as a target, LDC1000 allows for great creativity in embedded design. High-resolution short range inductive sensing is reliable even in harsh conditions (in the presence of dust, dirt, oil, etc.) |
| On-board modules | Inductance-to-digital converter IC, along with a detachable sensor (an LC tank comprising a 36-turn PCB coil and a 100pF 1% NPO capacitor) |
| Key Features | Sub-micron resolution in short range applications |
| Key Benefits | Enables you to include highly reliable inductive sensing technology in your design |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |

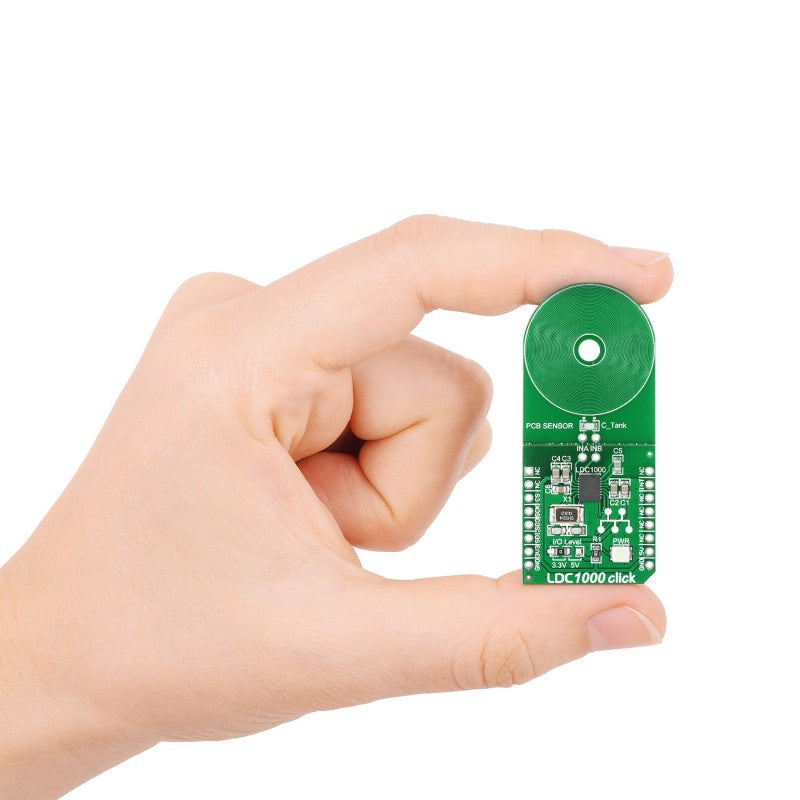

| Click board size | L (57.15 x 25.4 mm) |
