MikroElektronika
MPU IMU click
SKU: MIKROE-1577
₹ 4,099.00
Taxes included.
Shipping calculated at checkout.
Description

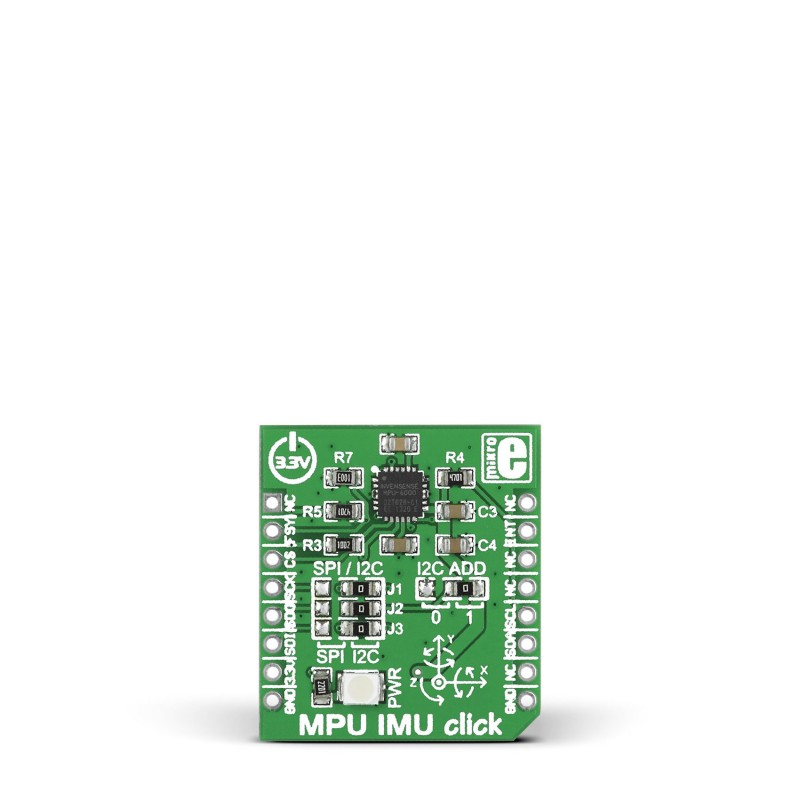

MPU IMU click carries the MPU-6000 integrated 6-axis motion tracking device that combines a 3-axis gyroscope, a 3-axis accelerometer, and a DMP (Digital Motion Processor) into a single small chip. The gyroscope has a sensitivity up to 131 LSBs and a full-scale range of ±250, ±500, ±1000, and ±2000dps. The accelerometer has a programmable full scale range of ±2g, ±4g, ±8g and ±16g. It communicates with the target board through SPI, I2C, RST and INT lines. The board is designed to use 3.3V power supply only. A LED diode serves as a power indicator.
Specification
| Type | Motion |
| Applications | This board is ideal for adding motion tracking functionalities to your device. Applications include 3-D remote controls, motion based game controllers, wearable fitness and sports gadgets, toys etc. |
| On-board modules | MPU-6000 integrated 6-axis motion tracking device that combines a 3-axis gyroscope, a 3-axis accelerometer, and a DMP (Digital Motion Processor) |
| Key Features | DMT supports 3D MotionProcessing and gesture recognition algorithms |
| Key Benefits | User programmable gyroscope and accelerometer |

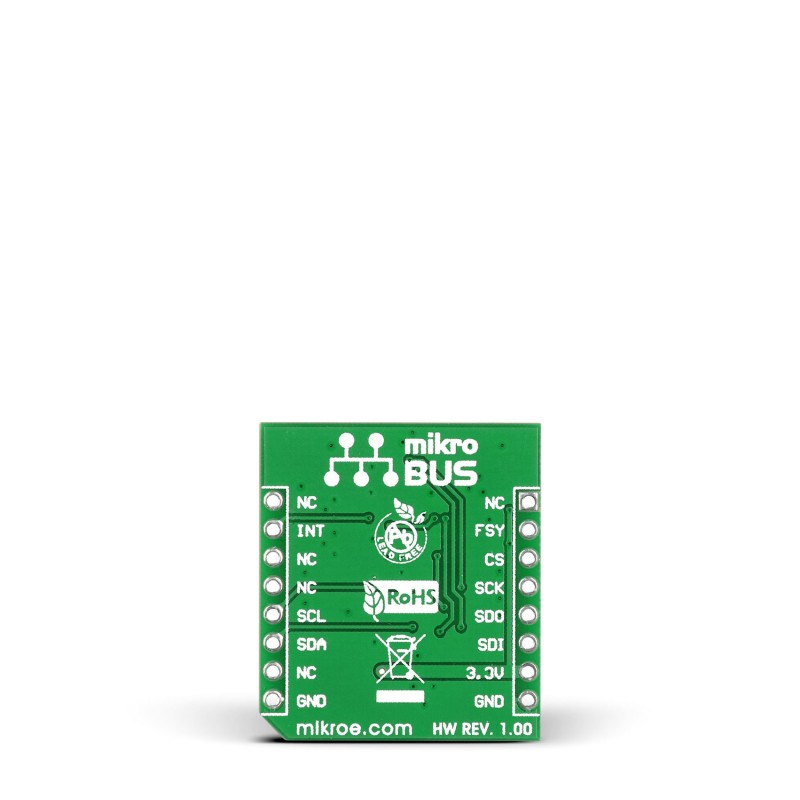

| Interface | SPI,GPIO,I2C |
| Input Voltage | 3.3V |

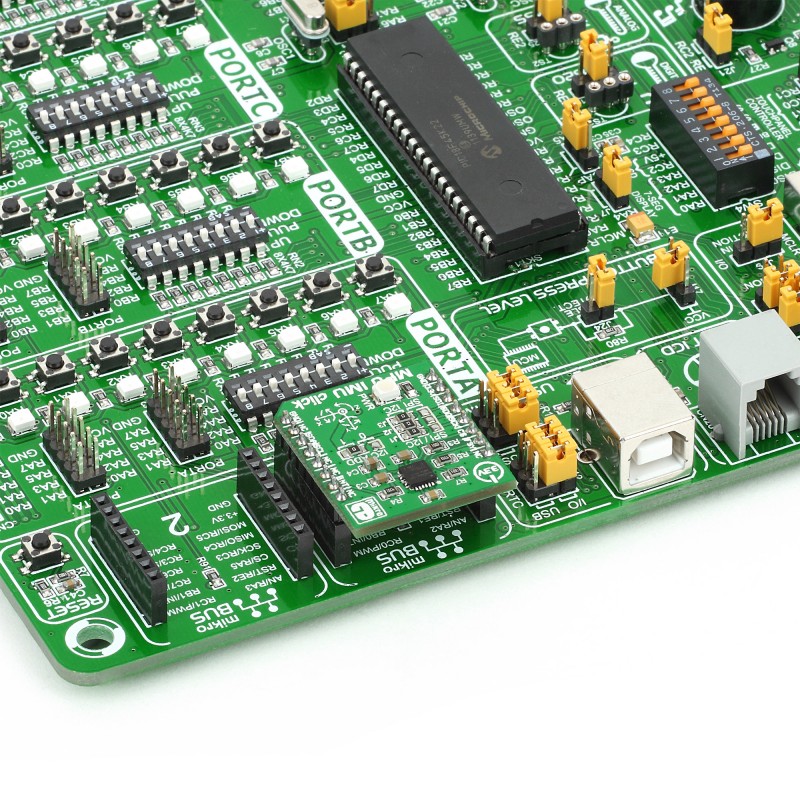

| Compatibility | mikroBUS |

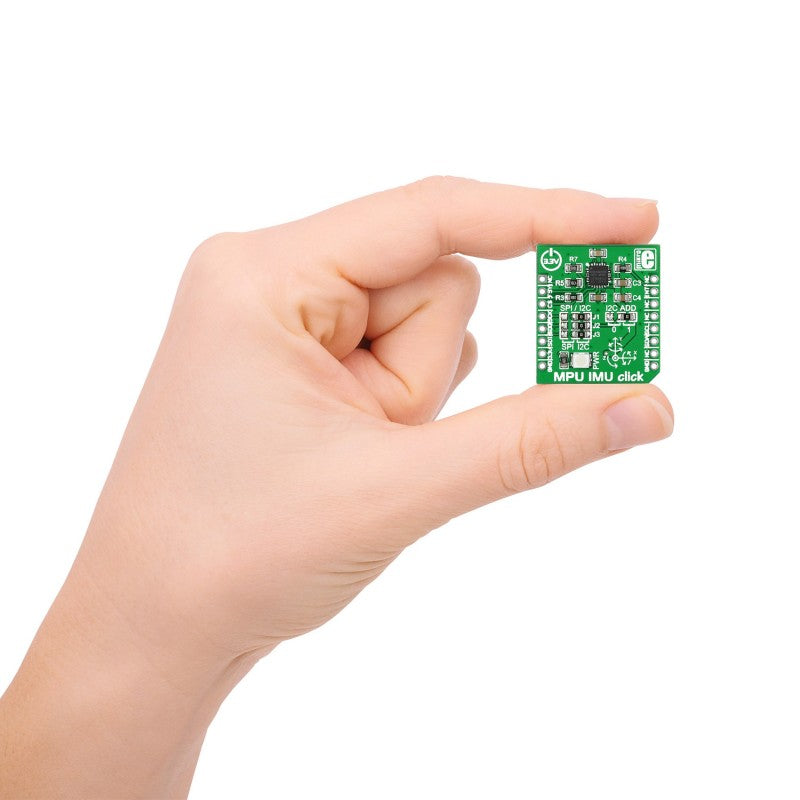

| Click board size | S (28.6 x 25.4 mm) |
