MikroElektronika
Proximity click
SKU: MIKROE-1445
₹ 1,789.00
Taxes included.
Shipping calculated at checkout.
Description

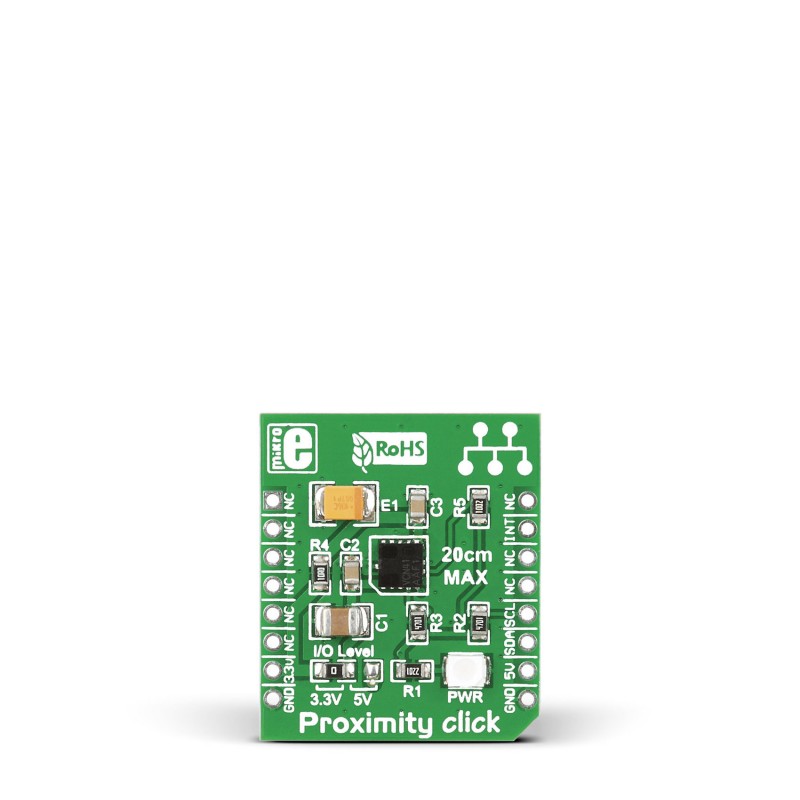

Proximity click features VCNL4010 proximity and ambient light sensor. It combines an infrared emitter and PIN photodiode for proximity measurement with a range of up to 20cm. The VCNL4010 has a 16bit resolution which ensures excellent cross talk immunity. It can also be used as ambient light sensor. Proximity click™ communicates with the target board microcontroller via mikroBUS™ I2C (SDA, SCL) and INT lines. The board is designed to use 3.3V power supply and 3.3V or 5V I/O voltage levels.
Specification
| Type | Proximity |
| Applications | This board is ideal for consumer and industrial applications, mobile phones, digital camera, tablet PC application and many more |
| On-board modules | VCNL4010 proximity and ambient light sensor |
| Key Features | Integrated IR emitter, ambient light sensor, proximity sensor, and signal conditioning IC |
| Key Benefits | Interrupt function. Low stand by current consumption: 1.5 μA |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
