EVE Click
MIKROE-1430
₹ 4,099.00
Sale price
₹ 4,099.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description

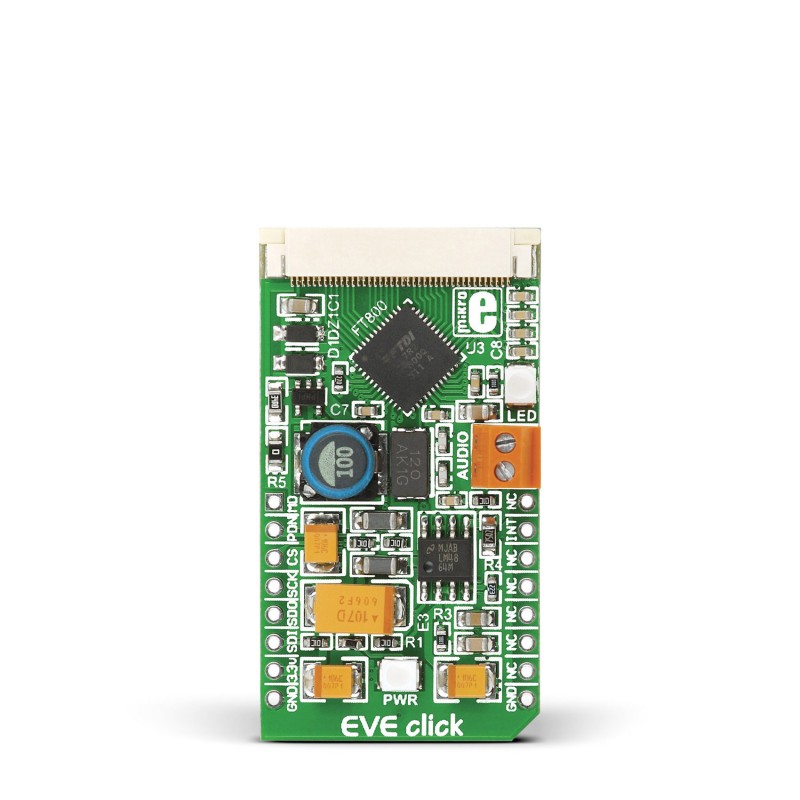

EVE Click is a display controller board in mikroBUS form factor. It features state-of-the-art FT800Q graphics controller which integrates display, audio and touch onto a low cost, easy-to-use, single-chip solution. With 12 embedded widgets, transparency and anti-aliasing support, PWM backlight dimming control and much more, FT800Q brings fast and visually stunning graphics even to 8-bit MCUs with little Flash and RAM. It communicates with a microcontroller over SPI interface (up to 30 MHz). EVE click contains flat cable connector, LM4864 audio amplifier, LED diode as well as screw terminals. The board is designed to use 3.3V power supply only.
Specification
| Type | TFT |

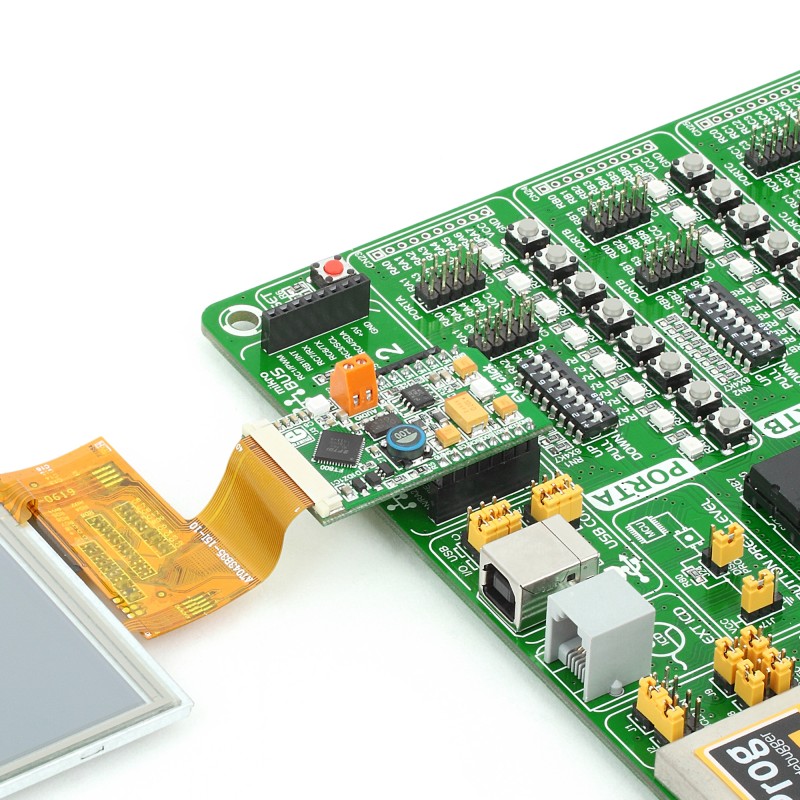

| Applications | EVE click helps you to bring awesome graphics and drive large 4.3” displays even with 8-bit MCUs. It has lots of excellent features and simple interface |
| On-board modules | FT800Q graphics controller |
| Key Features | 40-pin flat cable connector for 4.3” touch screen on-board. Audio amplifier with audio connector provided for mono sound output |
| Key Benefits | FT800Q combines display, audio and touch-screen features |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |

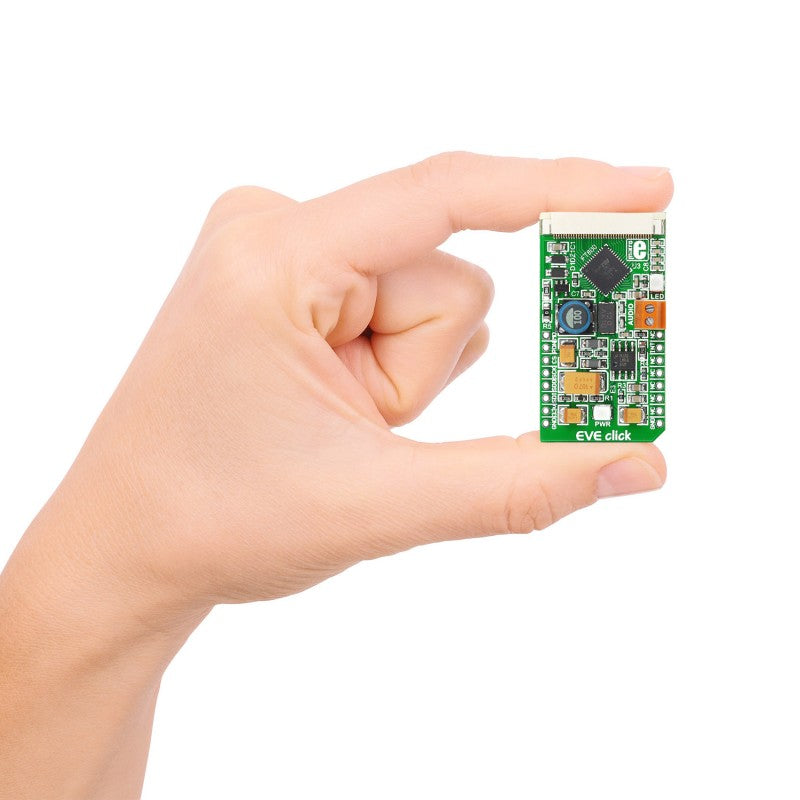

| Click board size | M (42.9 x 25.4 mm) |
