MikroElektronika
4-20 mA R click
SKU:
MIKROE-1387
₹ 2,729.00
Taxes included.
Shipping calculated at checkout.
Description

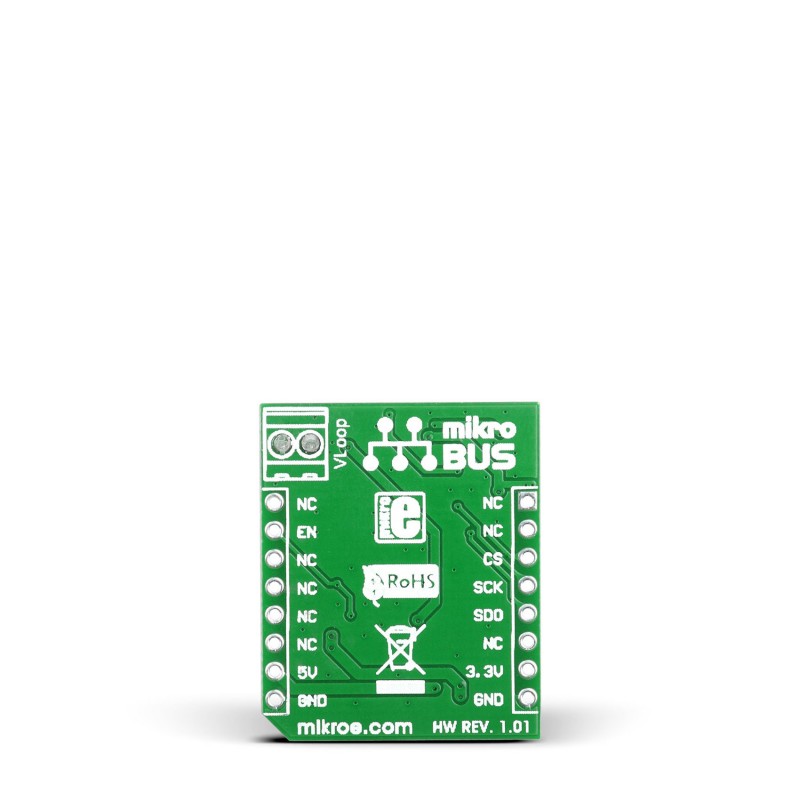

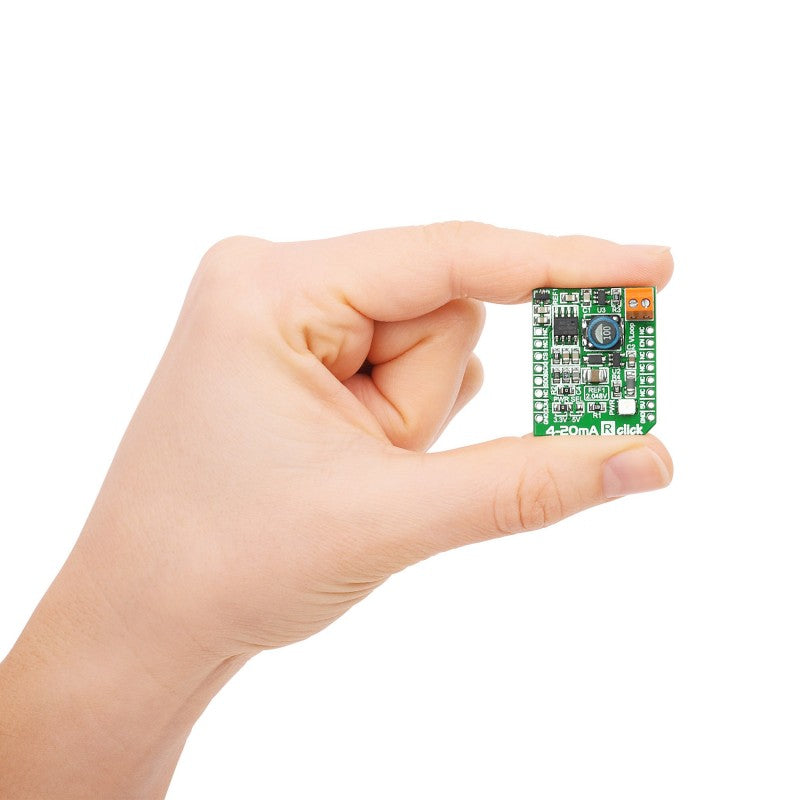

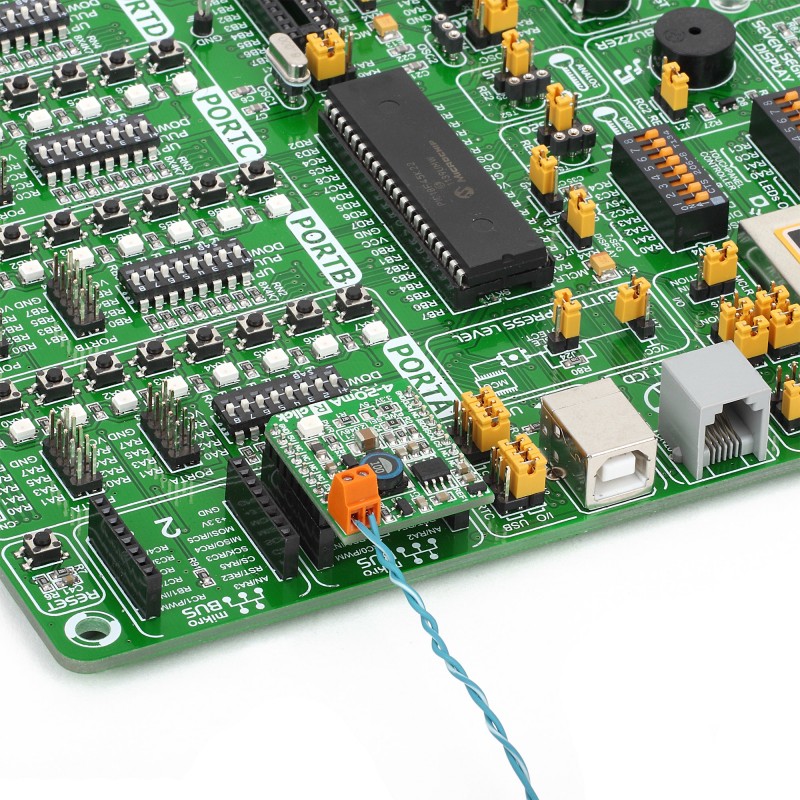

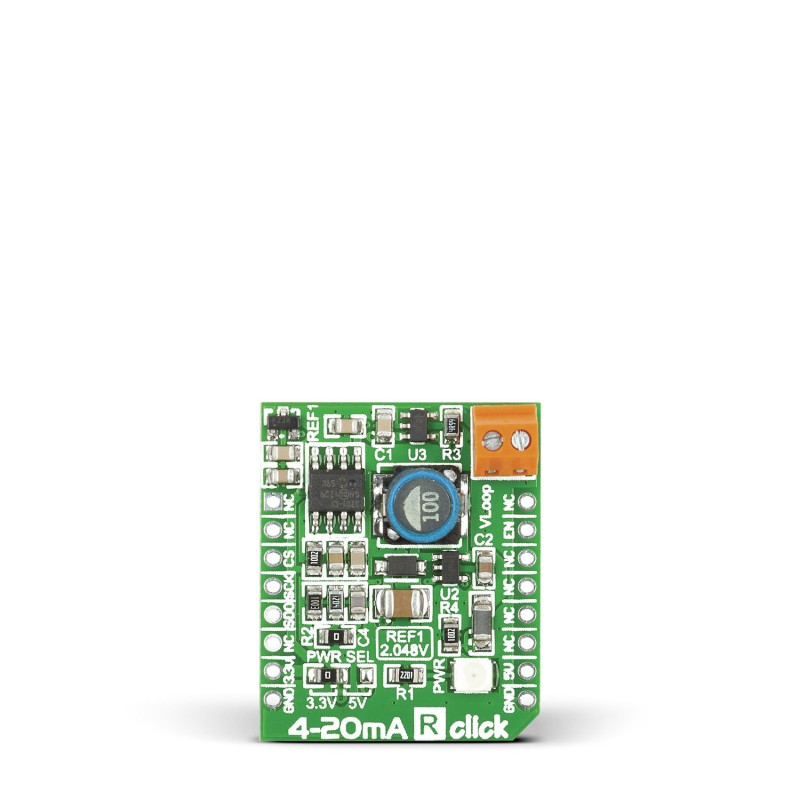

4-20mA R Click is an add-on board in mikroBUS form factor which serves as a receiver in a 4-20mA current loop standard. It features INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter. It receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V). This voltage is converted into a 12-bit data signal in the MCP3201 A/D converter and sent via mikroBUS™ SPI lines. Together with 4-20mA T Click™ this board forms a complete 4-to-20mA current loop standard. It is designed to use either 3.3V or 5V power supply.
Spcification
| Type | Current |
| Applications | Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU |
| On-board modules | INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter |
| Key Features | The board receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V) |
| Key Benefits | Compact design with clear and depictive silk screen markings |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
