MikroElektronika

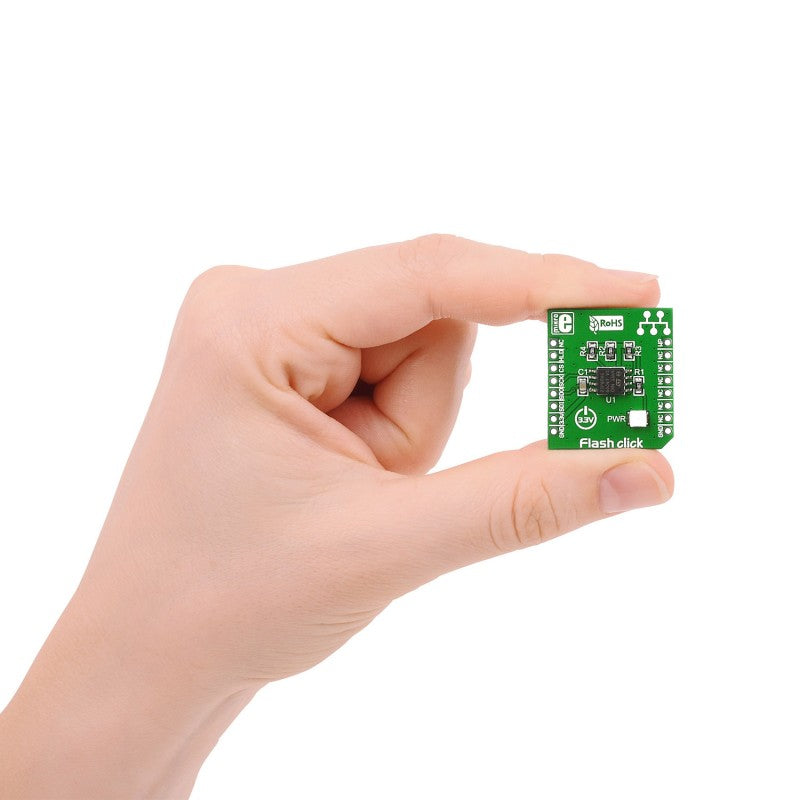

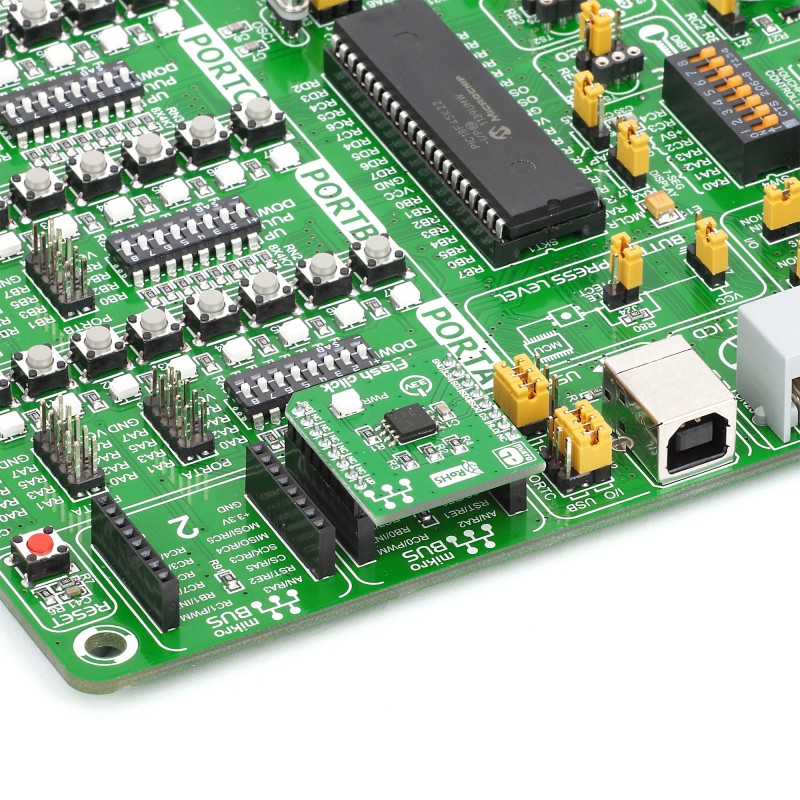

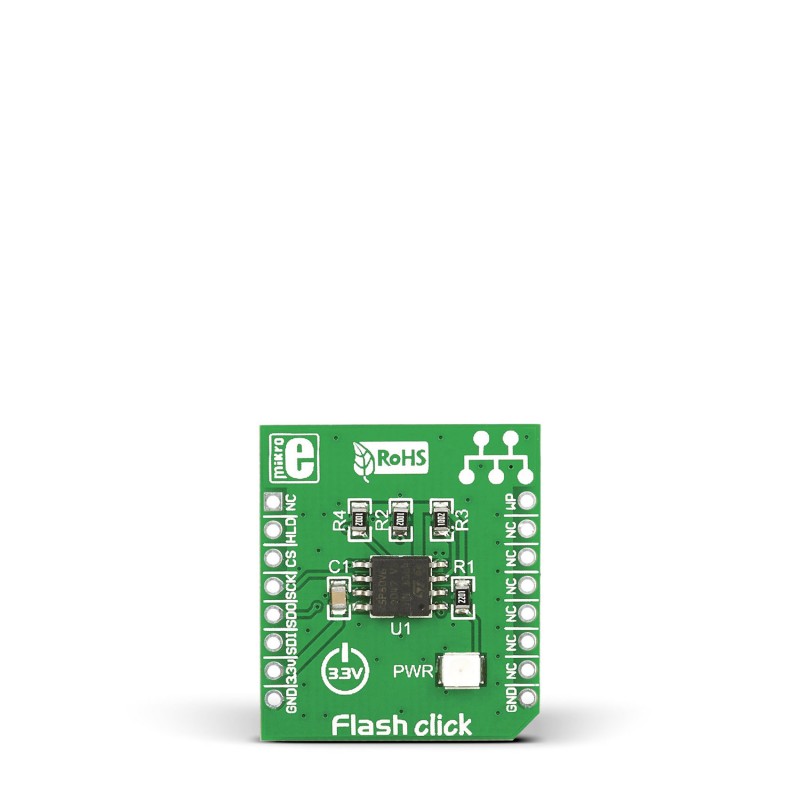

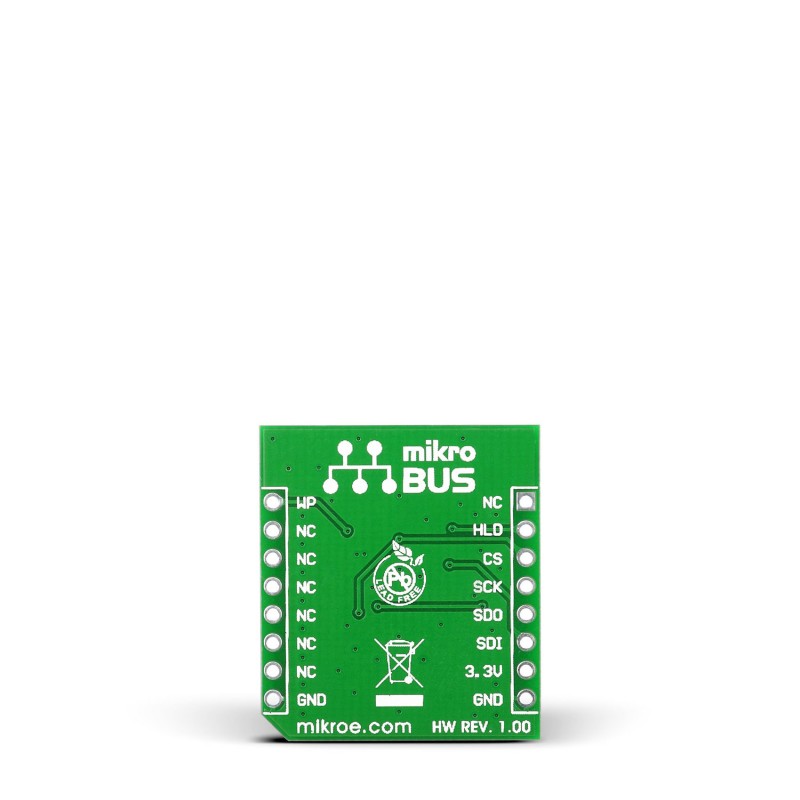

Flash Click
SKU: MIKROE-1199
₹ 1,049.00
Taxes included.
Shipping calculated at checkout.
Description
Flash Click is an accessory board in mikroBUS form factor. It’s a compact and easy solution for adding flash memory to your device. It features EN25Q80B - 8Mb serial Flash memory module with advanced hardware write protection mechanisms. It supports high-performance commands for clock frequency up to 75MHz. Memory is divided into 16 sectors, each containing 256 pages. Flash Click™ communicates with the target board via SPI interface. The board is designed to use 3.3V power supply only. It has a LED diode (GREEN) that indicates the presence of power supply.
Specification
| Type | Flash |
| Applications | Board is ideal as a mass storage option in multimedia devices, drives, optical and printing devices |
| On-board modules | EN25Q80B - 8Mb serial Flash memory module |
| Key Features | Memory is devided into 16 sectors, each containing 256 pages. Each page is 256 bytes wide. |
| Key Benefits | High performance (104MHz clock rate). Low power consumption (10 mA typical active current; 1 μA typical power down current) |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
