OPTO click
SKU: MIKROE-1196
₹ 2,209.00
Taxes included.
Shipping calculated at checkout.
Description

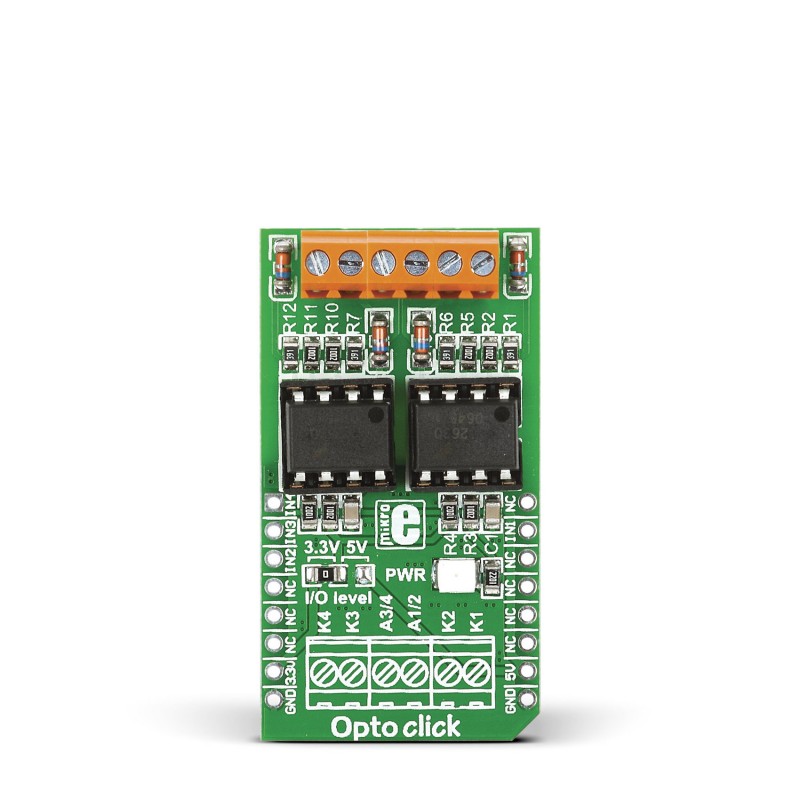

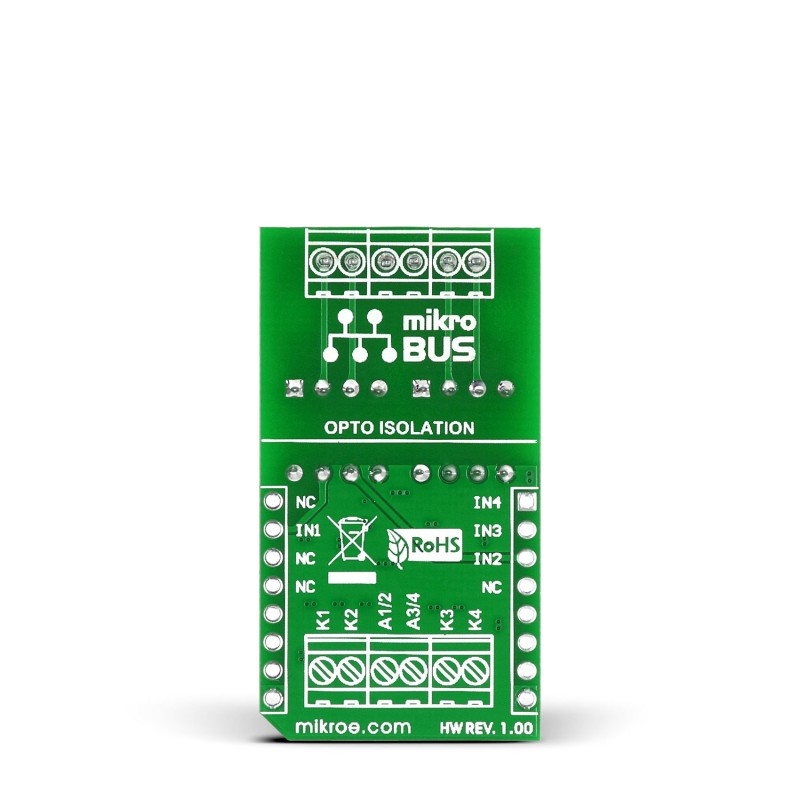

OPTO Click is an accessory board in mikroBUS form factor. It features two VO2630 dual channel, high speed optocoupler modules. They enable high speed (10 MBit/s) data transfer between it’s input and output with galvanic isolation. Optocouplers are connected to four lines (INT, CS, RST and AN) on mikroBUS™ socket. Board features six screw terminals for easier connections and a LED indicator of power supply. SMD jumper is available for selecting whether board will be operating on 3.3V or 5V power supply.
Specification
| Type | Optocoupler |
| Applications | OPTO Click is perfect for PLC and ATE I/O isolation, switching power supplies, computer and microprocessor peripheral interface and more |
| On-board modules | VO2630 dual channel, high speed optocoupler |
| Key Features | High speed – 10 MBit/s. |
| Key Benefits | Optocouplers are easily replaceable because of DIP8 sockets. |
| Interface | GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |

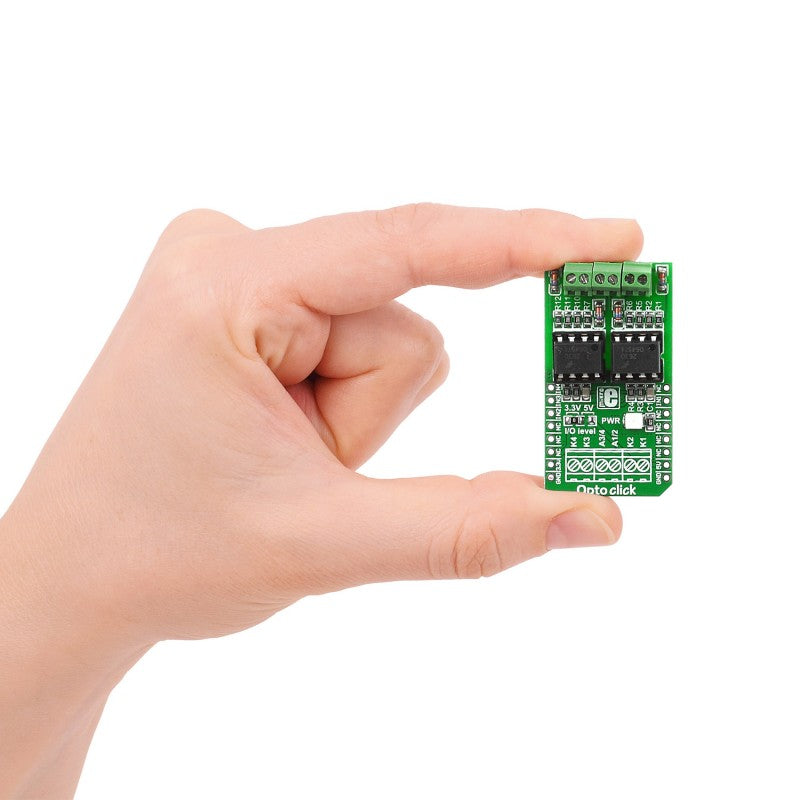

| Click board size | L (57.15 x 25.4 mm) |
