Accel click
MIKROE-1194
₹ 1,999.00
Sale price
₹ 1,999.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description

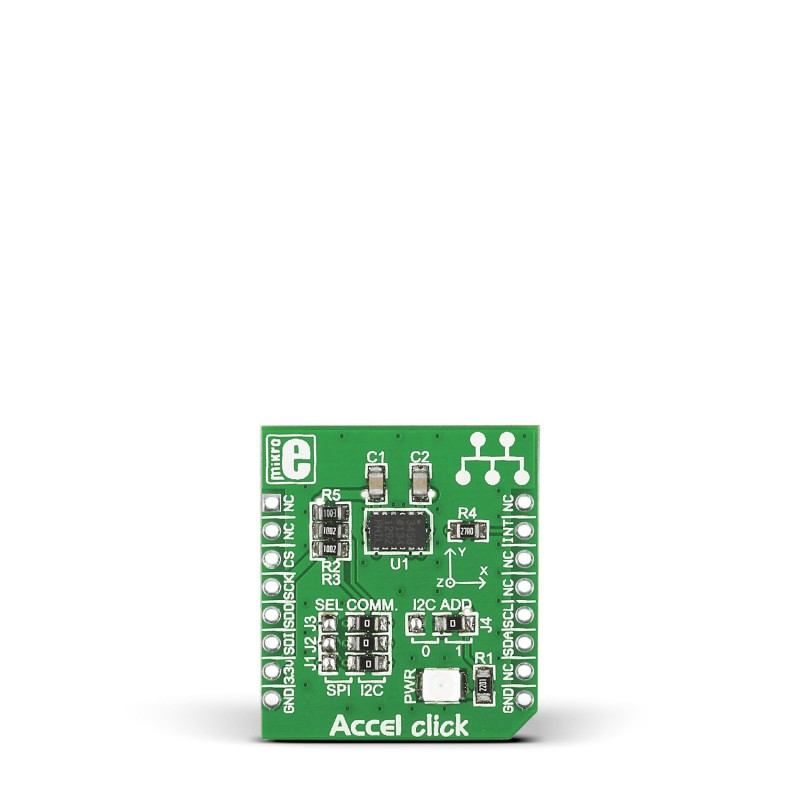

Accel Click is an accessory board in mikroBUS form factor. It features ADXL345 3-axis accelerometer module with ultra-low power and high resolution (13-bit) measurement. Module supports several sensing functions such as single/double tap detection, activity/inactivity monitoring, free-fall detection etc. It has memory management system with a 32-level FIFO buffer to store data with minimized host processor activity. Board is designed to use 3.3V power supply only.
Specification
| Type | Motion |
| Applications | Board is ideal for mobile devices, medical and industrial instrumentation, navigation devices, hard drive protection and more. |
| On-board modules | ADXL345 3-axis accelerometer |
| Key Features | Ultra low power consumption: 40 µA in measurement mode and 0.1 µA in standby mode. Selectable measurement range of ±2 g, ±4 g, ±8 g, or ±16 g |
| Key Benefits | High resolution enables measurement of inclination changes less than 1.0°. Embedded FIFO technology minimizes host processor load |
| Interface | SPI,GPIO,I2C |
| Input Voltage | 3.3V |
| Compatibility | mikroBUS |

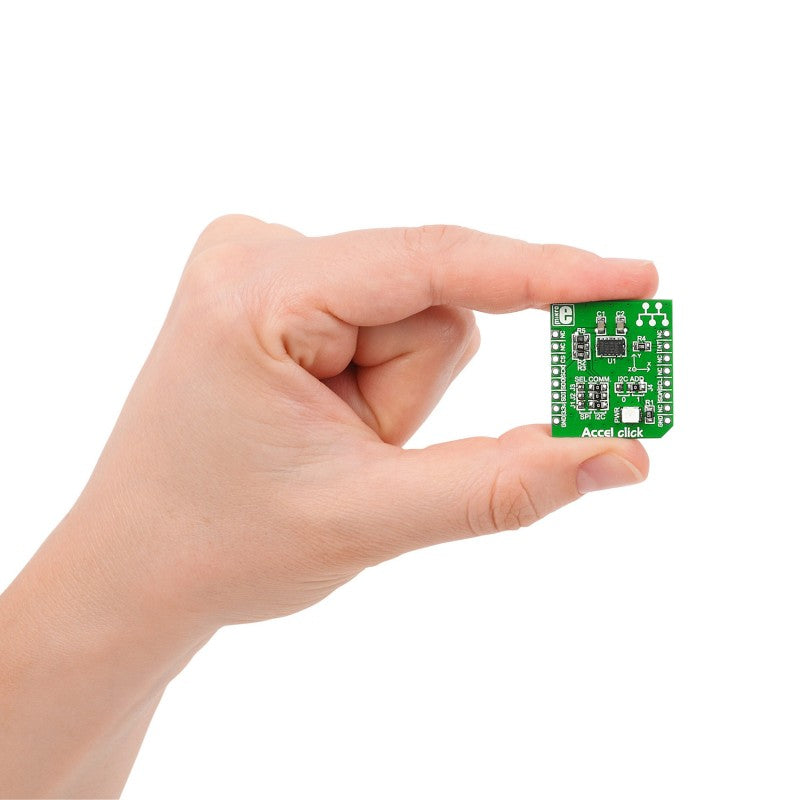

| Click board size | S (28.6 x 25.4 mm) |
