MCC USB-231 16-bit, 50 kS/s Multifunction DAQ Device

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-231 and USB-234 feature 8 SE/4 DIFF analog inputs, 16-bit resolution, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter.

USB-231 features a 50 kS/s sample rate.

USB-234 features a 100 kS/s sample rate.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.

Features:

• 8 SE/4 DIFF analog inputs
• 16-bit resolution
• USB-231: 50 kS/s sample rate
• USB-234: 100 kS/s sample rate
• ±10 V input range
• Two 16-bit analog outputs
• Eight digital I/O
• One counter input
• No external power required

• Product Compliance:
  • HTC: 8471.80.9000
  • ECCN: EAR99

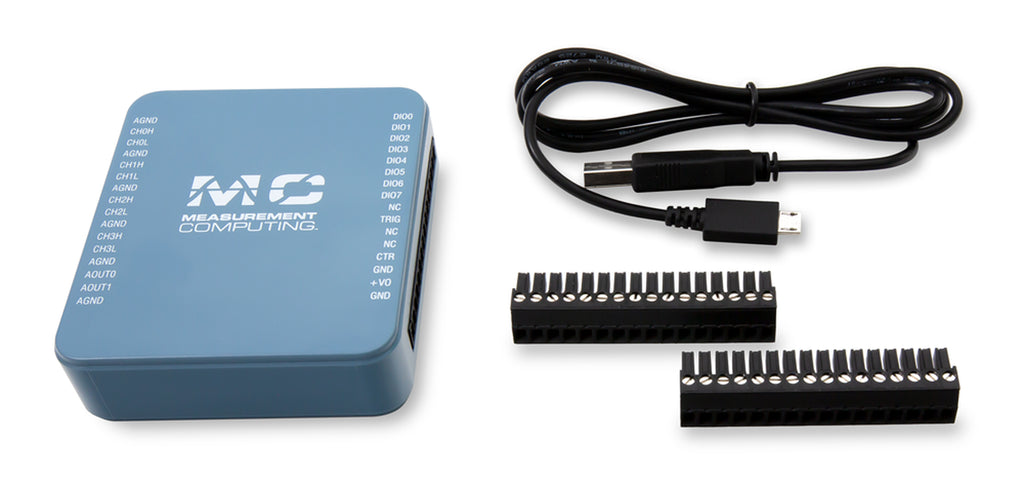

Included:

• USB-231 or USB-234
• USB cable (micro-USB type B)
• Two screw terminal connector plugs
• Printed insert: DAQami Quick Start
• MCC packaging assembly/foam, etc.

Software:

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.

DAQami and DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, and Python™.
