OAK-FFC-PoE-4P

Description

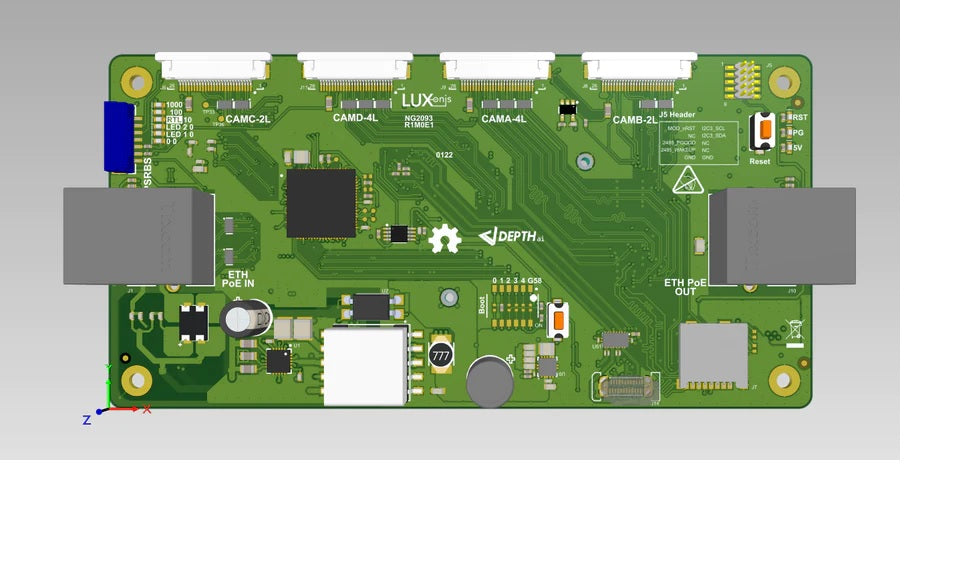

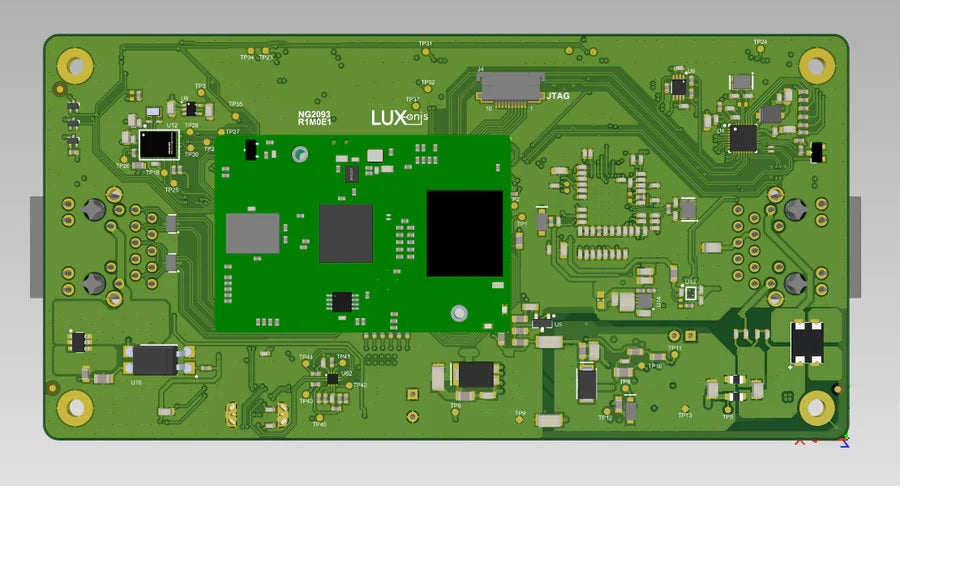

The OAK-FFC-PoE-4P is a four-socket, Power-over-Ethernet DepthAI baseboard for developers building networked, modular camera systems on the Luxonis 2099 SoM.

Key highlights

• Four FFC camera sockets supporting FFC Gen2 and Arducam DepthAI camera modules.
• Power-over-Ethernet passthrough power source with 1000BASE-T ethernet for data.
• BNO085/86 IMU onboard.
• Luxonis 2099 SoM interface with user-selectable boot configuration switches.
• Micro SD and USB 3.1 Gen1 Type-C connectivity.

Specifications

• Support for FFC Gen2 and Arducam DepthAI camera modules
• 4 FFC camera sockets
• Interface for Luxonis 2099 SoM
• USB 3.1 Gen1 Type-C
• Passthrough Power-over-Ethernet (PoE) power source
• 1000BASE-T ethernet for data
• BNO085/86 IMU
• Header access for 2099 SoM 1.8V Aux Signals (I2C, Module Reset)
• Micro SD connector for DepthAI SoM 3.3V SDIO
• Onboard PCIe ref clk for BW2099, PCIe/Ethernet bridge, and Gigabit Ethernet Switch
• User-selectable BW2099 boot configuration switches

In the box

OAK-FFC-PoE-4P board. Note: beta store products might be hand calibrated (not factory calibrated), resulting in a less accurate depth map.

Documentation & resources

Full hardware docs and the DepthAI SDK are available from Luxonis.
