OAK-D Pro W
Description

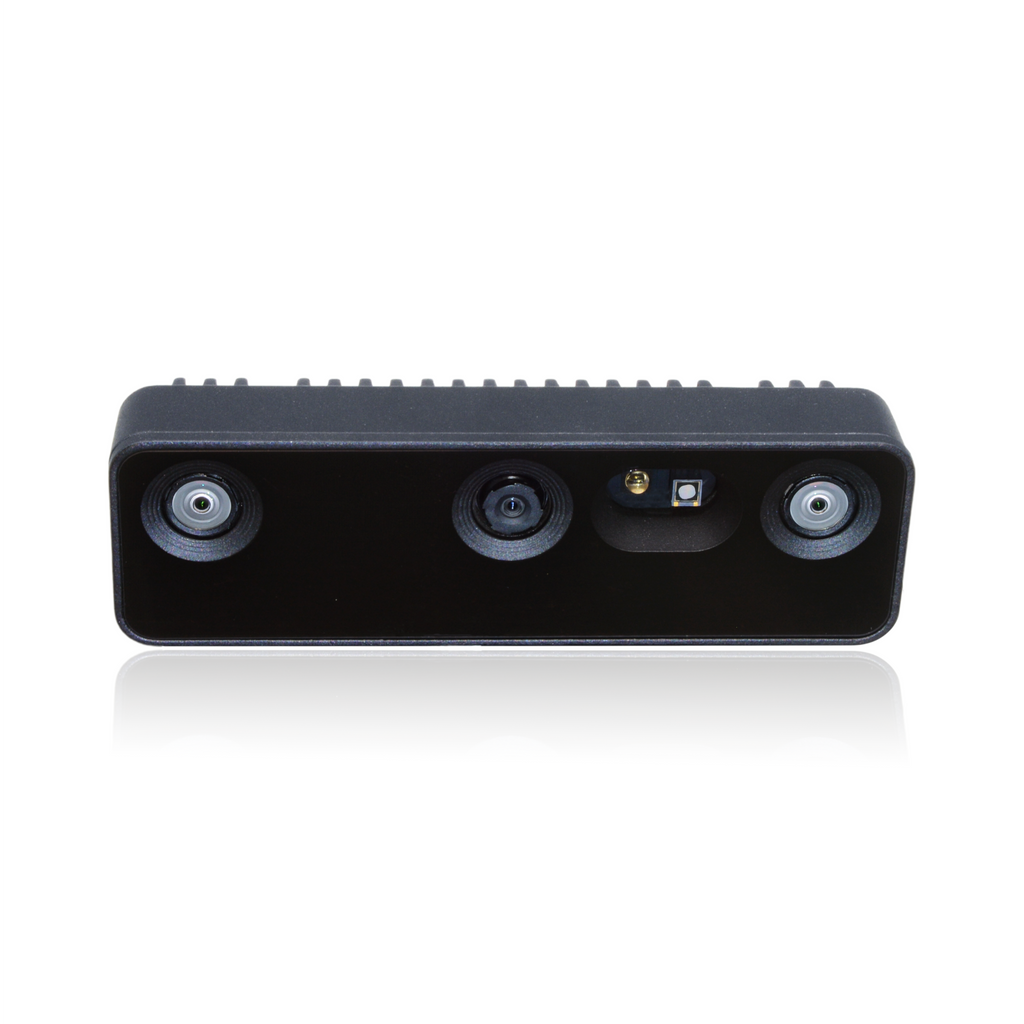

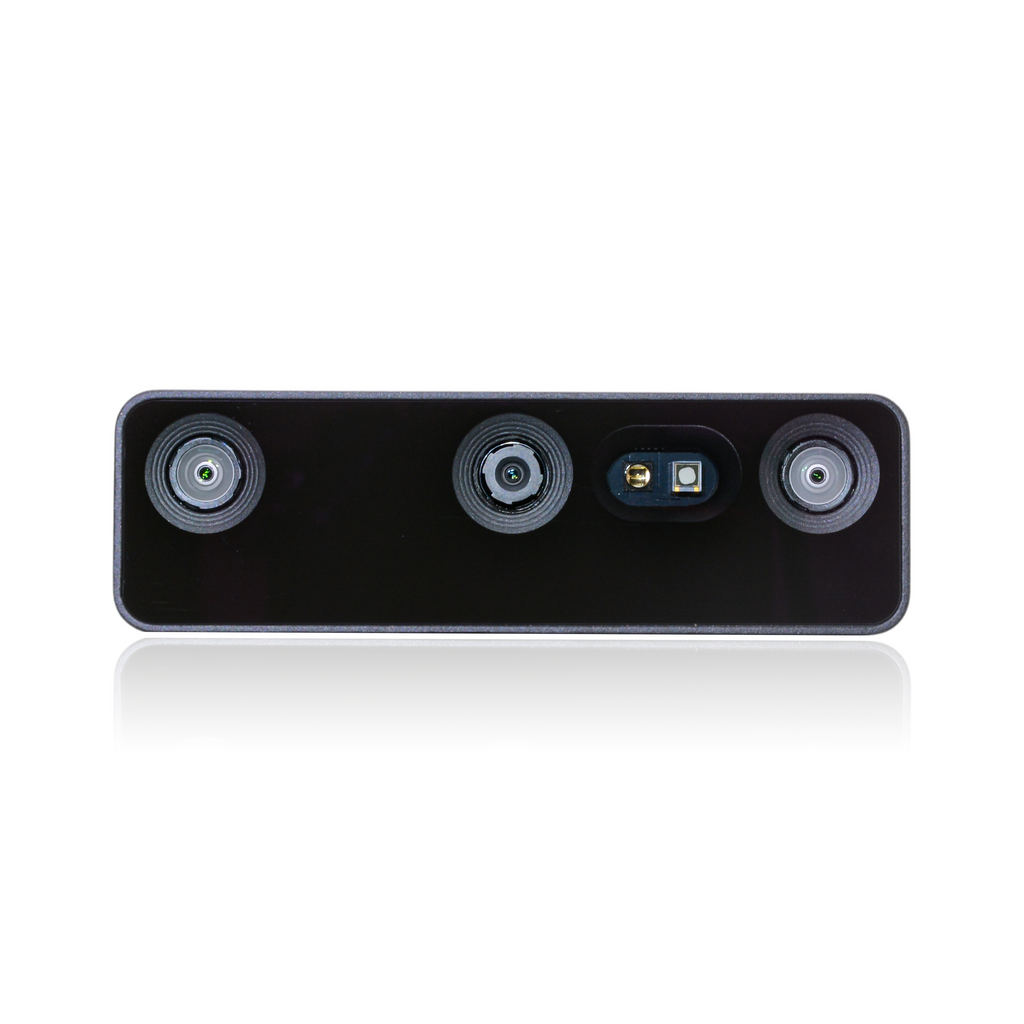

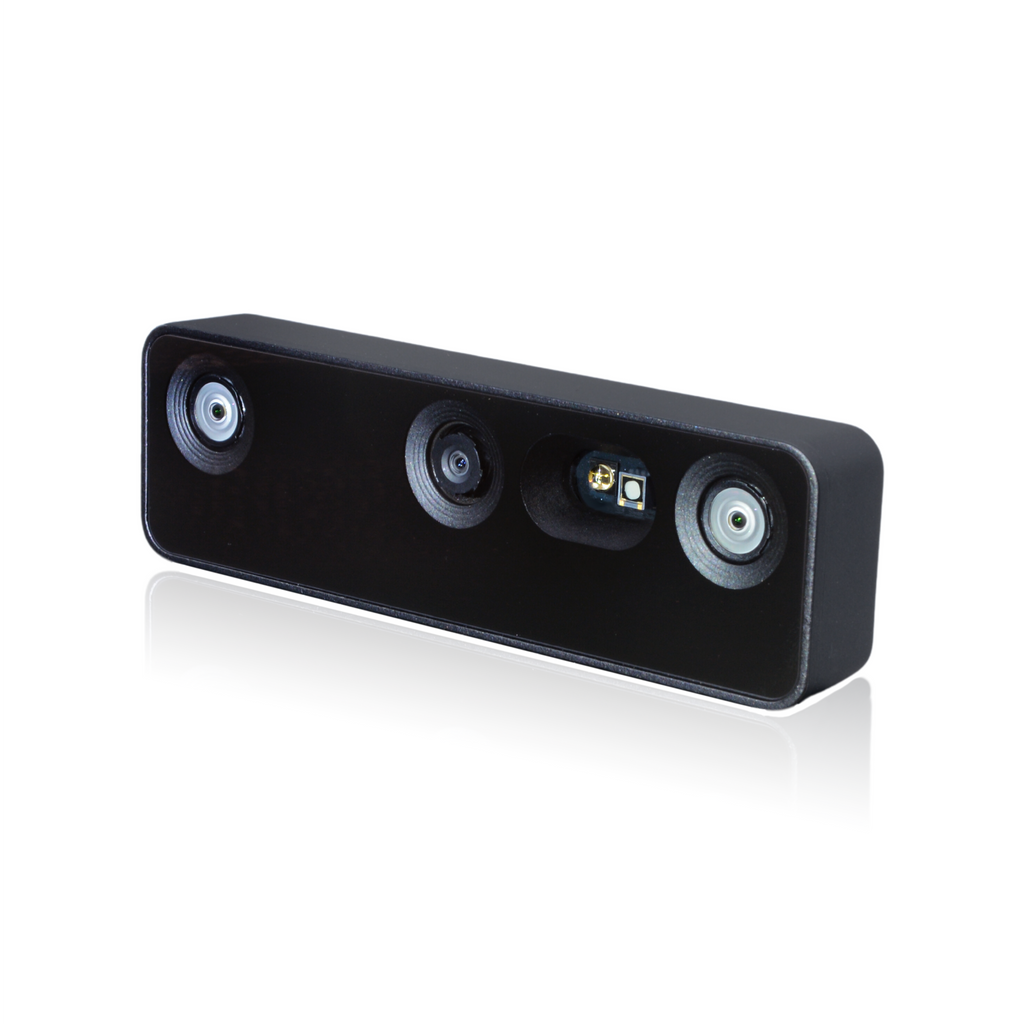

The OAK-D Pro W is a Series 2 OAK depth camera with wide field-of-view cameras, an IR laser dot projector for active stereo, and an IR illumination LED for night vision. It is built for developers and integrators who need reliable spatial AI and depth perception across wide scenes, including low-texture surfaces and low-light environments.
Key highlights
- Wide FOV optics: stereo pair up to 150° DFOV to capture more of the scene in a single frame.
- Active stereo: Ams Belago1.1 IR laser dot projector casts 4700 dots to improve depth on blank walls, floors and other low-texture surfaces.
- Night vision: flood IR LED illumination lets you run AI/CV on mono streams in low-light and no-light conditions.
- On-device AI (RVC2): 4 TOPS total (1.4 TOPS for AI) runs custom neural models, stereo depth, object tracking and on-board computer vision.
- USB-C connectivity: single USB-C cable for power and data, supporting USB2 and USB3 (5Gbps / 10Gbps).
- Sensor choice: select either a 120° DFOV IMX378 (12MP) or a 150° DFOV OV9782 (1MP) color camera.
Camera specifications – IMX378 color option
| Camera Specs | Color camera | Stereo pair |
|---|---|---|
| Sensor | IMX378 | OV9282 |
| Shutter | rolling | global |
| FOV (D/H/V) | 120°/95°/70° | 150°/128°/80° |
| Rectified Depth FOV | 106°/97°/70° | |
| Resolution | 12MP (4032×3040) | 1MP (1280×800) |
| Focus | FF: 60cm – ∞ | FF: 18cm – ∞ |
| Max Framerate | 60 FPS | 120 FPS |
| Pixel size | 1.55µm × 1.55µm | 3µm × 3µm |
Camera specifications – OV9782 color option
| Camera Specs | Color camera | Stereo pair |
|---|---|---|
| Sensor | OV9782 | OV9282 |
| Shutter | global | global |
| FOV (D/H/V) | 150°/127°/79.5° | 150°/127°/79.5° |
| Rectified Depth FOV | 106°/97°/70° | |
| Resolution | 1MP (1280×800) | 1MP (1280×800) |
| Focus | FF: 19.6cm – ∞ | FF: 19.6cm – ∞ |
| Max Framerate | 120 FPS | 120 FPS |
| Pixel size | 3µm × 3µm | 3µm × 3µm |
Wide FOV lenses can only be fixed-focus.
Projector specifications
| Projector Specs | Value |
|---|---|
| Dot projector | Ams Belago1.1 Dot-Pattern Infrared Illuminator |
| Number of dots | 4700 |
| HFOI 50% | 78 ± 7% |
| VFOI 50% | 61° ± 7% |
| VCSEL wavelength | 940nm |
| Operating temperature | 10°C to ~60°C |
| Temperature absolute limits | 0°C to ~80°C |
Depth perception
Baseline of 7.5cm between the left and right stereo cameras. Minimum perceivable distance: ~20cm (400P, extended), ~35cm (400P or 800P, extended), ~70cm (800P). Maximum perceivable distance: ~35 meters.
Power
Powered over USB-C. Because of the high power draw of the dot projector and illumination LED, a Y-adapter is required when using those functions.
Dimensions and weight
Weight: 91g.
Laser safety
Classified as a Class 1 Laser Product under EN/IEC 60825-1, Edition 3 (2014). Do not open the device or the stereo module; there are no user-serviceable parts, and invisible laser radiation is present when opened. Avoid direct exposure to the beam and do not use magnifying optics with the projector.
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
