Description
The OAK-1-Lite Fixed Focus is the affordable single-camera member of the OAK-1 family, keeping the same on-device AI and computer vision capabilities at a lower price. It is ideal for makers and developers who want an edge-AI camera for all sorts of projects without overloading their host.
Key highlights
- Affordable edge AI: same AI and CV functionality as the OAK-1 at a lower cost.
- On-device AI: 4 TOPS of processing power (1.4 TOPS for AI), running any convertible AI model on-board so your host stays free.
- 13MP fixed-focus camera: IMX214 sensor at 4208×3120 with fixed focus from 50 cm to ∞.
- Encoding: H.264, H.265, and MJPEG at 4K/30FPS and 1080P/60FPS.
- Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking, plus 2D/3D object tracking.

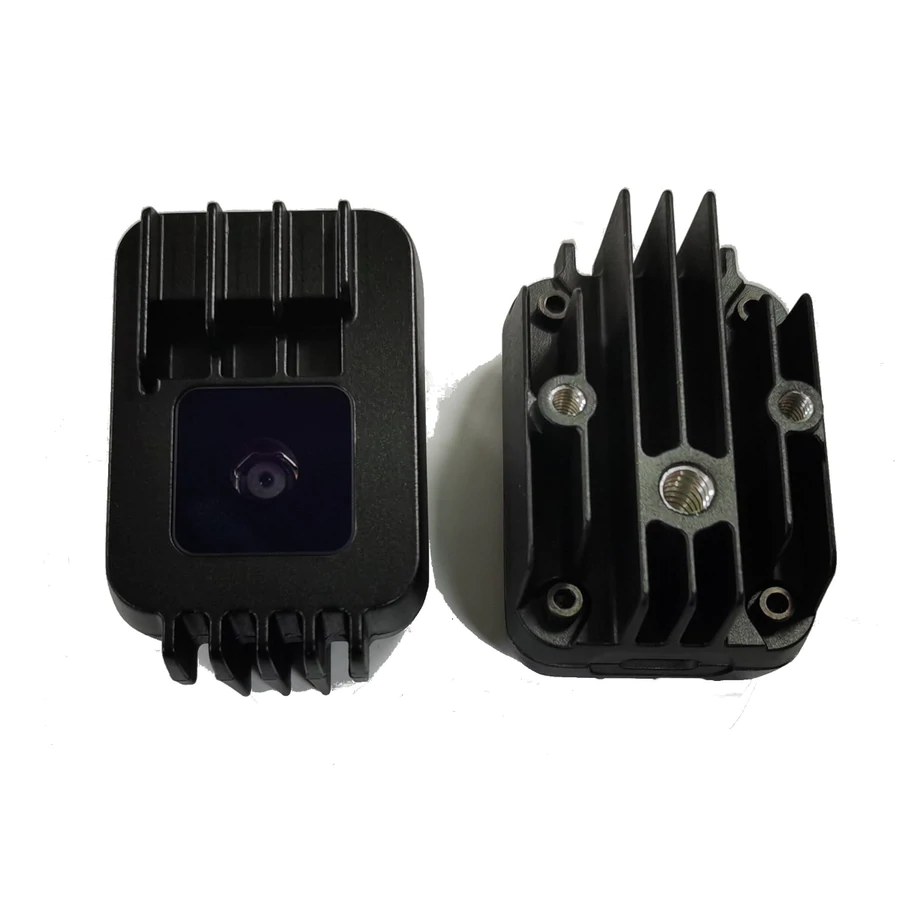

- Shared design: uses the same PCBA and enclosure as the OAK-1 — the only difference is the IMX214 sensor versus the OAK-1's IMX378.
Sensor specifications
| Camera Specs | Color camera |
|---|---|
| Sensor | IMX214 |
| DFOV / HFOV / VFOV | 81° / 69° / 54° |
| Resolution | 13MP (4208×3120) |
| Focus | Fixed-Focus: 50 cm – ∞ |
| Max Framerate | 60 FPS |
| F-number | 2.2 ±5% |
| Lens size | 1/3.1 inch |
| Effective Focal Length | 3.37 mm |
| Distortion | < 1% |
| Pixel size | 1.12µm × 1.12µm |

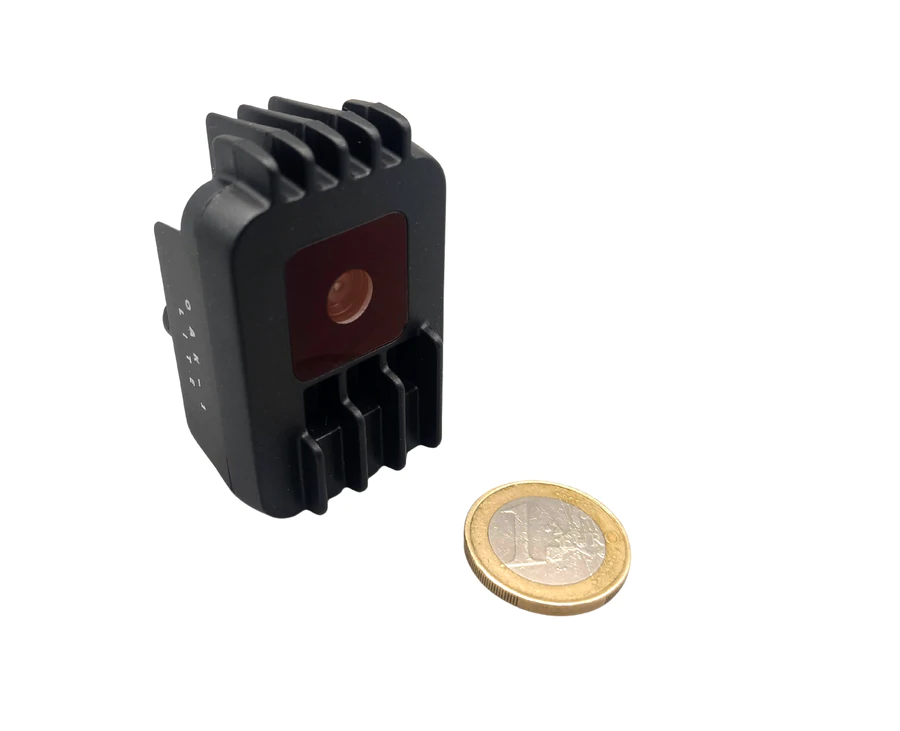

Dimensions & weight
- Width: 36 mm
- Height: 54.5 mm
- Length: 27.8 mm
- Weight: 53.1 grams
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
