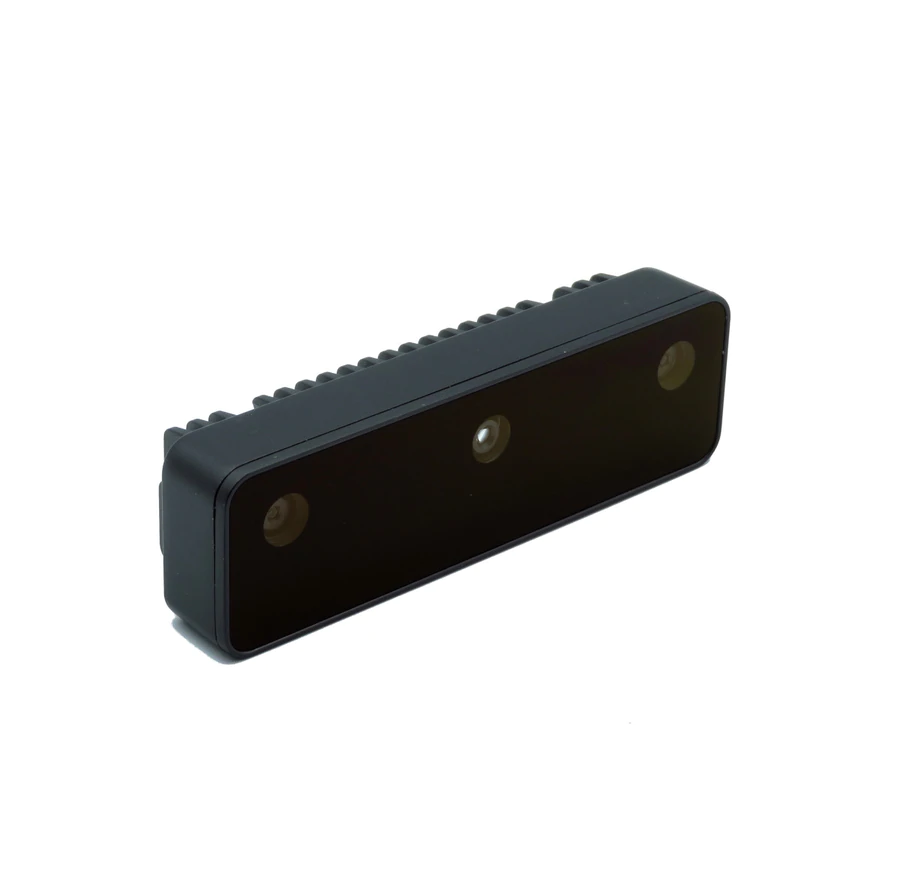

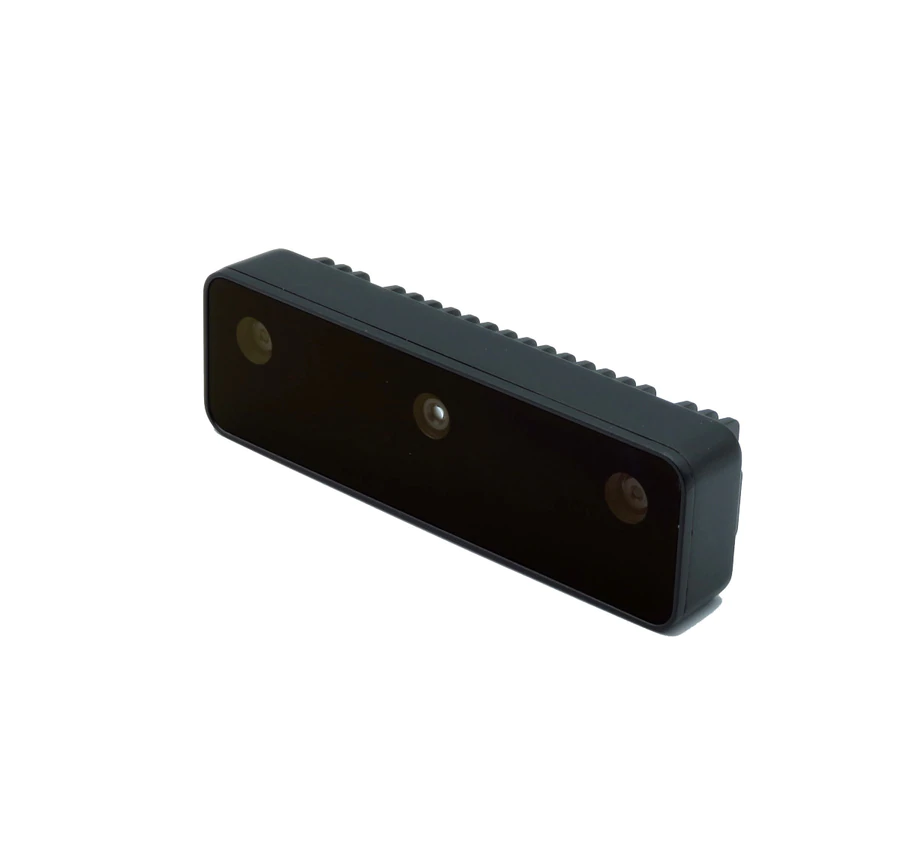

OAK-D S2 Fixed Focus
Luxonis
OAK-D S2 Fixed Focus
Description

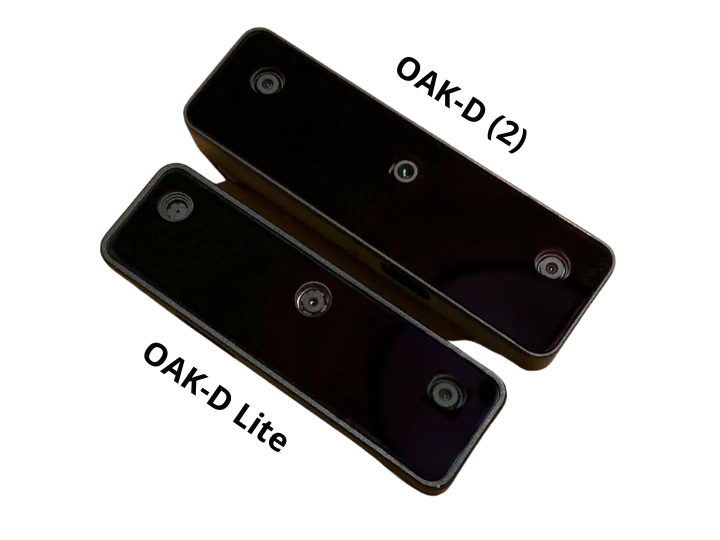

The OAK-D S2 Fixed Focus is the Series 2 version of the OAK-D depth camera in a smaller, lighter enclosure, built for developers and integrators adding on-device stereo depth and AI to robotics and vision projects.
Key highlights
- Series 2 design – a smaller, lighter enclosure than the original OAK-D.
- On-device AI – built on the RVC2 with 4 TOPS of processing power (1.4 TOPS for AI) to run any convertible AI model.
- Global-shutter stereo – OV9282 stereo pair running at up to 120 FPS for reliable depth.
- 12MP color – IMX378 fixed-focus color camera at up to 60 FPS.
- USB-C connectivity – a single cable for power and data, supporting USB2 and USB3 (5Gbps / 10Gbps).
- Compact and light – weighs just 91g.
Specifications
| Camera Specs | Color camera | Stereo pair |
|---|---|---|
| Sensor | IMX378 | OV9282 |
| Shutter | rolling | global |
| FOV (D/H/V) | 81°/69°/55° | 89.5°/80°/55° |
| Resolution | 12MP (4032x3040) | 1MP (1280x800) |
| Focus | FF: 50cm - ∞ | FF: 19.6cm - ∞ |
| Max Framerate | 60 FPS | 120 FPS |
| Pixel size | 1.55µm x 1.55µm | 3µm x 3µm |
| Lens size | 1/2.3 inch | 1/4 inch |
Depth perception
This camera has a baseline of 7.5cm. Min perceivable distance: ~20cm (400P, extended), ~35cm (400P OR 800P, extended), ~70cm (800P). Max perceivable distance: ~35 meters.
Connectivity & power
The OAK-D S2 has no barrel jack; a single USB-C connector supplies both power and communication.
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
