OAK-D Pro Auto Focus
Luxonis
OAK-D Pro Auto Focus
Description

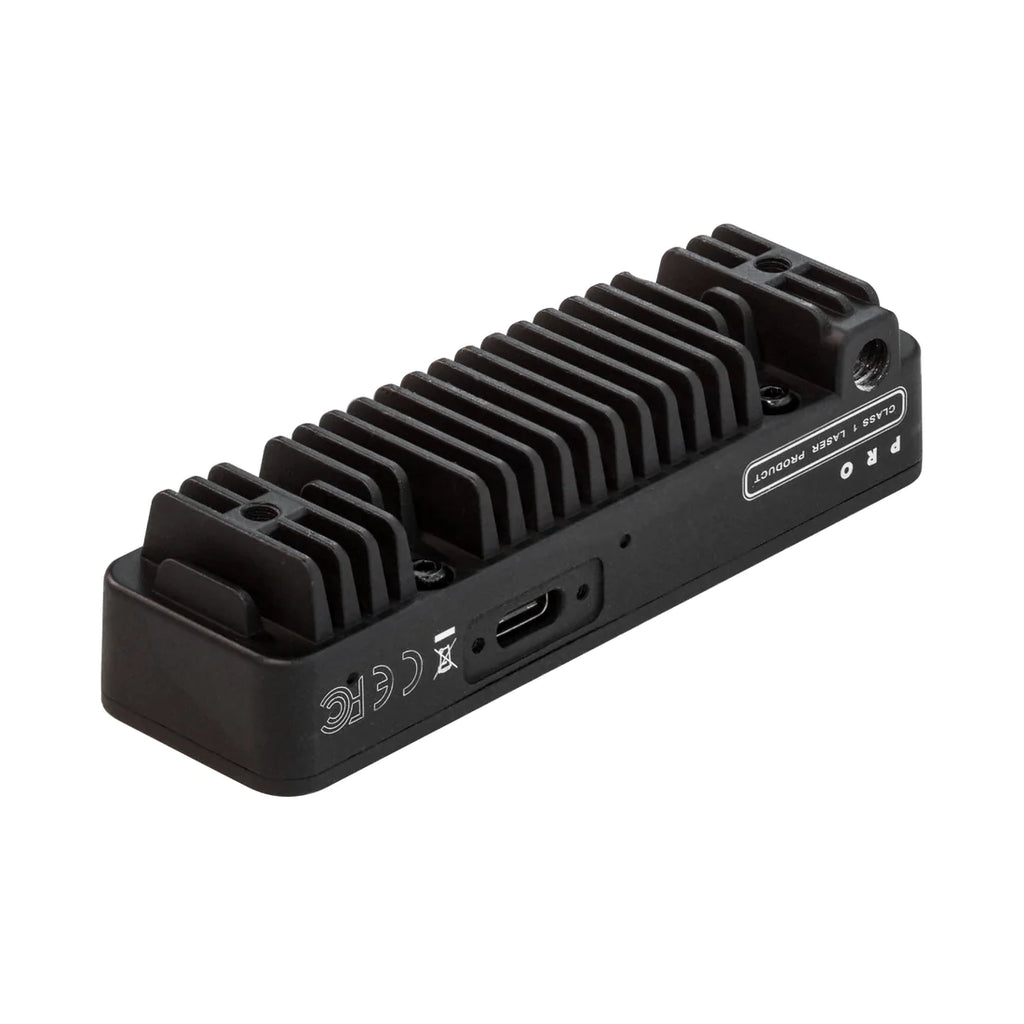

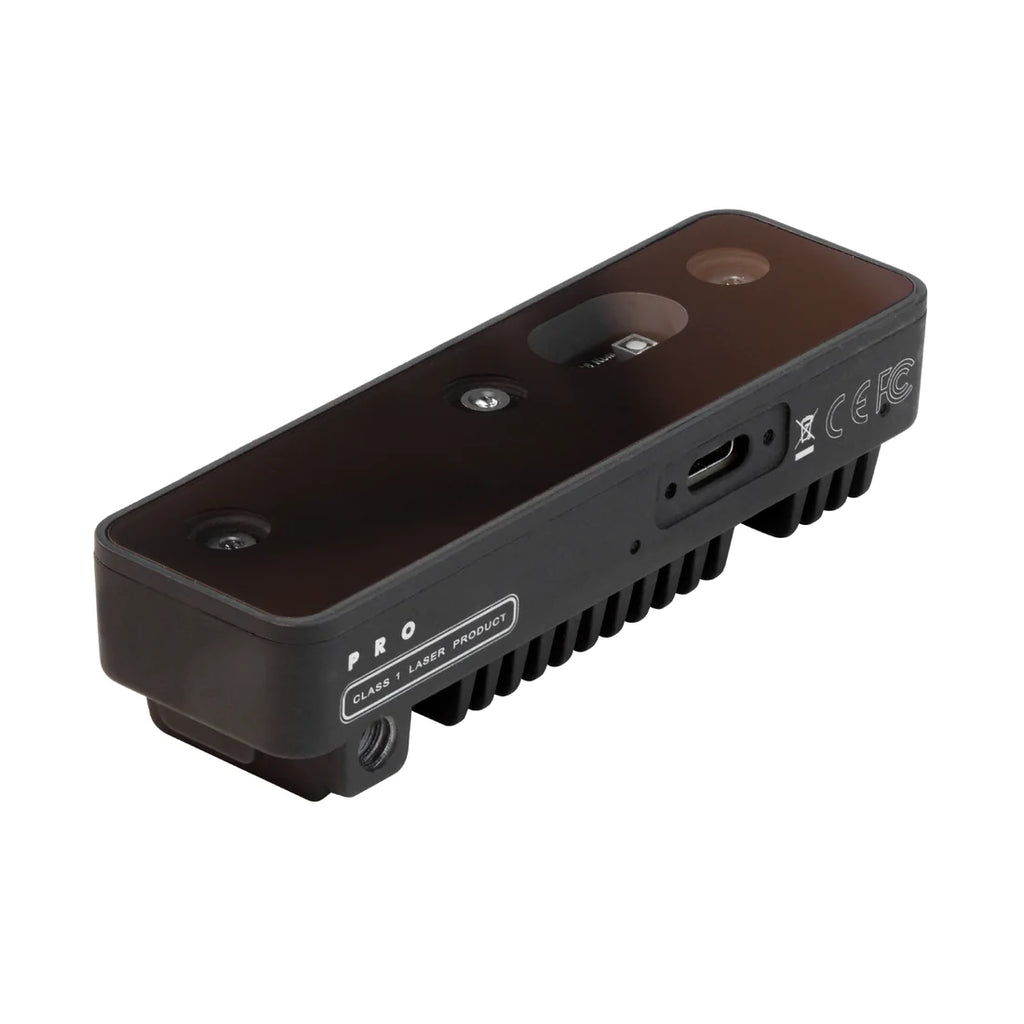

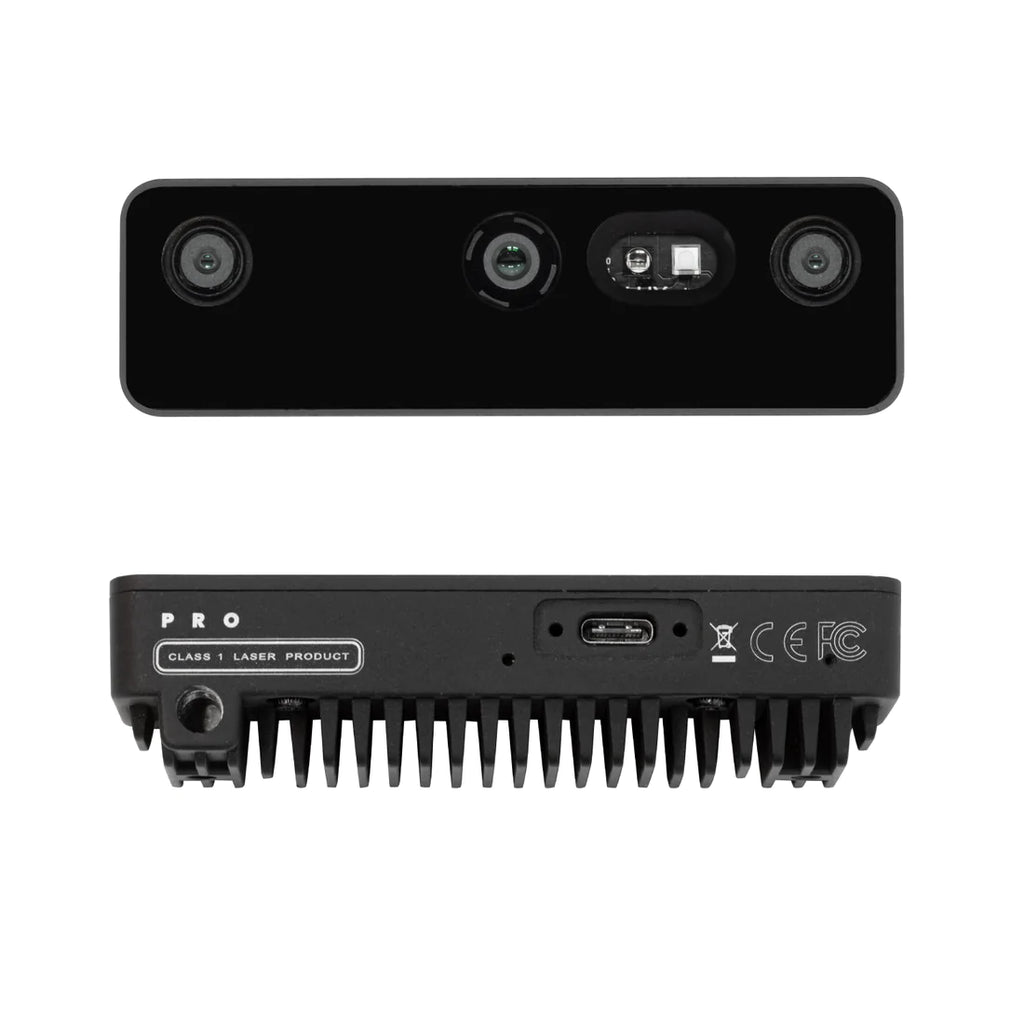

The OAK-D Pro (Auto Focus) is a Series 2 depth-AI camera that perceives the world like a human — pairing an active-stereo depth system with a 12MP colour camera and on-device neural inference. It builds on the OAK-D by adding an IR laser dot projector (for accurate depth on blank, low-texture surfaces) and an IR illumination LED for low- and no-light environments. Ideal for robotics, spatial AI, logistics, and machine-vision projects.
Key highlights
- Active stereo depth — IR dot projector improves accuracy on textureless surfaces like walls and floors.
- Night vision — IR illumination LED lets AI/CV run in low- or no-light conditions.
- 12MP auto-focus colour camera (IMX378) + OV9282 global-shutter stereo pair.
- 4 TOPS on-device processing (1.4 TOPS for AI) on the RVC2 — run custom neural models, stereo depth, object tracking and CV on the camera itself.
- USB-C connectivity (USB2 / USB3, 5–10 Gbps), compact 91 g Series 2 enclosure.
- Depth range ~20 cm to ~35 m (baseline 7.5 cm).
Note: a Y-adapter is required to power the IR dot projector and illumination LED, and is sold separately.
Sensor specifications
| Camera specs | Colour camera | Stereo pair |
|---|---|---|
| Sensor | IMX378 | OV9282 |
| Shutter | Rolling | Global |
| FOV (D/H/V) | 78° / 66° / 54° | 89.5° / 80° / 55° |
| Resolution | 12MP (4032×3040) | 1MP (1280×800) |
| Focus | AF: 8 cm – ∞ | FF: 19.6 cm – ∞ |
| Max framerate | 60 FPS | 120 FPS |
| Pixel size | 1.55µm | 3µm |
| Lens size | 1/2.3″ | 1/4″ |
On-device processing (RVC2)
Built on the Robotics Vision Core 2: 4 TOPS total (1.4 TOPS for AI). Runs any convertible AI model, H.264/H.265/MJPEG encoding (4K/30, 1080p/60), stereo depth with post-processing and RGB-depth alignment, plus 2D/3D object tracking and on-device computer vision (warp/dewarp, resize, crop, edge detection, feature tracking).
Depth perception
Baseline 7.5 cm. Minimum perceivable distance ~20 cm (400P, extended) to ~70 cm (800P); maximum ~35 m. Weight: 91 g.
Laser safety
Classified as a Class 1 Laser Product under EN/IEC 60825-1, Edition 3 (2014). Do not open the enclosure or use magnifying optics with the projector; avoid direct exposure to the beam. There are no user-serviceable parts. The laser dot projector and flood LED are disabled by default and are enabled via the DepthAI API.
Documentation & resources
Full hardware docs, the DepthAI SDK, and integration guides are available from Luxonis. Requires DepthAI library v2.15 or above.
