OAK-SoM-Pro (25 pcs)

Description

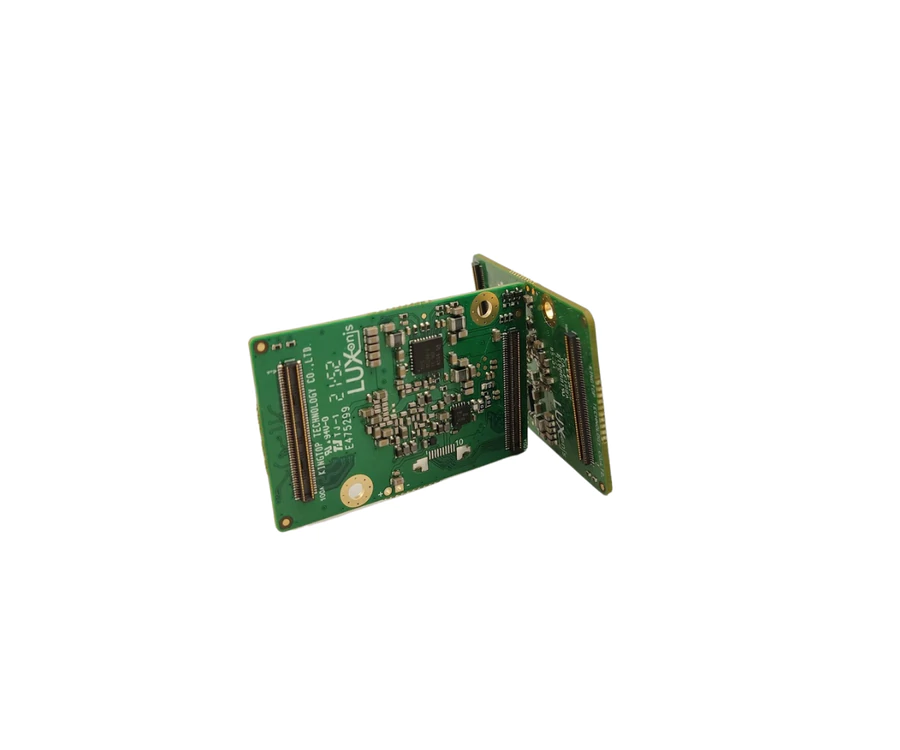

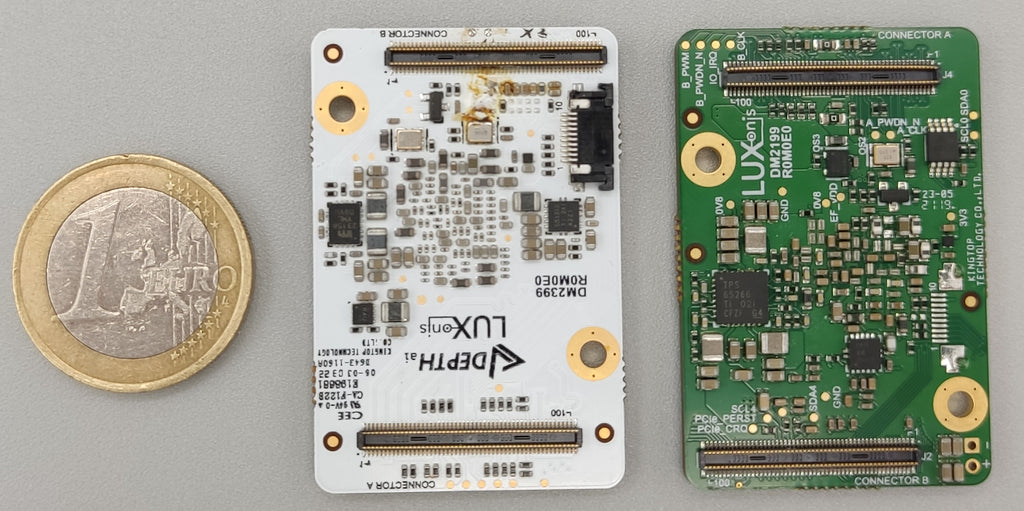

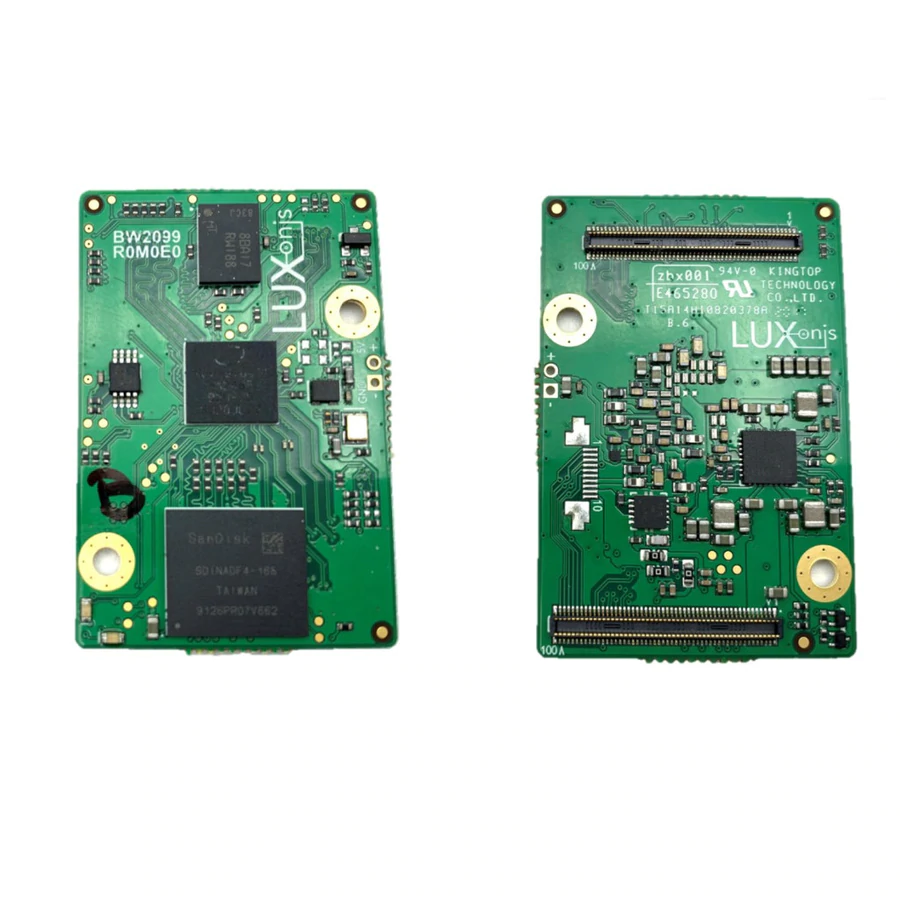

The OAK-SoM-Pro is a System on Module that embeds Luxonis DepthAI — real-time AI and stereo depth — into your own products, built for industrial automation, robotics and security systems. This listing is a 25-piece pack for volume integration.

Key highlights

• Two VPU variants: Myriad X (Gen2) and Keem Bay (Gen3), with Keem Bay offering ~10x AI performance, a quad-core ARM CPU and enhanced stereo depth.
• Drop-in replacement: OAK-SoM-Pro Keem Bay replaces Myriad X in existing OAK cameras.
• High-bandwidth I/O through two 10-Gbps-rated 100-pin board-to-board connectors carrying all signal I/O and 5V input.
• Multiple camera lanes: 2x 2-lane and 2x 4-lane MIPI channels.
• Flexible boot: NOR, USB, Ethernet (EEPROM) or eMMC, with SD-card support.

Specifications

• Movidius Myriad X VPU, 64 MB QSPI NOR flash, 32 kb I2C EEPROM
• Keem Bay (Series 3): 2 GB RAM (16 Gbit); Myriad X: 512 MB RAM (4 Gbit)
• Two 10-Gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
• 2x 2-lane MIPI channels, 2x 4-lane MIPI channels
• USB 3.1 Gen 2
• Boot modes: NOR, USB, Ethernet (EEPROM) or eMMC; SD-card supported
• Dimensions: 30 × 45 × 4 mm; Weight: 5 g
• Factory special order: 16 GB eMMC 5.1 flash device
• Design files produced with Altium Designer 20

This pack contains 25 pcs of OAK-SoM-Pro.

Documentation & resources

Full hardware docs and the DepthAI SDK are available from Luxonis.
