OAK-FFC-4P

Description

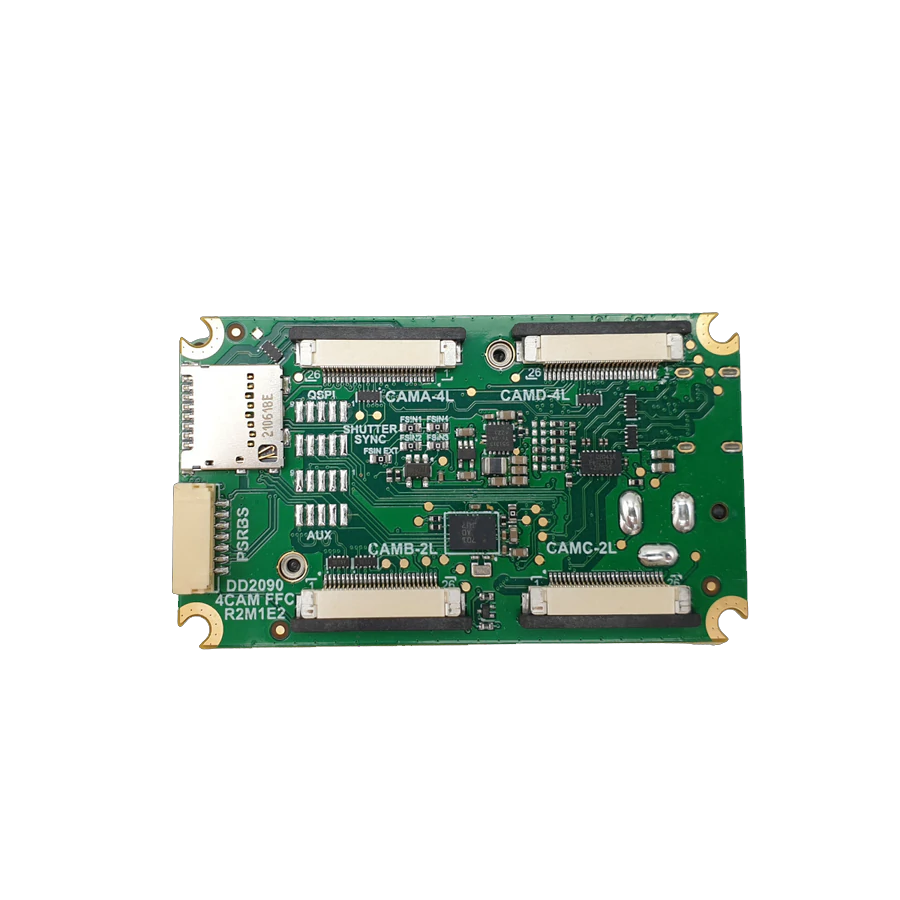

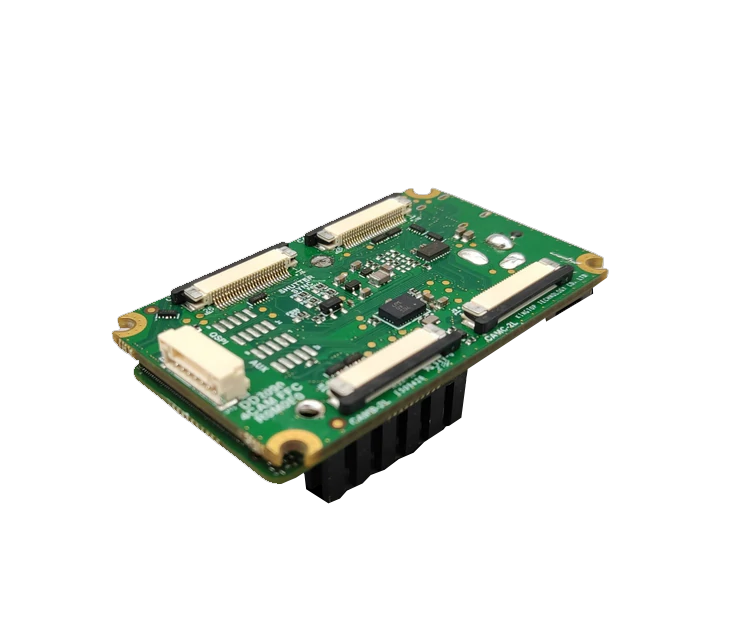

The OAK-FFC-4P (DD2090FFC) is a modular DepthAI baseboard with four FFC camera interfaces, built for developers and integrators who want custom stereo and RGB vision setups on the Luxonis OAK-SoM-Pro.

Key highlights

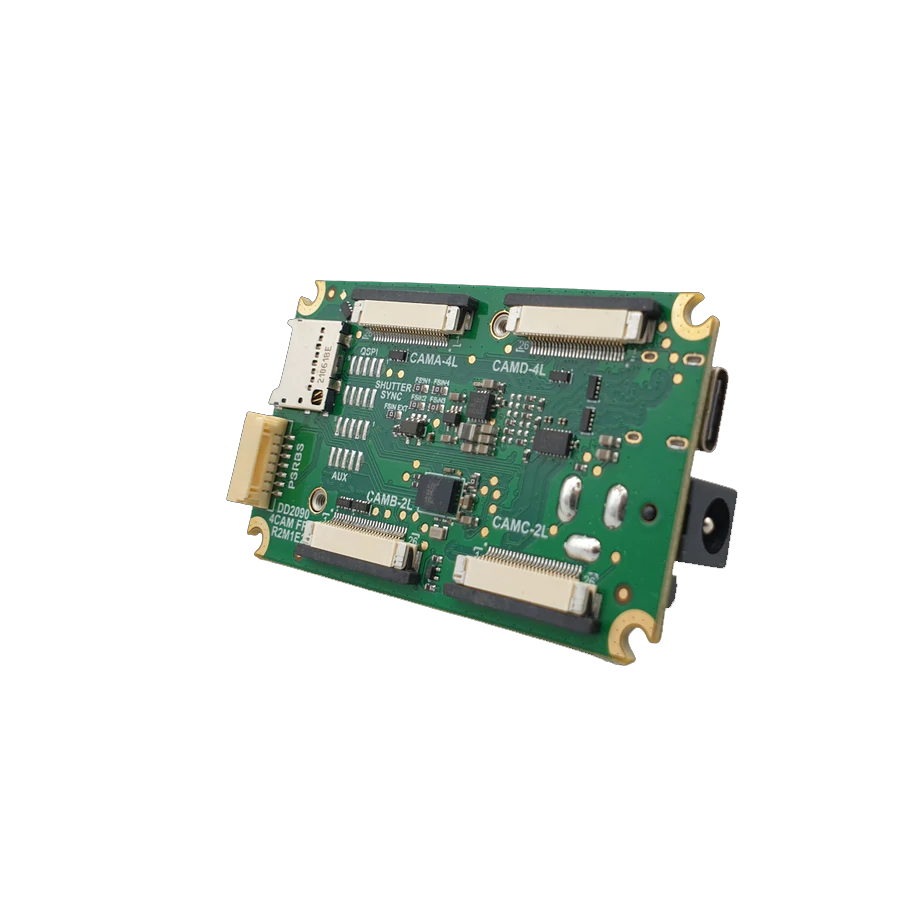

• Four FFC interfaces supporting two 2-lane and two 4-lane MIPI camera modules.
• Modular cameras let you choose a custom stereo baseline and M12 lenses for a custom field of view.
• RVC2 inside delivers 4 TOPS of processing power (1.4 TOPS for AI) to run any AI model.
• On-device computer vision: warp/dewarp, resize, crop, edge detection, feature tracking, plus stereo depth and 2D/3D object tracking.
• Onboard IMU over SPI, with USB 3.1 Gen 1 Type-C connectivity.
• RPi camera compatible via an Arducam FFC adapter (26-pin to 22-pin).

Specifications

• 2x 2-lane MIPI interface, 2x 4-lane MIPI interface
• Interface for Luxonis OAK-SoM-Pro
• 5V power input via barrel jack
• USB 3.1 Gen 1 Type-C
• Encoding: H.264, H.265, MJPEG — 4K/30FPS, 1080P/60FPS

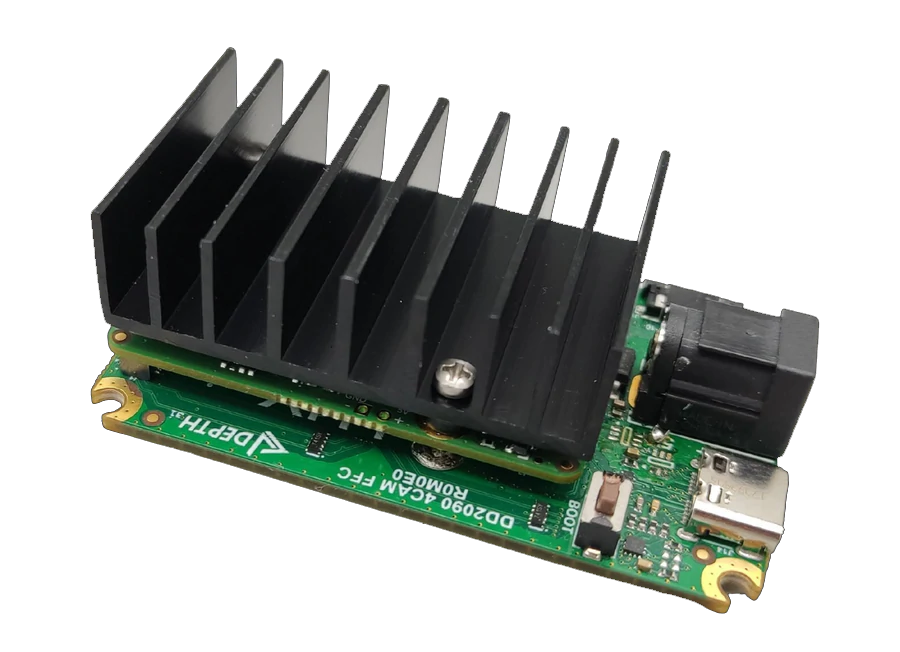

• Dimensions: 62 mm (W) × 38 mm (H) × 22 mm (L), PCBA and heatsink
• Weight: 41 g (PCBA and heatsink)
• Design files produced with Altium Designer 20

FFC cables

Ships with Molex series 15166 cables (26 pin count, same-sided, 152 mm). Shorter or longer FFC cables are also available from Molex.

Documentation & resources

Full hardware docs and the DepthAI SDK are available from Luxonis.
