OAK-FFC-OV9282 (26-pin, pair)
₹ 10,599.00
Skip to product information
Out of stock
Luxonis
OAK-FFC-OV9282 (26-pin, pair)
Luxonis-A00359
₹ 10,599.00
Taxes included.
Shipping calculated at checkout.
Description

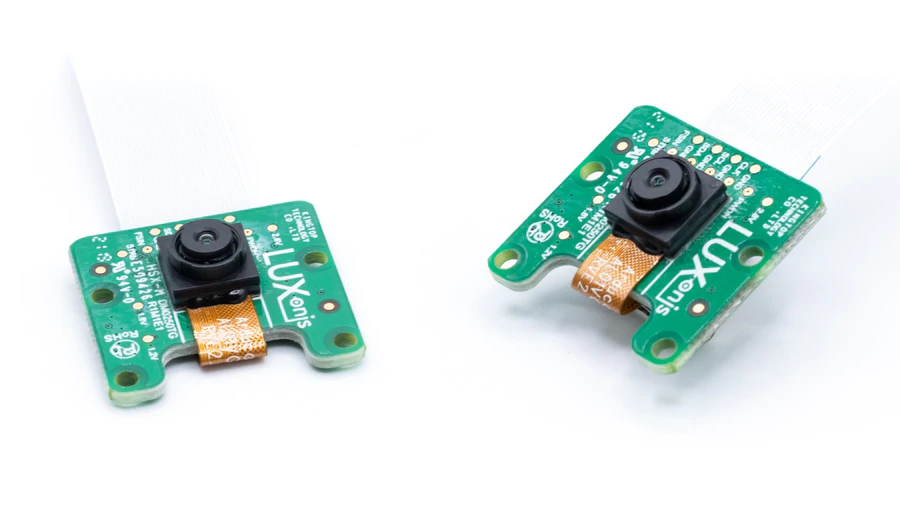

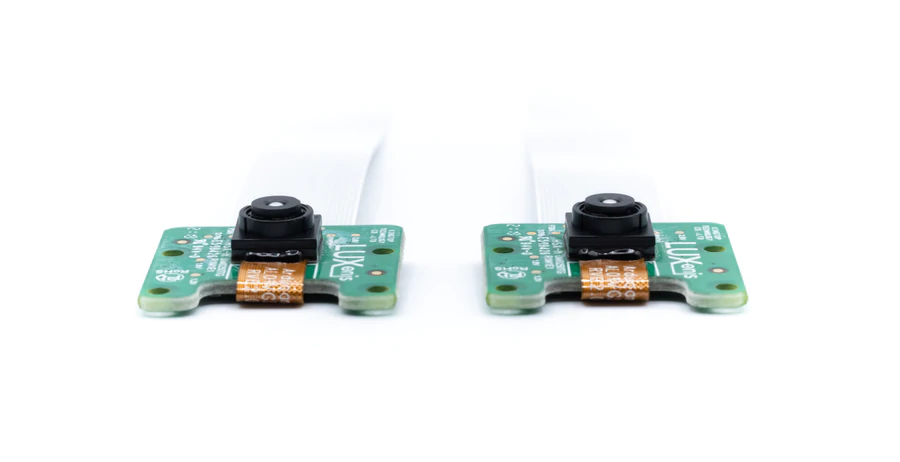

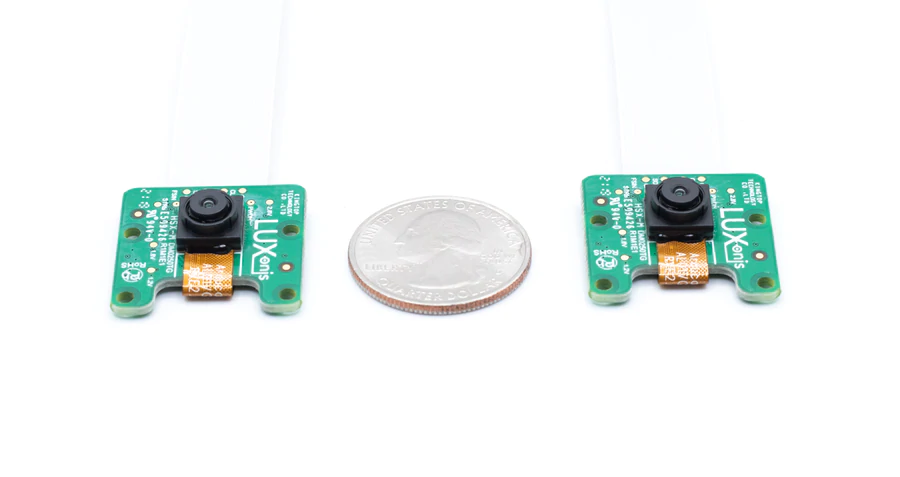

The OAK-FFC-OV9282 (26-pin, pair) is a carrier board for the Arducam PY010 OV9282 global-shutter camera module, compatible with OAK-FFC-3P, OAK-FFC-4P and DepthAI RPi HAT baseboards. Supplied as a pair, it is typically used to build a stereo camera setup for depth perception.
Key highlights
- Stereo pair: two modules for depth and stereo vision.
- OV9282 sensor: 1MP (1280 x 800) at up to 120 FPS.
- Fixed focus: sharp from 19.6 cm to infinity.
- 26-pin FFC: carries 5V power, 2-lane MIPI, I2C and control signals.
- On-board power: regulated generation for the camera module.
Specifications
| Camera Specs | Stereo camera |
|---|---|
| Sensor | OV9282 |
| DFOV / HFOV / VFOV | 82° / 72° / 50° |
| Resolution | 1MP (1280x800) |
| Focus | Fixed-Focus: 19.6cm - ∞ |
| Max Framerate | 120 FPS |
| F-number | 2.2 |
| Lens size | 1/4 inch |
| Pixel size | 3µm x 3µm |
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
