Description

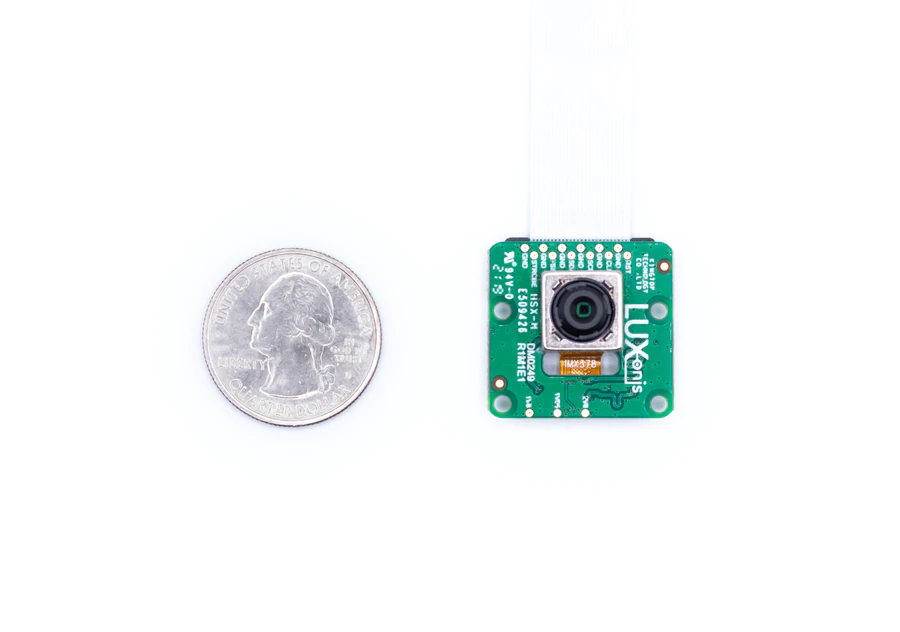

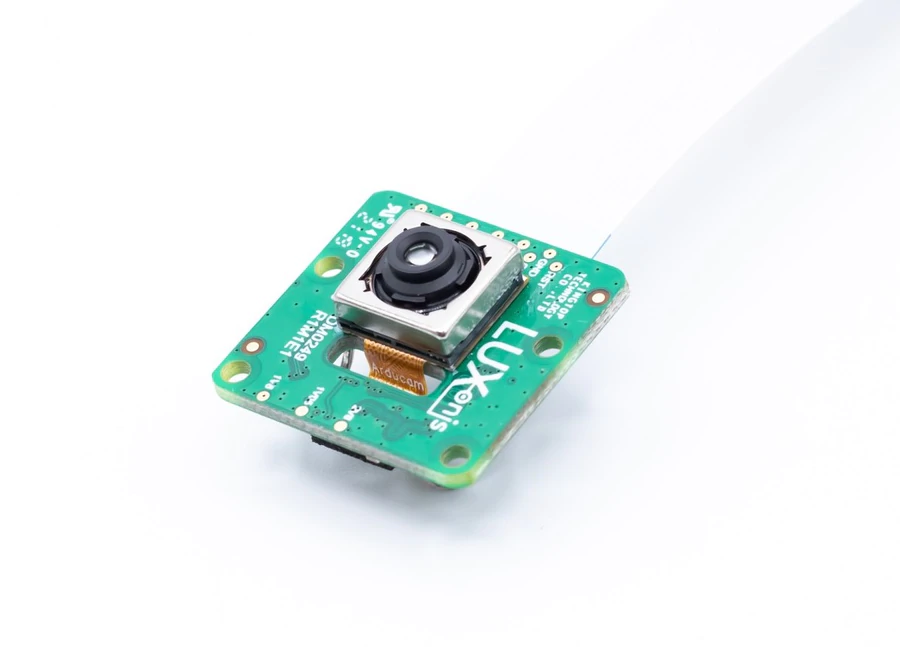

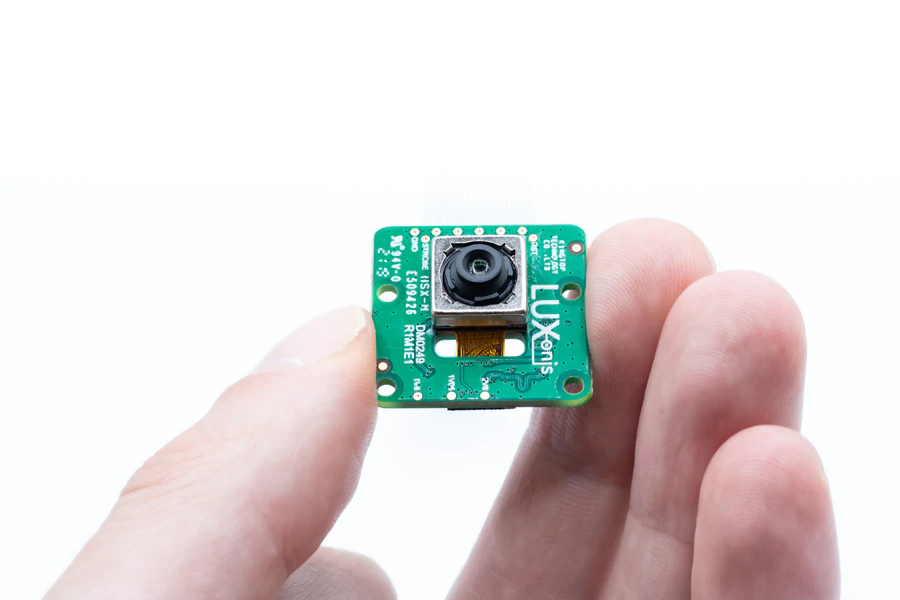

The OAK-FFC-IMX378 is a carrier board for the Arducam PY011 IMX378 camera module, compatible with OAK-FFC-3P, OAK-FFC-4P and DepthAI RPi HAT baseboards. It suits developers building auto-focus, high-resolution color vision systems.
Key highlights
- 12MP color: 4032 x 3040 IMX378 sensor.
- Auto-focus: sharp from 8 cm to infinity.
- 60 FPS: high-frame-rate capture at f/2.0.
- 26-pin FFC: carries 5V power, 4-lane MIPI, I2C and control signals.
- On-board power: regulated generation for the camera module.
Specifications
| Camera Specs | Color camera |
|---|---|
| Sensor | IMX378 |
| DFOV / HFOV / VFOV | 81° / 69° / 55° |
| Resolution | 12MP (4032x3040) |
| Focus | Auto-Focus: 8cm - ∞ |
| Max Framerate | 60 FPS |
| F-number | 2.0 |
| Lens size | 1/2.3 inch |
| Pixel size | 1.55µm x 1.55µm |
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
