OAK-D-PoE
Luxonis
OAK-D-PoE
Description

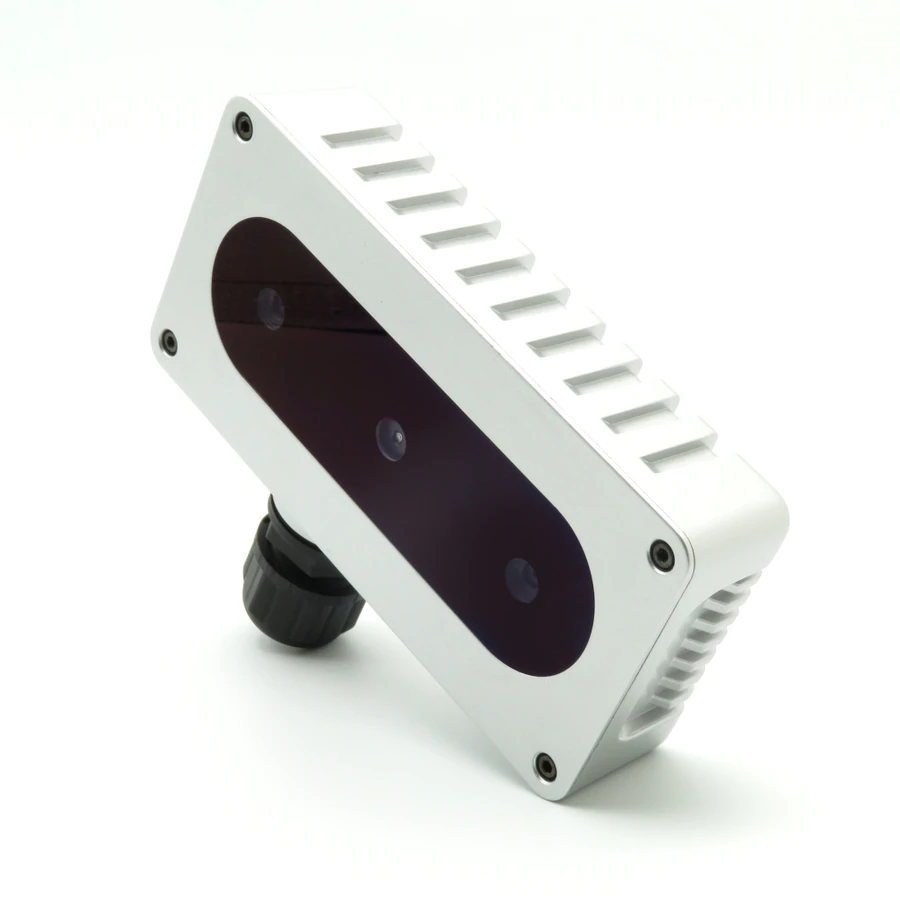

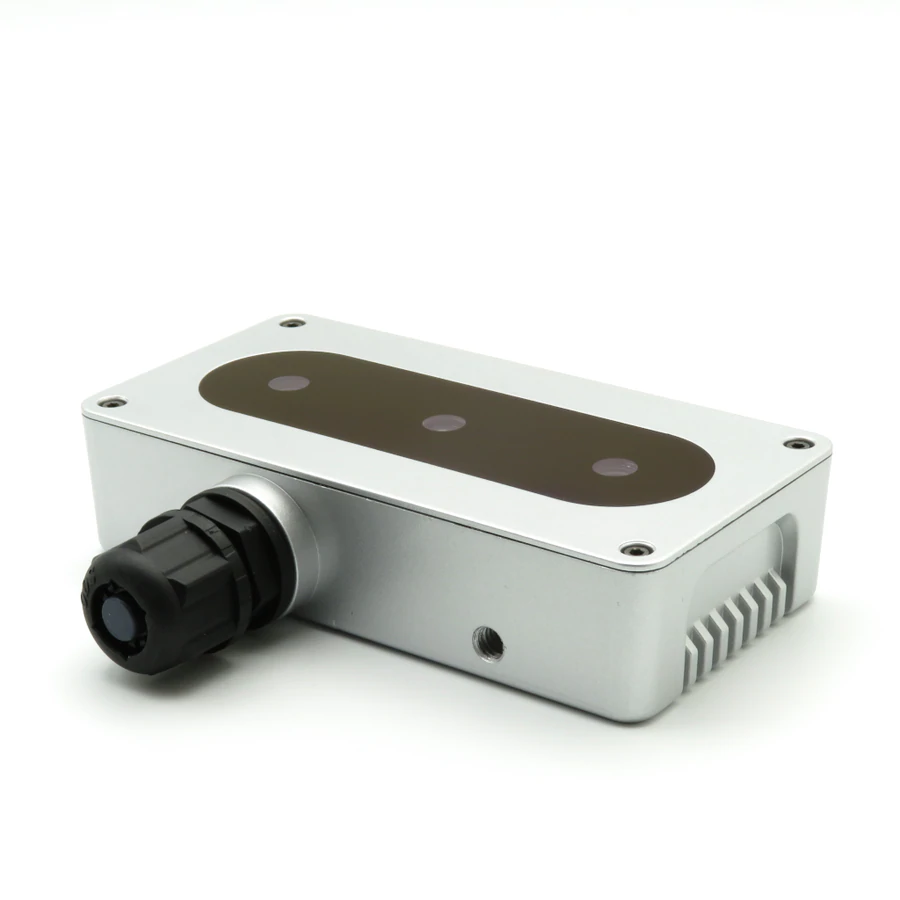

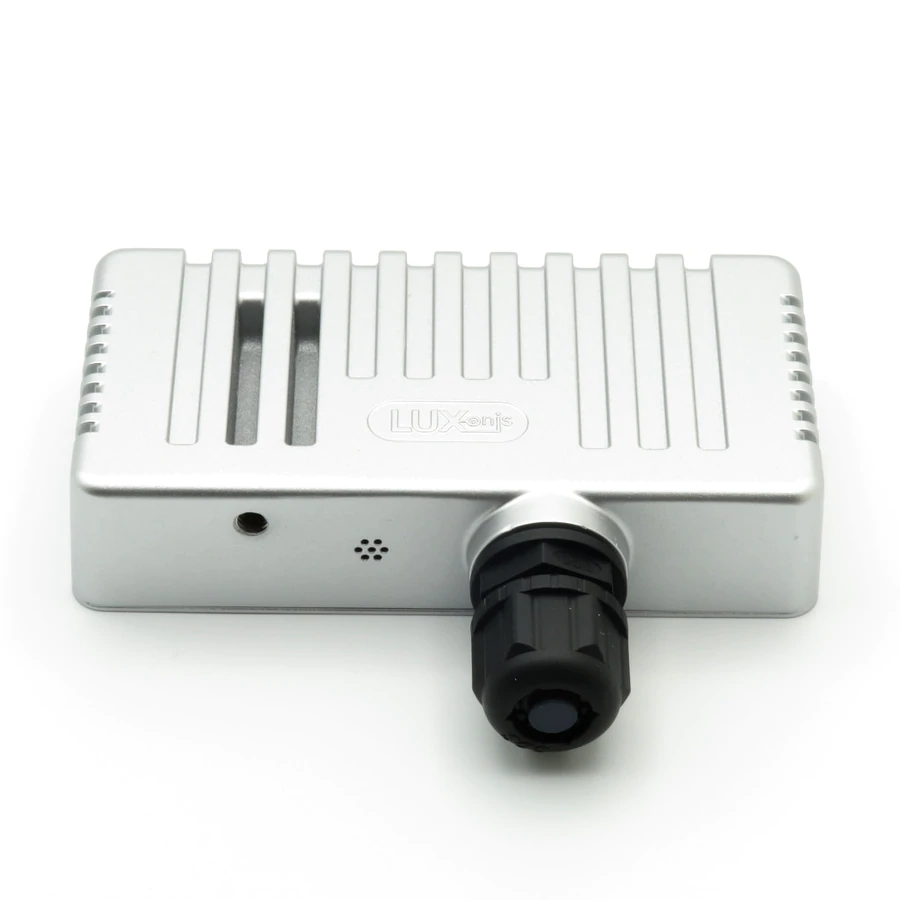

The OAK-D-PoE is a Power-over-Ethernet spatial AI camera from Luxonis, designed for industrial and fixed-installation deployments where a single Ethernet cable delivers both power and gigabit data. Its three on-board cameras feed stereo and RGB vision directly into the OAK-SoM-Pro for on-device depth and AI processing.
Key highlights
- Power-over-Ethernet: full 802.3af, Class 3 PoE compliance with 1000BASE-T (1 Gbps) speeds.
- Auto-focus color camera: 12MP IMX378 focusing from 8 cm to infinity.
- On-device AI: RVC2 processor delivering 4 TOPS (1.4 TOPS for AI) for standard and custom models.
- Stereo depth: global-shutter OV9282 pair with a 7.5 cm baseline reaching ~35 meters.
- Flexible boot: boot the OAK-SoM-Pro from USB, on-board eMMC or NOR flash, plus a micro SD card connector.
- Video encoding: H.264, H.265 and MJPEG at 4K/30FPS and 1080P/60FPS.
Specifications
| Camera Specs | Color camera | Stereo pair |
|---|---|---|
| Sensor | IMX378 | OV9282 |
| DFOV / HFOV / VFOV | 81° / 69° / 55° | 82° / 72° / 50° |
| Resolution | 12MP (4032x3040) | 1MP (1280x800) |
| Focus | Auto-Focus: 8cm - ∞ | Fixed-Focus: 19.6cm - ∞ |
| Max Framerate | 60 FPS | 120 FPS |
| F-number | 2.0 | 2.2 |
| Lens size | 1/2.3 inch | 1/4 inch |
| Pixel size | 1.55µm x 1.55µm | 3µm x 3µm |
Dimensions & weight
- Width: 130 mm
- Height: 101 mm
- Length: 31 mm
- Weight: 361 g
Depth perception
The camera has a 7.5 cm stereo baseline. Minimum perceivable distance is ~20 cm (400P, extended), ~35 cm (400P or 800P, extended) or ~70 cm (800P); maximum perceivable distance is ~35 meters. Extended refers to the StereoDepth node running in Extended disparity mode.
Connectivity & power
Powered and connected over Power-over-Ethernet; a PoE injector or switch is required. Power draw ranges from 2.00 W (standby) to 5.25 W in normal operation and up to 5.50 W at maximum consumption. Caution: PoE circuitry can carry potentials exceeding 57 V — always follow electronics handling best practices.
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
