OAK-D Auto Focus
Description

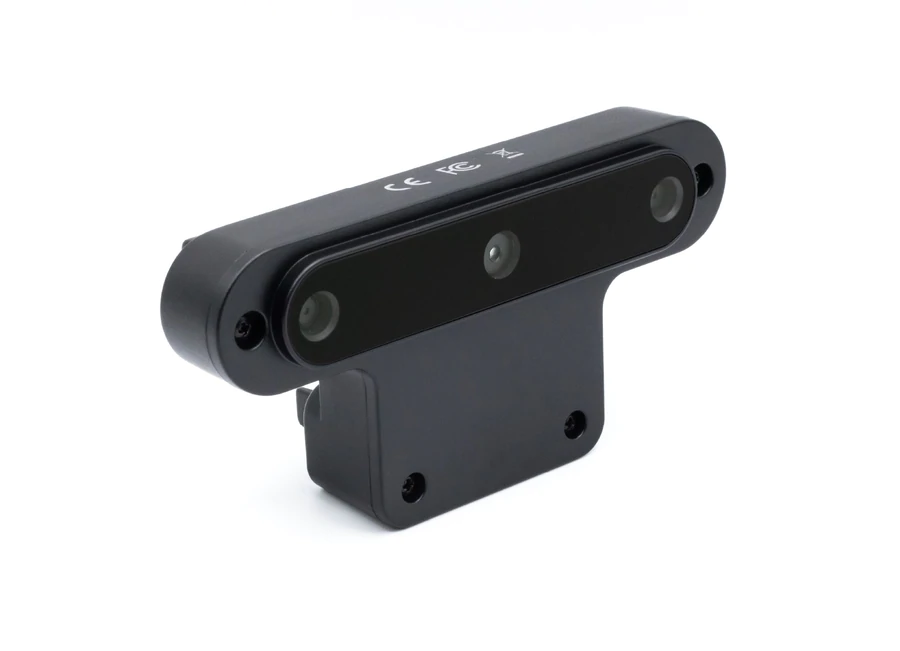

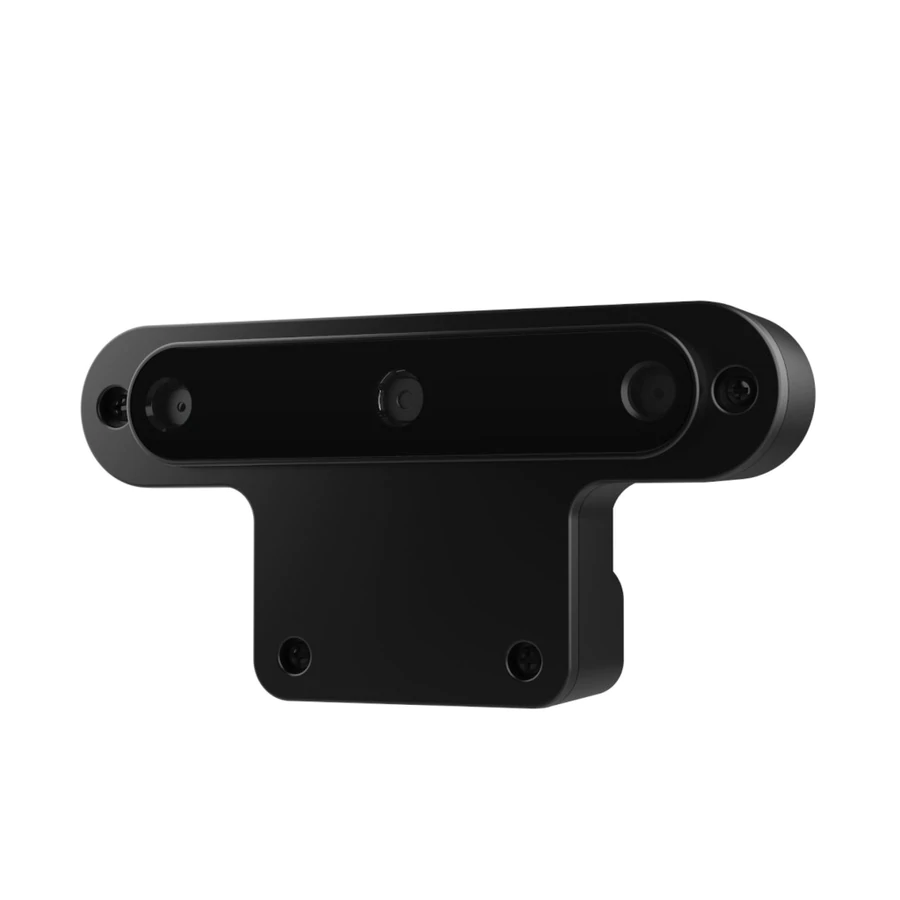

The OAK-D Auto Focus is the original Luxonis spatial AI camera, combining a 12MP auto-focus color camera with a global-shutter stereo pair for developers building depth-aware, on-device AI applications over USB-C. Its three on-board cameras feed directly into the OAK SoM for depth and AI processing.
Key highlights
- Auto-focus color camera: 12MP IMX378 focusing from 8 cm to infinity.
- On-device AI: RVC2 processor delivering 4 TOPS (1.4 TOPS for AI) to run standard or custom models.
- Stereo depth: OV9282 pair with a 7.5 cm baseline for perception up to ~35 meters.
- USB-C connectivity: supports both USB2 and USB3 (5 Gbps / 10 Gbps).
- Flexible power: USB Type-C or a 5V barrel jack, with 1.5A+ Type-C recommended.
- Video encoding: H.264, H.265 and MJPEG at 4K/30FPS and 1080P/60FPS.
Specifications
| Camera Specs | Color camera | Stereo pair |
|---|---|---|
| Sensor | IMX378 | OV9282 |
| DFOV / HFOV / VFOV | 81° / 69° / 55° | 82° / 72° / 50° |
| Resolution | 12MP (4032x3040) | 1MP (1280x800) |
| Focus | Auto-Focus: 8cm - ∞ | Fixed-Focus: 19.6cm - ∞ |
| Max Framerate | 60 FPS | 120 FPS |
| F-number | 2.0 | 2.2 |
| Lens size | 1/2.3 inch | 1/4 inch |
| Pixel size | 1.55µm x 1.55µm | 3µm x 3µm |
Weight
115 g total; OAK-D-PCBA 43 g. An enclosure-free OAK-D PCBA variant with a heatsink was also offered for size- or weight-critical applications such as drones, exposing additional connectors.
Depth perception
The camera has a 7.5 cm stereo baseline. Minimum perceivable distance is ~20 cm (400P, extended), ~35 cm (400P or 800P, extended) or ~70 cm (800P); maximum perceivable distance is ~35 meters. Extended refers to the StereoDepth node running in Extended disparity mode.
Connectivity & power

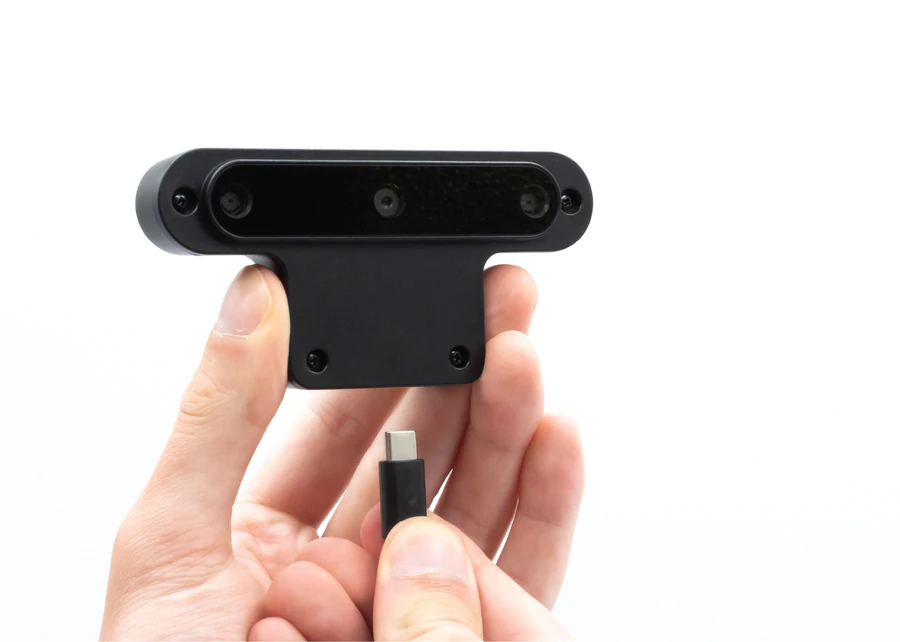

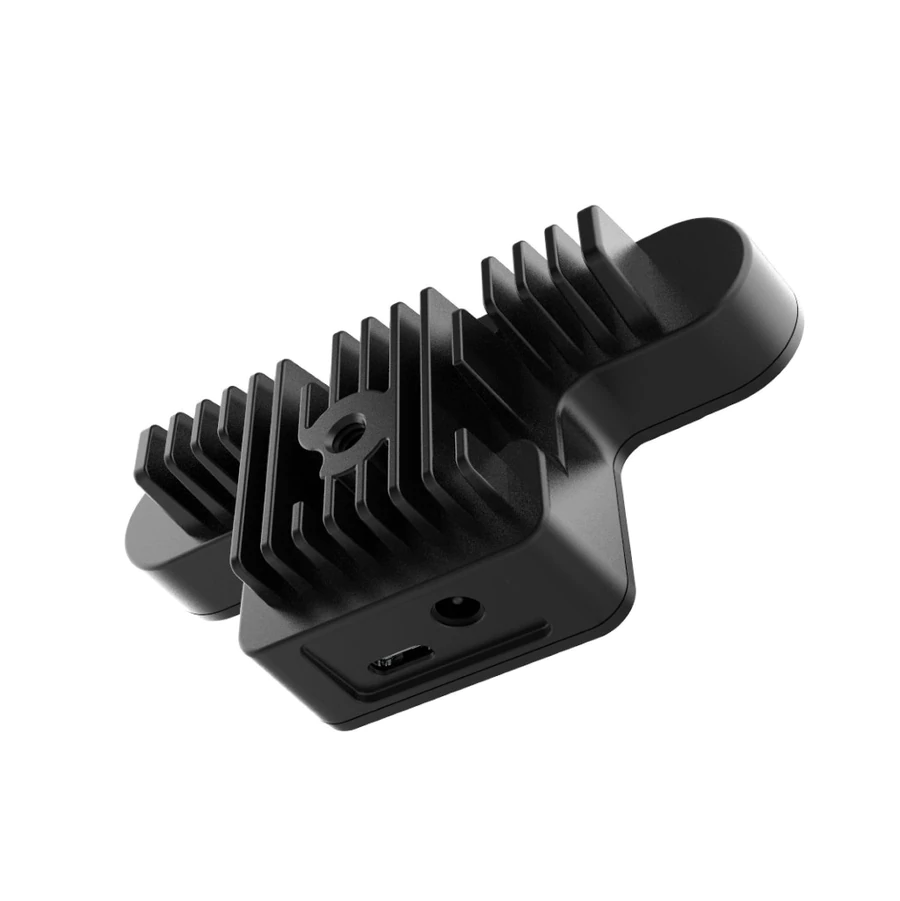

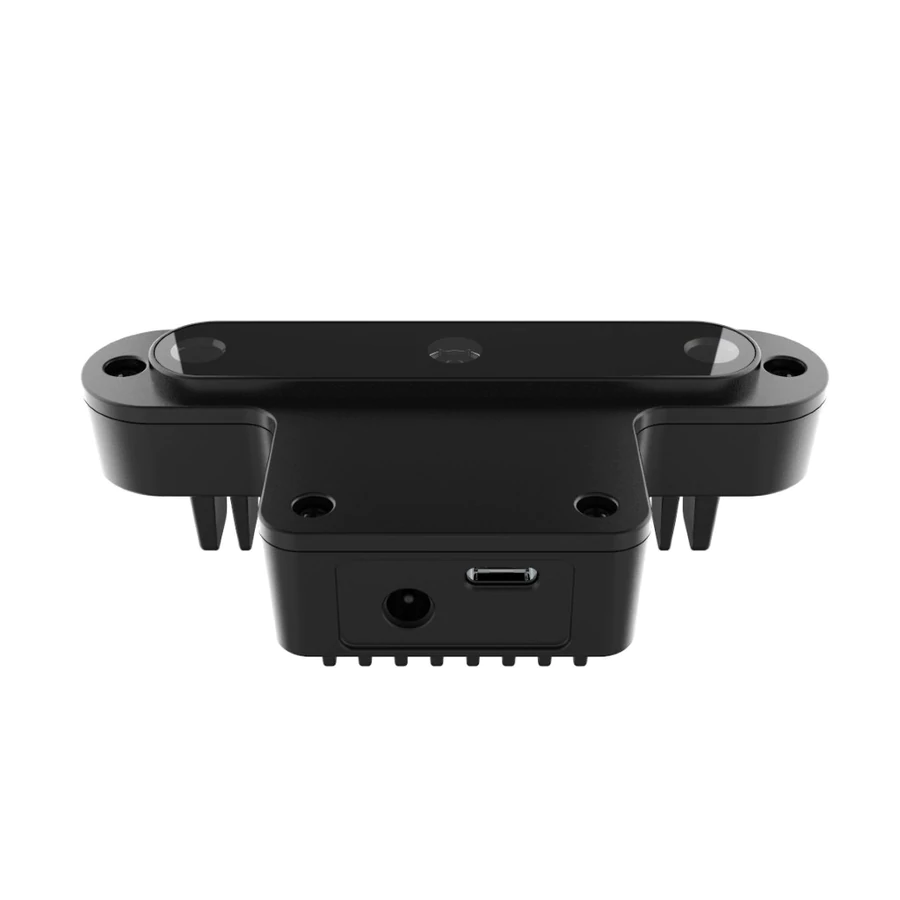

Powered via USB Type-C or a 5V, 5.5mm x 2.5mm barrel jack. USB3 5 Gbps speeds are standard for streaming; Type-C power of 1.5A or greater is recommended.
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
