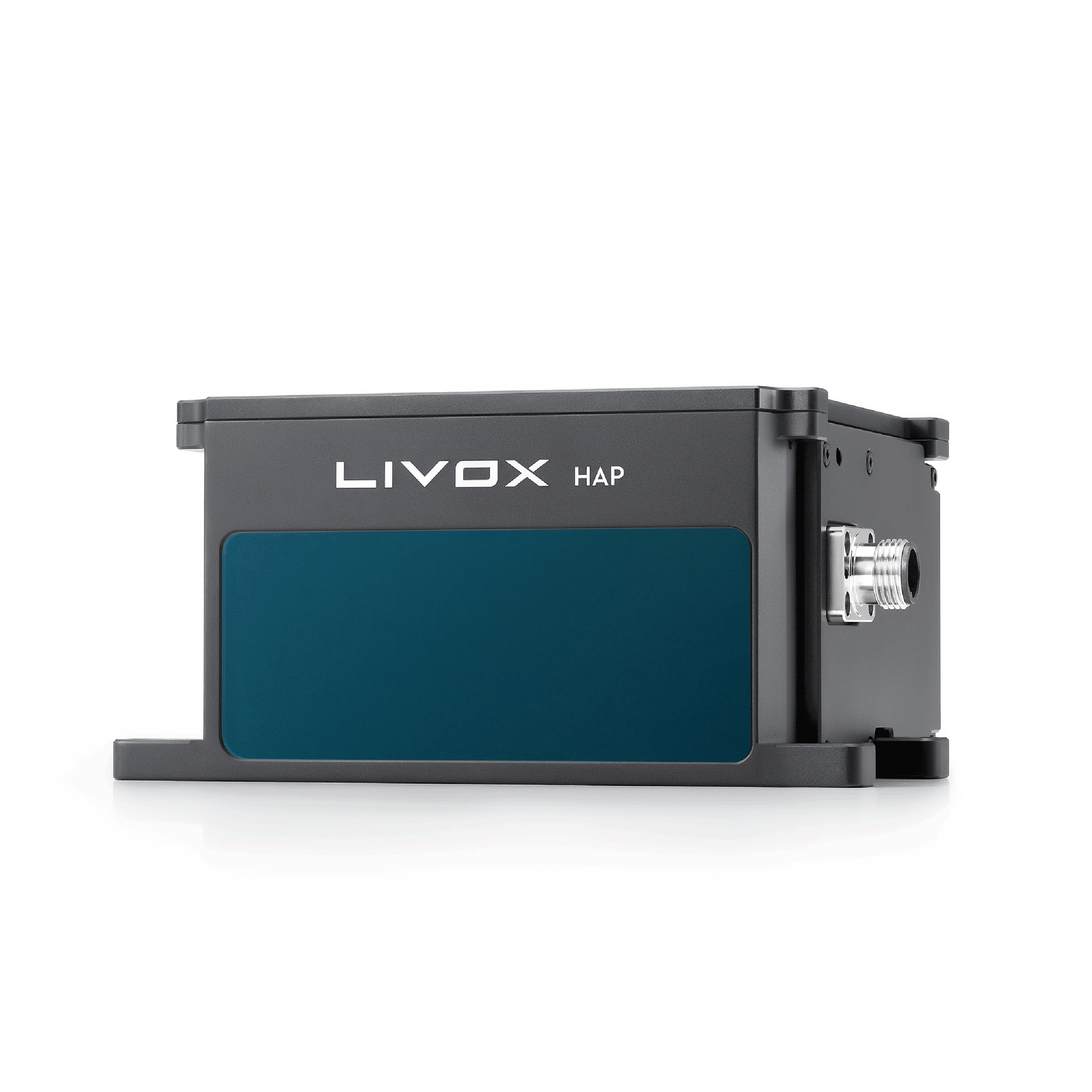

LIVOX HAP TX - Automotive Grade Lidar
Description
The Livox HAP (TX) is a high-performance LiDAR sensor engineered for automotive applications, particularly in advanced driver-assistance systems (ADAS) and autonomous driving. It boasts a robust set of features designed for reliability and accuracy in various environmental conditions.
Key Performance Metrics
The HAP (TX) offers a substantial detection range and a wide field of view, crucial for comprehensive environmental perception.
| Feature | Specification |
| Detection Range | 150 m @ 10% reflectivity, 200 m @ 50% reflectivity |
| Field of View (FOV) | 120° (Horizontal) x 25° (Vertical) |
| Point Rate | 452,000 points/s (Single Return), 904,000 points/s (Dual Return) |
| Ranging Accuracy | < 2 cm |
| Angular Accuracy | < 0.1° |
| Frame Rate | 10 Hz, 20 Hz |
| Laser Wavelength | 905 nm (Class 1 Eye Safe) |
Operational and Physical Specifications
Designed for the rigors of automotive use, the HAP (TX) is built to withstand a wide range of temperatures and environmental factors.
| Specification | Value |
| Operating Temperature | -40°C to 85°C |
| Power Consumption | 12 W |
| Voltage Range | 9V - 18V DC |
| IP Rating | IP67 |
| Dimensions | 116 mm x 116 mm x 76 mm |
| Weight | Approx. 1100 g |
Data and Connectivity
The sensor is equipped with a standard automotive data interface for seamless integration into vehicle systems.
| Feature | Specification |
| Data Interface | 100BASE-TX Ethernet |
| Data Synchronization | IEEE 1588 (PTP) |
The Livox HAP (TX) utilizes a non-repetitive scanning pattern which provides a high-density point cloud, enabling the detection of small objects and detailed environmental mapping. This technology enhances the safety and reliability of autonomous driving systems by offering a more comprehensive and accurate perception of the vehicle's surroundings.
Rigorously tested for automotive-grade performance
