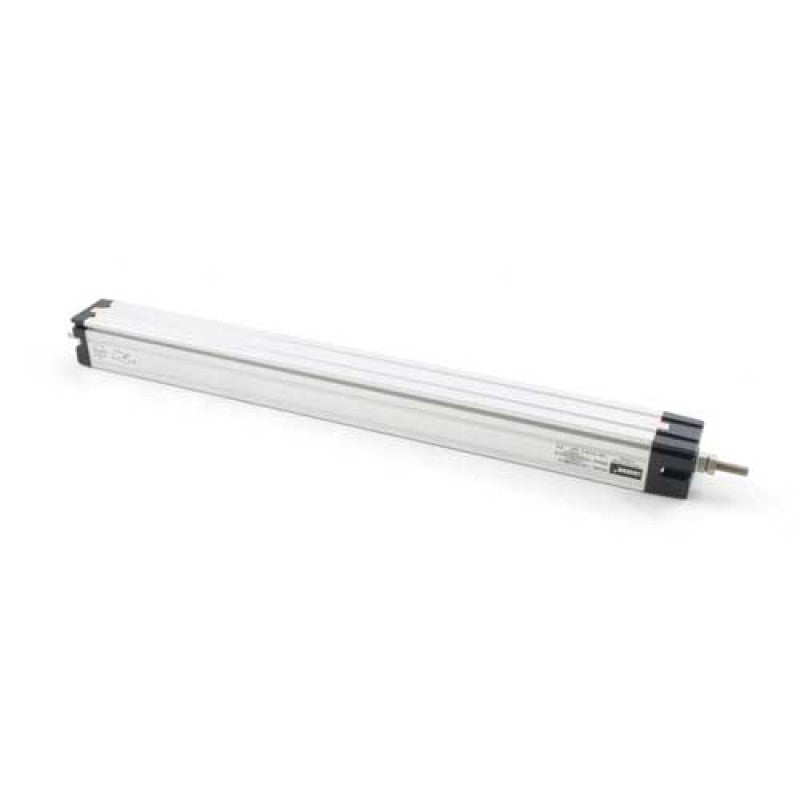

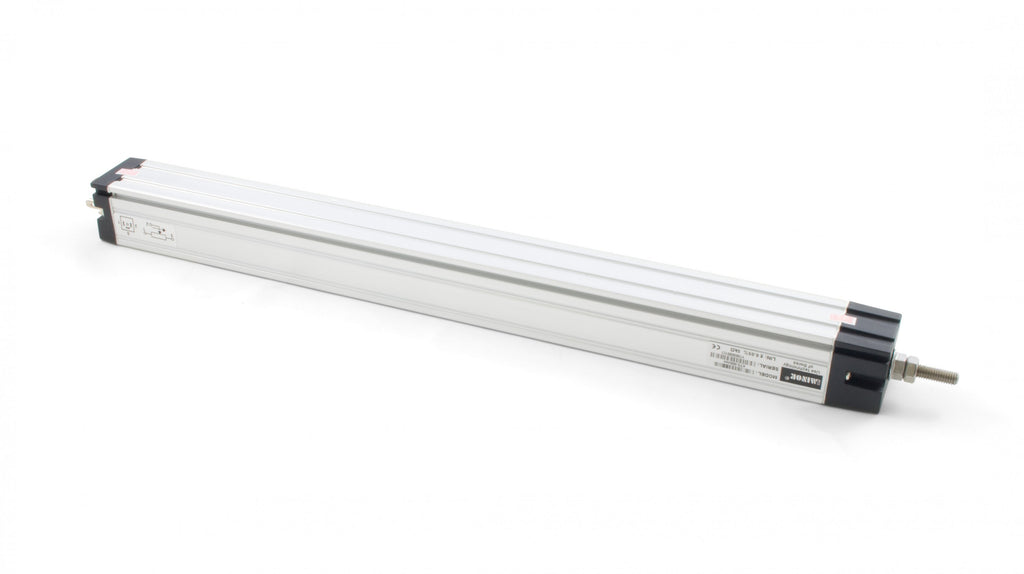

Linear Potentiometer - KTC-300mm
SKU:
Phidgets-3582_0
₹ 13,809.00
Taxes included.
Shipping calculated at checkout.
Description

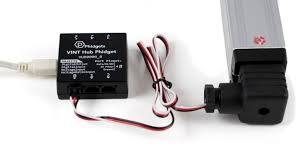

This industrial linear potentiometer has 300mm of travel and connects to an Analog Input or VINT Hub port.
The KTC series linear potentiometer is designed to provide position feedback for systems with moving parts. This potentiometer can extend to a length of 300mm and is protected by an anodized aluminium outer casing.
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Type | Input (Linear) |
| Controlled By | VoltageRatio Input |
| Linear Travel | 300 mm |
| Potentiometer Impedance | 5 kΩ |
| Repeatability Error Max | 0.003 % |
| Physical Properties | |
| Material | Anodized Aluminium |
| IP Rating | IP65 |
| Lifespan | 100 million actuations |
