Intel® RealSense™

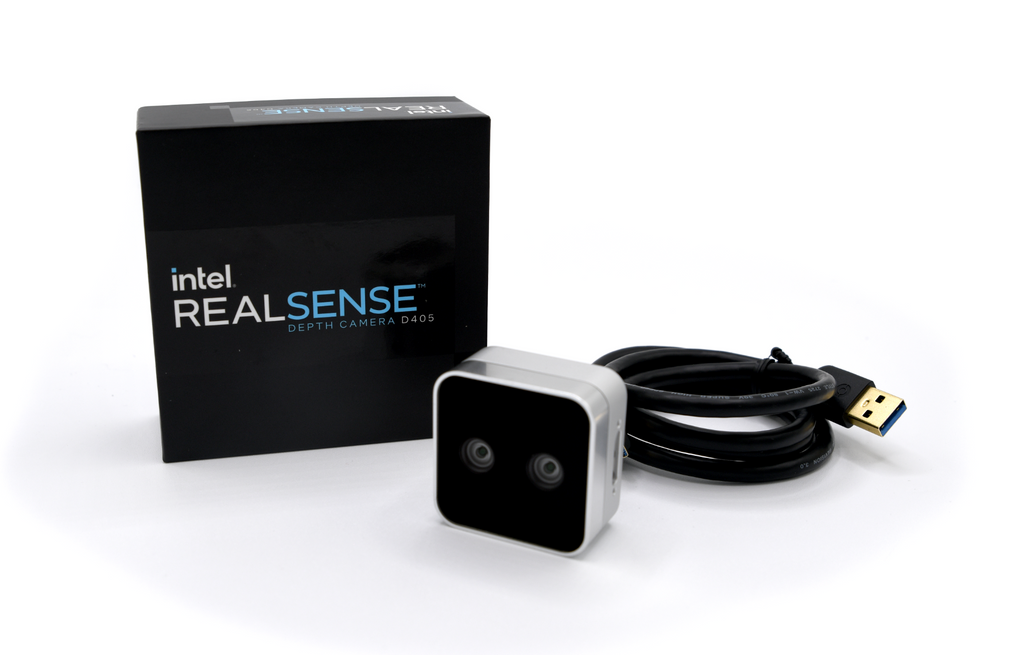

Intel® RealSense™ Depth Camera D405
SKU: Intel-D405
₹ 31,999.00
Taxes included.
Shipping calculated at checkout.
Description
The Intel® RealSense™ D405 with its sub-millimeter detection accuracy further expands the most comprehensive portfolio of Intel® RealSense™ depth camera solutions on the market. See the world up close with the Intel RealSense Depth Camera D405.
- The D405 operates at an ideal range of 7 cm to 50 cm with minimum object detection down to 500 microns at 7 cm. It features high-resolution, color, global shutter depth sensors providing matched RGB and depth data.
- We make the camera smaller by getting RGB data from the depth sensor and enhancing it with an image signal processor (ISP).
- The D405 is the depth camera of choice for applications from precision robot gripping operations to assembly line inspections to more effective wound care management and other close-range tasks.
- The D405 with its sub-millimeter detection accuracy further expands the most comprehensive portfolio of Intel® RealSense™ depth camera solutions on the market. See the world up close with the Intel RealSense Depth Camera D405.
- Support for the cross-platform, open-source Intel® RealSense™ SDK 2.0.
The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/.
WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Technical Specification:
| Use Environment | Indoor/Outdoor |
| Image Sensor Technolog | Global Shutter |
| Ideal Range | 7 cm to 50 cm |
| Depth Technology | Stereoscopic |
| Minimum Depth Distance (Min-Z) | ~7 cm @ 480p |
| Depth Accuracy | <2% at 50 cm |
| Depth Field of View (FOV) | 87° × 58° |
| Depth Stream Output Resolution | Up to 1280 × 800 |
| Depth Stream Output Frame Rate | Up to 90 fps |
| RGB Frame Resolution | 1280 × 800 |
| RGB Frame Rate | 90 fps |
| RGB Sensor Technology | Lef Imager RGB with ISP |
| RGB Sensor FOV | 87° × 58° |
| RGB Sensor Resolution | Up to 1280 x 800 |
| Camera Module | Intel RealSense Module D401 |
| Vision Processor Board | Intel RealSense Vision Processor D4 Board v4 |
| Form factor | Camera Peripheral |
| Camera Dimension (Length × Depth × Height) |
42 mm × 42 mm × 23 mm |

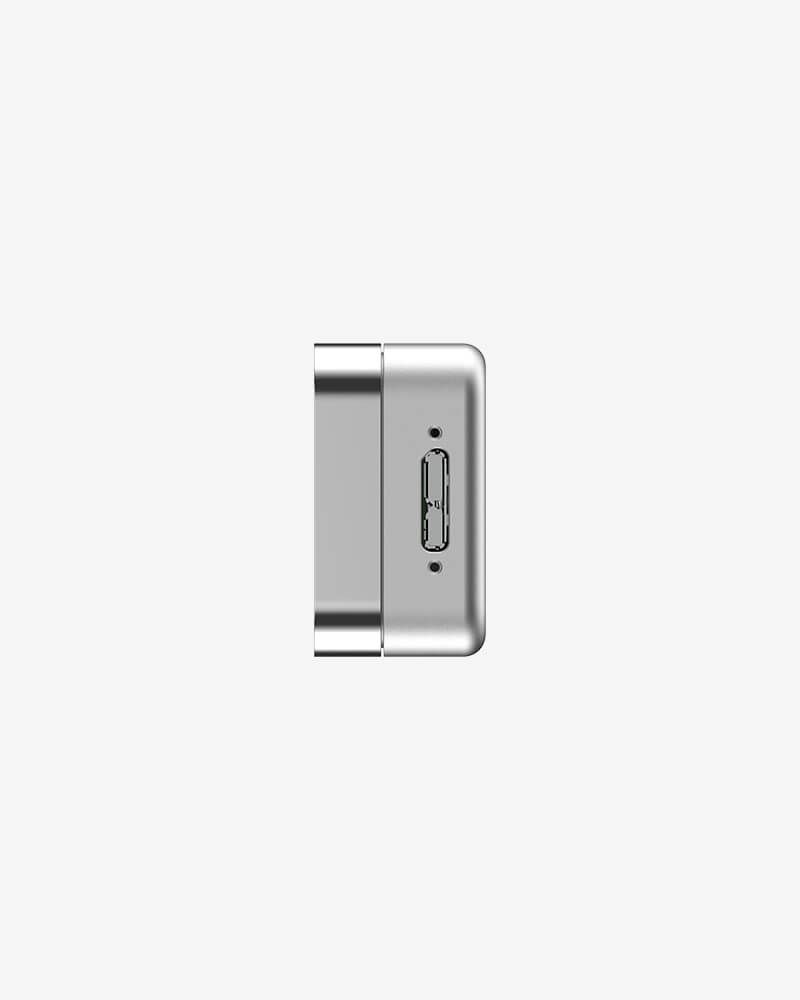

| Connectors | USB 2 USB, C* 3.1 Gen 1* |

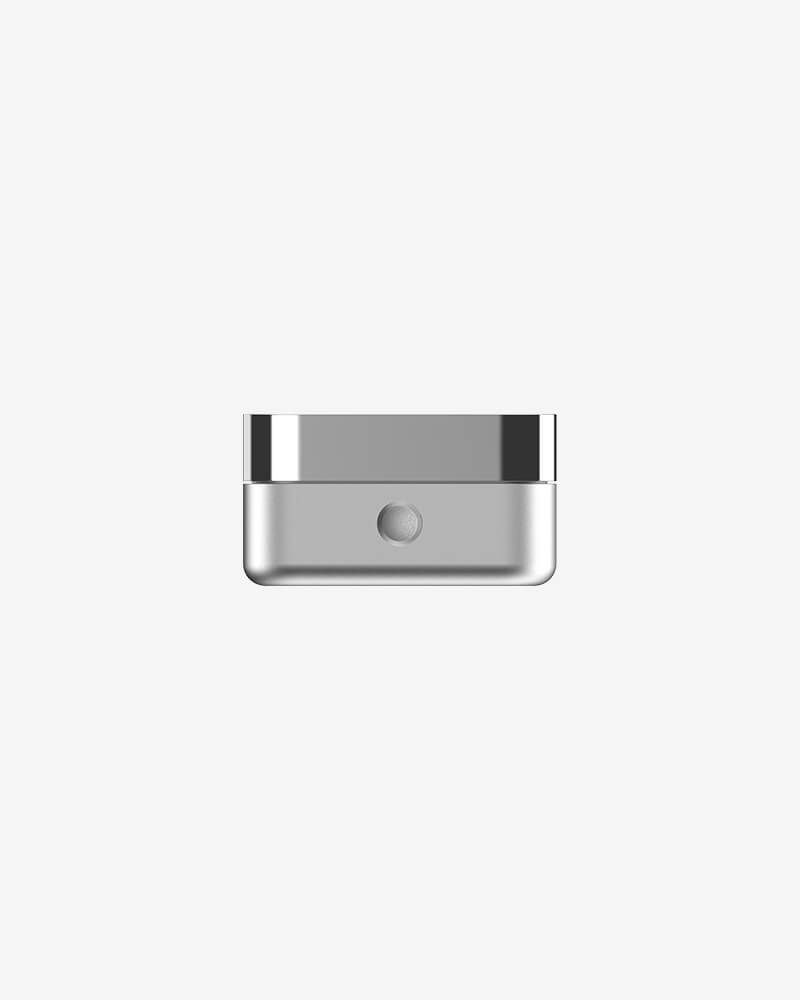

| Mounting Mechanism | – One 1/4‑20 UNC thread mounting point – Two M3 thread mounting points |
