Phidgets

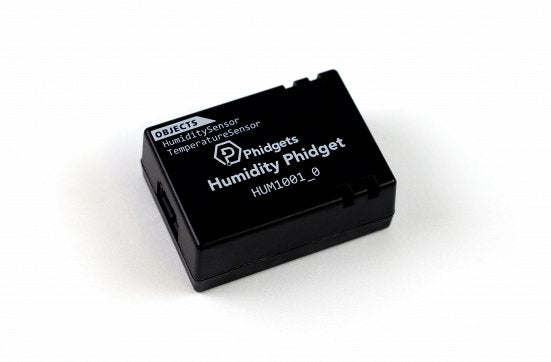

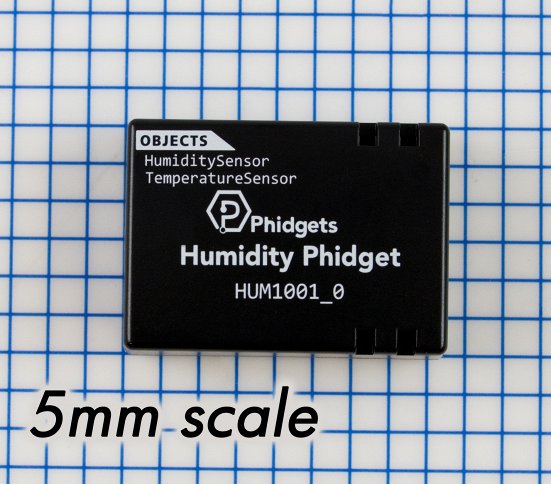

Humidity Phidget
SKU:
Phidgets-HUM1001_0
₹ 2,199.00
Taxes included.
Shipping calculated at checkout.
Description

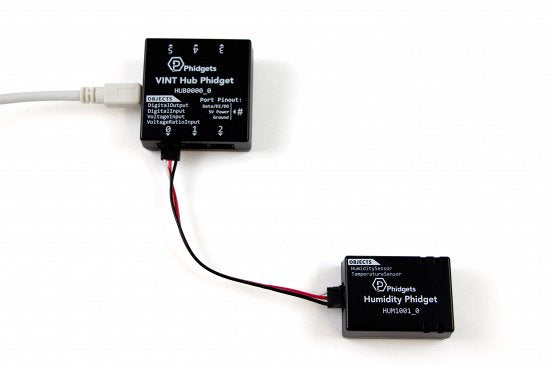

Measure relative humidity and air temperature, in non-condensing environments, with the HUM1001. This Phidget is useful for environmental controls and weather monitoring. This Phidget connects to your computer through a VINT Hub.
Features:
- Measure Relative Humidity from 0% to 100%
- Measure Temperature from -40°C to +85°C
- Retrieve data as often as every 500 milliseconds
- Lower noise and higher accuracy than previous Phidgets humidity sensors
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Type | Humidity / Temperature |
| Controlled By | VINT |
| Humidity Sensor | |
| Humidity Min | 0 %RH |
| Humidity Max | 100 %RH |
| Humidity Resolution | 0.01 %RH |
| Humidity Response Time Max | 10 s |
| Sampling Interval Min | 500 ms/sample |
| Sampling Interval Max | 60 s/sample |
| Humidity Error Max | ± 2 %RH |
| Temperature Sensor | |
| Ambient Temperature Min | -40 °C |
| Ambient Temperature Max | 85 °C |
| Temperature Error Typical (At 25°C) | ± 0.2 °C |
| Temperature Error Max | ± 1 °C |
| Temperature Resolution | 0.01 °C |
| Sampling Interval Max | 60 s/sample |
| Sampling Interval Min | 500 ms/sample |
| Electrical Properties | |
| Current Consumption Max | 100 μA |
| Physical Properties | |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 9025.80.00 |
| American HTS Import Code | 9025.80.10.00 |
| Country of Origin | CN (China) |
