FMC-CE: Basic Input/Output Expansion Board

Description

This product has been discontinued by manufacturers.

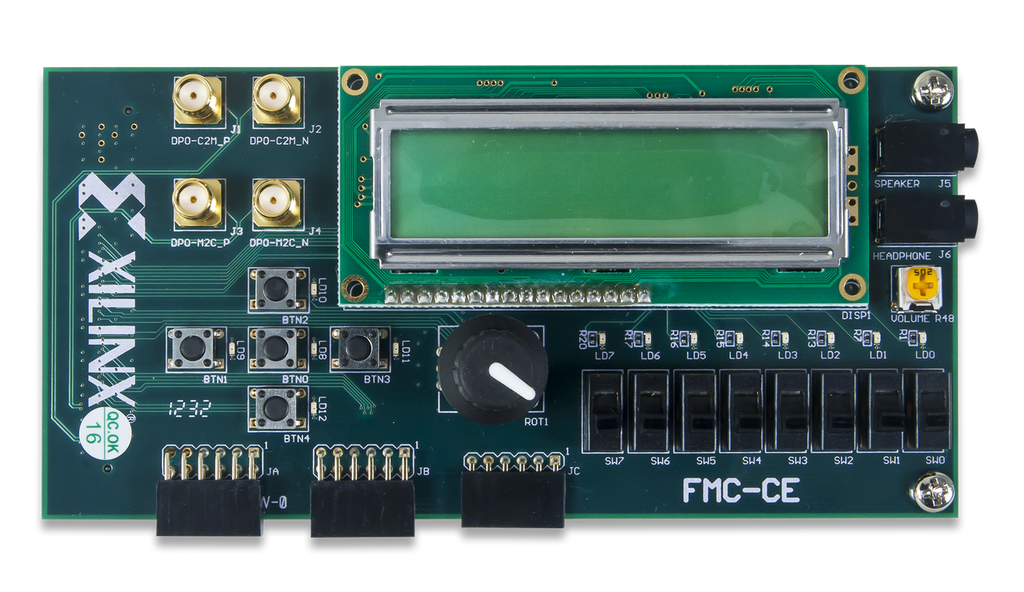

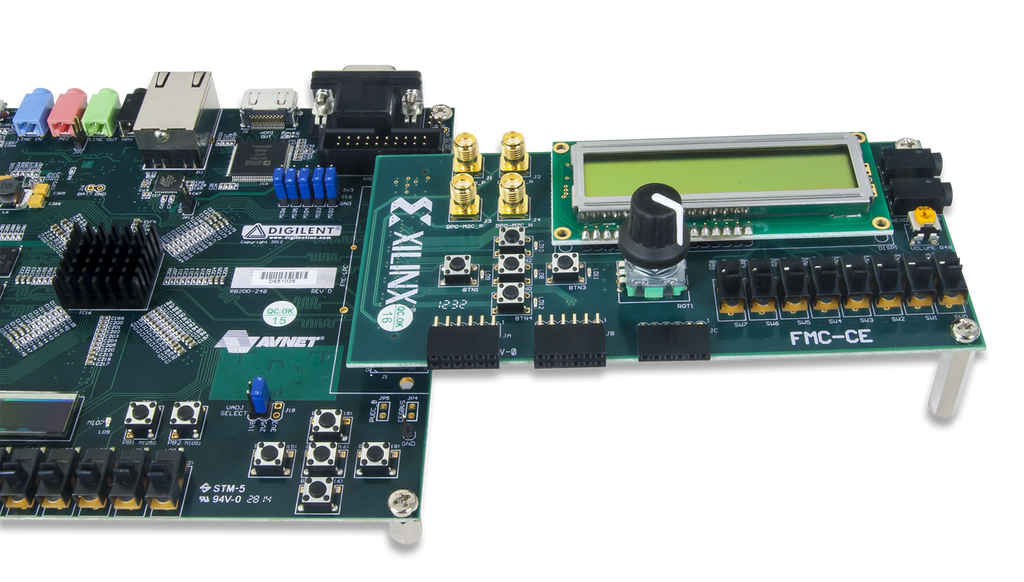

The FMC-CE card is meant to be used with a Xilinx^® demonstration/evaluation board equipped with an FMC connector. This board extends the I/O capabilities of the base platform and provides an I/O consistency among various platforms.

Features:

• Linear array of 8 slide switches
• Linear array of 8 LEDs co-located with the 8 slide switches
• Rosetta pattern of 5 push button switches
• Rosetta pattern of 5 LEDs, co-located with the push button switches
• A Rotary/push-button switch
• An LCD display (2x16)
• Headphone jack & speaker jack with a volume control
• 2 x 12-pin Pmod™ connector, 1 x 6-pin Pmod connector
• 4 SMA connectors
