Phidgets
FlexiForce Adapter
SKU:
Phidgets-1120_0
₹ 1,309.00
Taxes included.
Shipping calculated at checkout.
Description
The FlexiForce adapter allows you to connect one FlexiForce FSR to a an Analog Input or VINT Hub port.

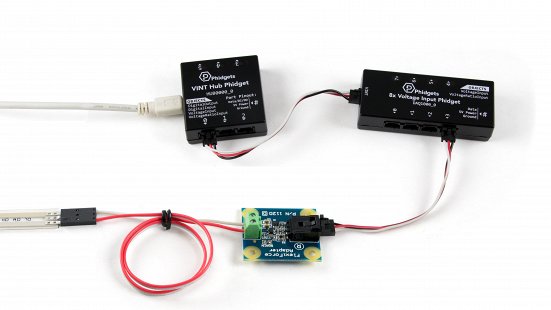

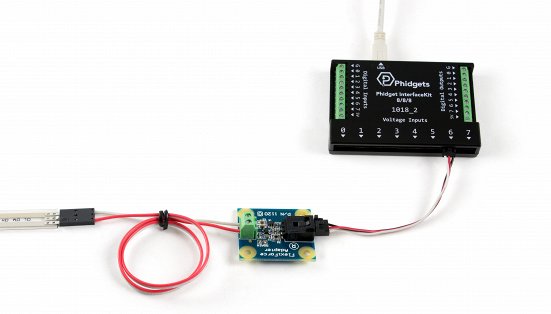

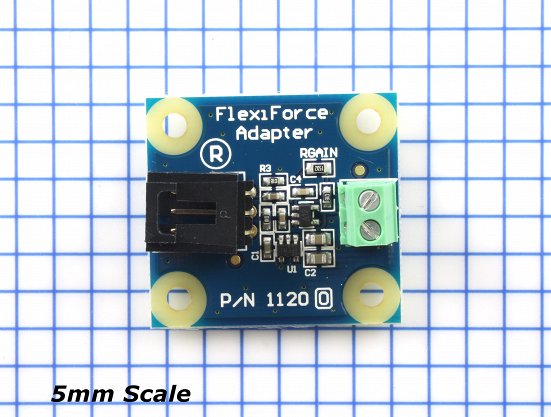

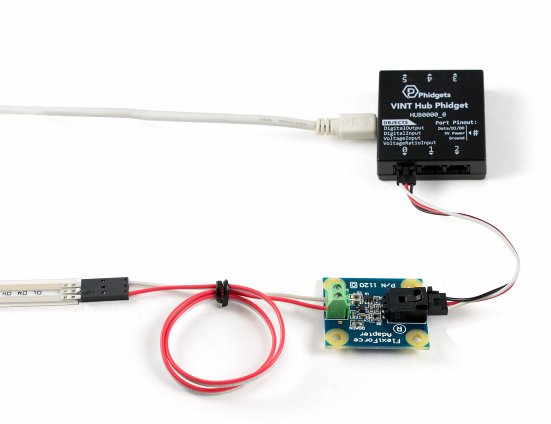

The 1120 FlexiForce Adapter makes it easy to interface a Tekscan FlexiForce force sensor to an Analog Input or VINT Hub Port.
This adapter also includes two round plastic discs to help focus the force directly onto the sensing pad.
The "active sensing area" is a 0.375” diameter circle at the end of the sensor.
Product Specifications
| Sensor Properties | |
|---|---|
| Controlled By | VoltageRatio Input |
| Sensor Output Type | Ratiometric |
| Electrical Properties | |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Min | 2.6 mA |
| Current Consumption Max | 3.2 mA |
| Current Consumption (Overload) | 10.9 mA |
| Measurement Error Max | ± 5 % |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 105 °C |
