MGSL
Femto Bolt
SKU:
₹ 49,399.00
Taxes included.
Shipping calculated at checkout.
Description
Microsoft-Recommended Alternative to Azure Kinect DK
- Depth camera with 1 Mega Pixel ToF sensor and 120° FOV
- Up to 15fps at 1024x1024 or 30fps at 640x576 depth resolution
- 4K RGB with HDR
- 6DoF IMU
- USB Type-C 3.2 for power and data
- Sophisticated and accurate synchronization trigger control for multi-sensor network
|
Operating Environment |
Indoor / Semi-outdoor |
|
Depth Technology |
iToF |
|
Depth Range |
0.25-5.46m |
|
IMU |
Supported |
|
SDK |
Orbbec SDK K4A Wrapper Orbbec SDK |
|
Spatial Precision |
<11 mm+0.1% distance |
|
Depth FoV |
WFoV 120° x 120°, NFoV 75° x 65° |
|
Depth Resolution and Frame Rate |
Up to ： 1024 x 1024@15fps |
|
Depth Shutter Type |
Global Shutter |
|
RGB FoV |
80° x 51° |
|
RGB Resolution and Frame Rate |
Up to ：3840 x 2160@30fps |
|
RGB Shutter Type |
Rolling Shutter |
|
Power supply |
DC：12V / 2A USB：5V / 3A |
|
Power Consumption |
DC Power + USB data |
|
Connector |
USB 3.0 Type-C |
|
Protection |
N/A |
|
Multi-device Sync port |
8-pin |
|
Operating Temperature |
10℃ - 25℃ |
|
Weight |
335g |
|
Dimensions (W*H*D) |
115 × 40 × 65 |
|
Installation |
1x 1/4-20 UNC 4x M2.5 |

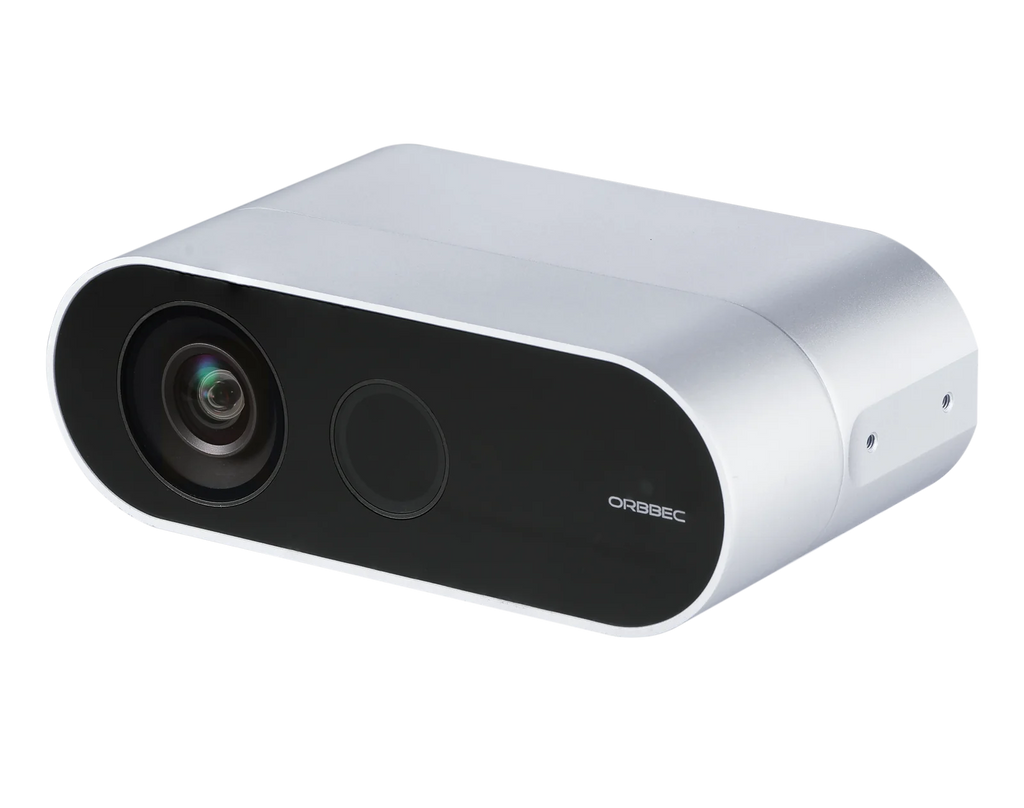

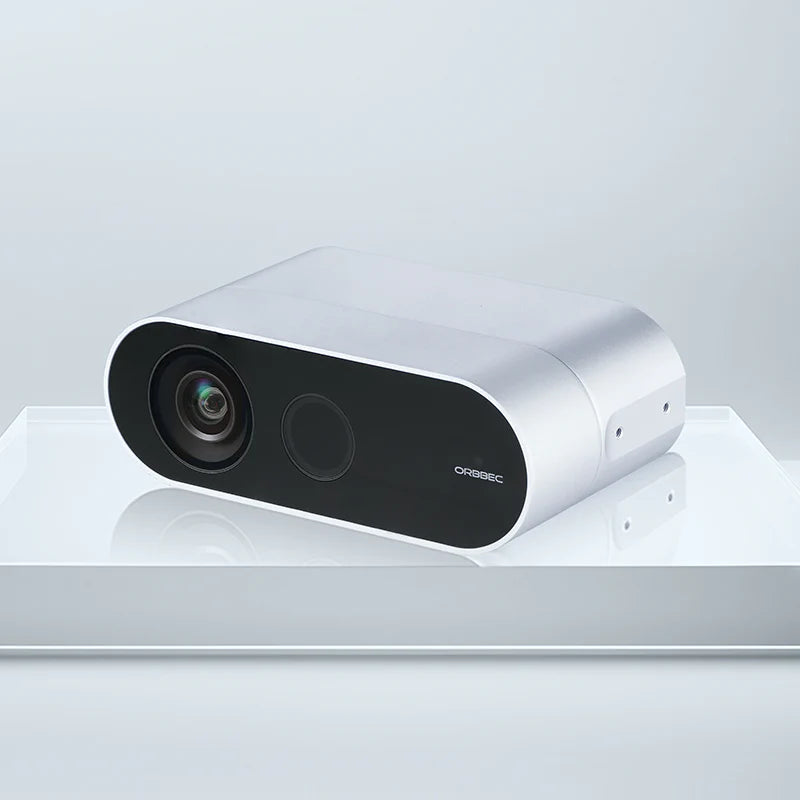

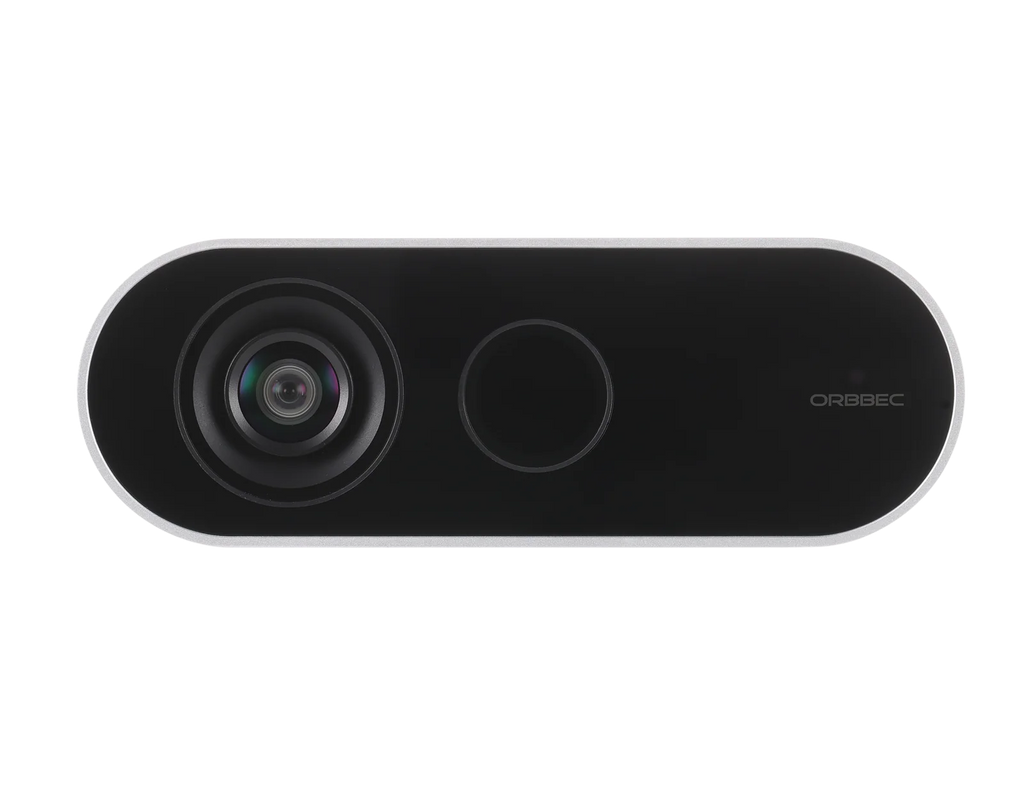

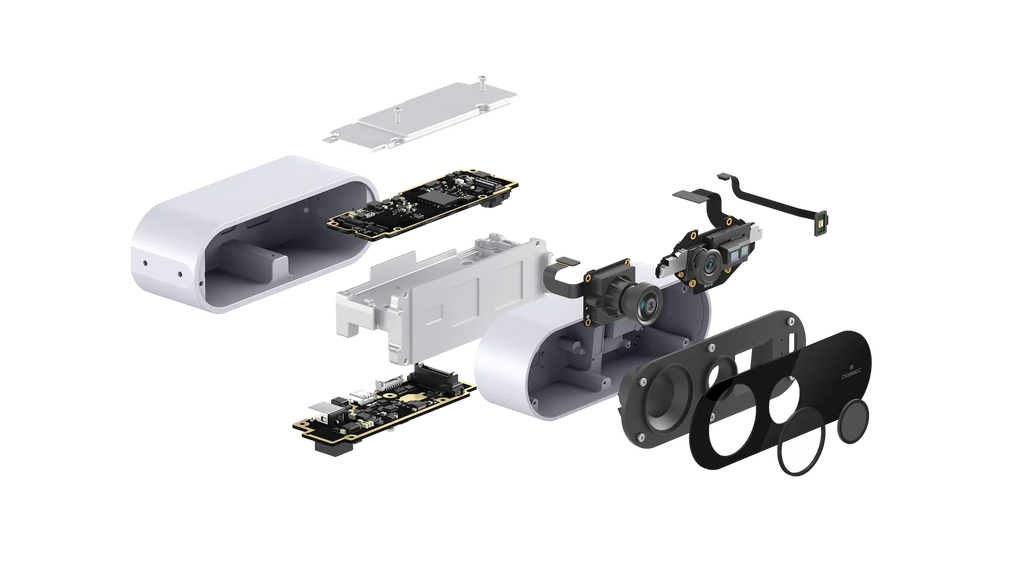

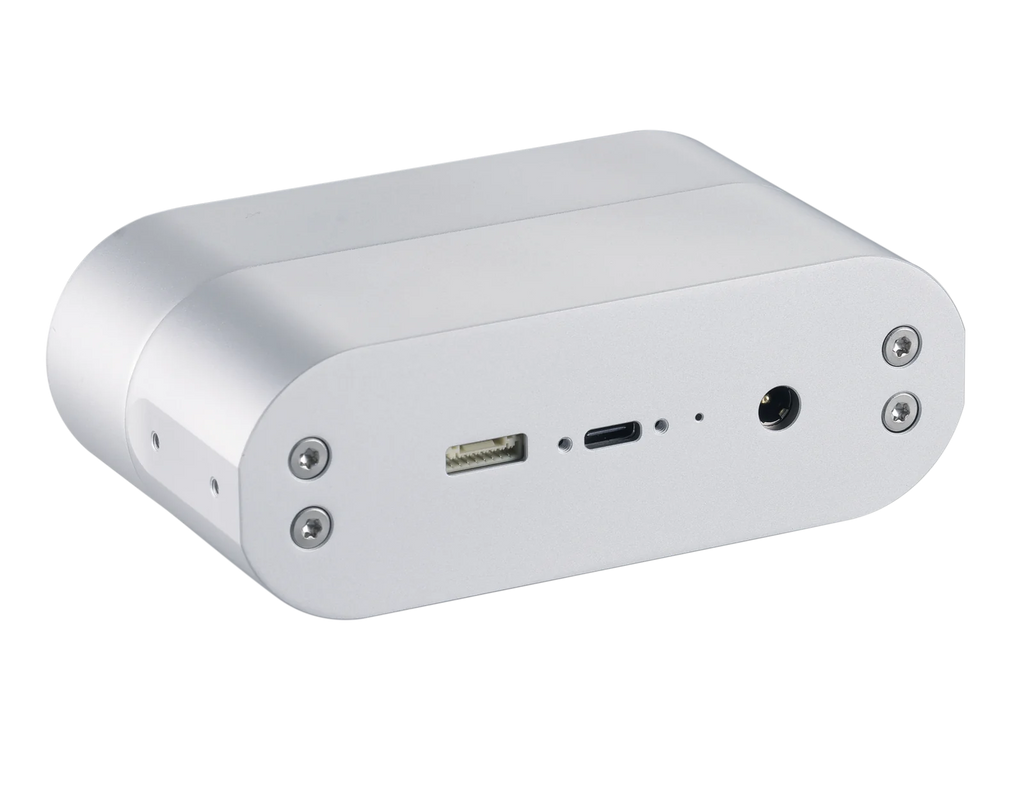

Femto Bolt is a compact, high-performance iToF 3D camera co-developed by Orbbec and Microsoft. It integrates multiple sensing capabilities, including a multi-mode depth camera, color video camera, and inertial sensor. Utilizing Microsoft’s industry-proven ToF technology, the depth camera offers identical operating modes and performance to the Microsoft Azure Kinect and Orbbec Femto Mega.
The Femto Bolt supports simultaneous data transmission and power supply through a single USB Type-C connection. Its versatility and competitive pricing make it an attractive option for AI developers working on 3D vision applications.
