EZO-RGB™ Embedded Color Sensor – Plastic Body
₹ 7,339.00
Sale price
₹ 7,339.00
Regular price
Skip to product information
1 left
Atlas Scientific
EZO-RGB™ Embedded Color Sensor – Plastic Body
AS EZO-O2-P
₹ 7,339.00
Sale price
₹ 7,339.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description
-
Arduino Uno Sample Code
-
Arduino Mega / Giga Sample Code
-
Arduino I2C Sample Code
-
Raspberry Pi Sample Code (I2C)
With your smartphone’s high-definition camera, accurately capturing a color in 8-Bit RGB or CIE might seem straightforward, but it’s quite intricate. The Atlas Scientific EZO-RGB-P sensor, however, simplifies this task. Housed in durable, weather-resistant photosensitive resin body with versatile mounting options, integrated illuminator LEDs, and an easy-to-use data protocol, this sensor brings sophisticated color detection to an accessible level.
The EZO-RGB-P™ comes with:

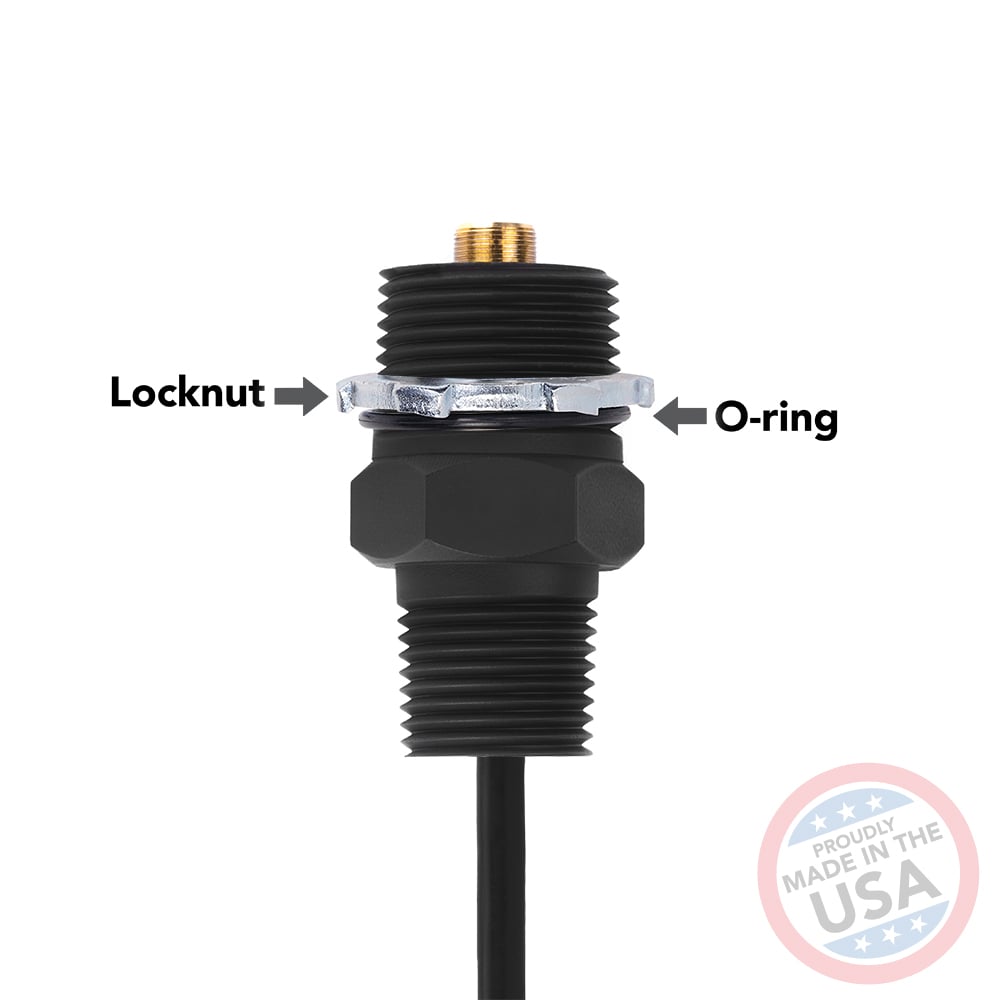

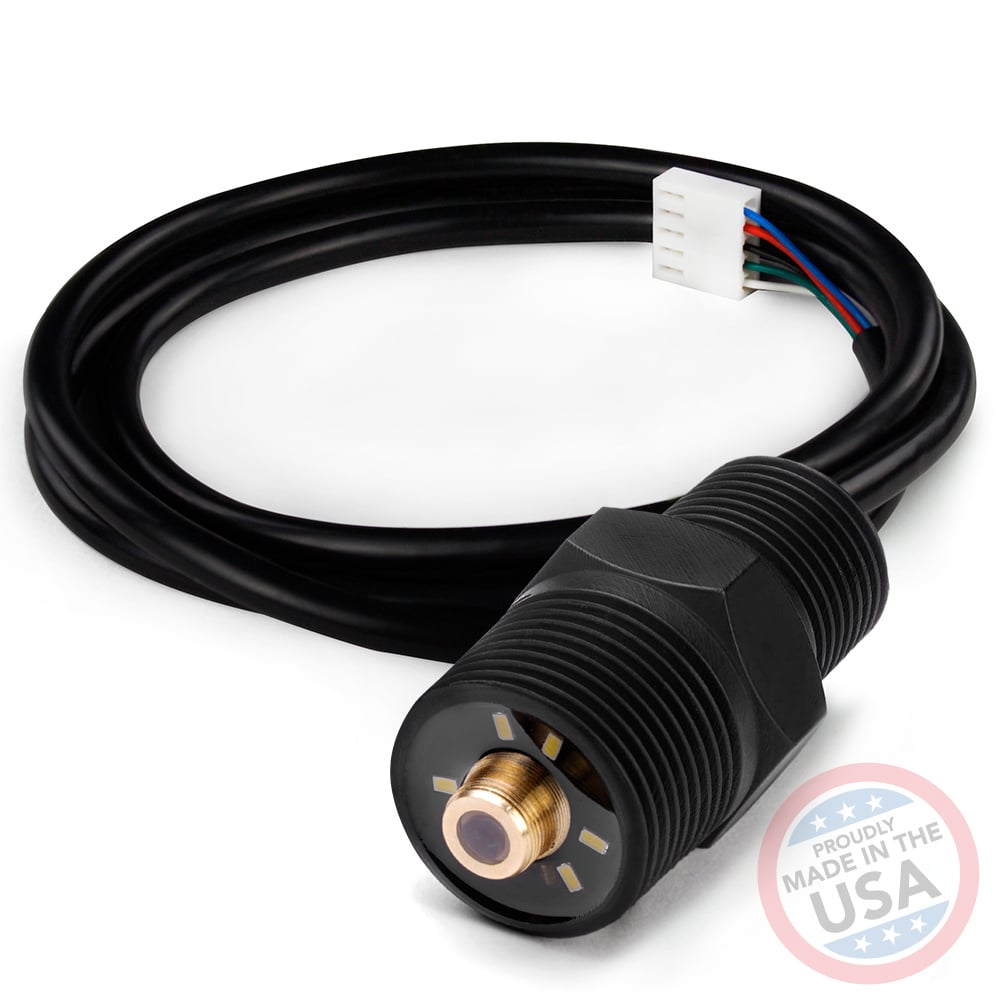

One embedded color sensor with plastic body, one data cable with 5 pin male header, and one Locknut & O-ring.
| Reads | RGB (24-bit) |
| CIE (xyY) | |
| LUX (0 – 65535) | |

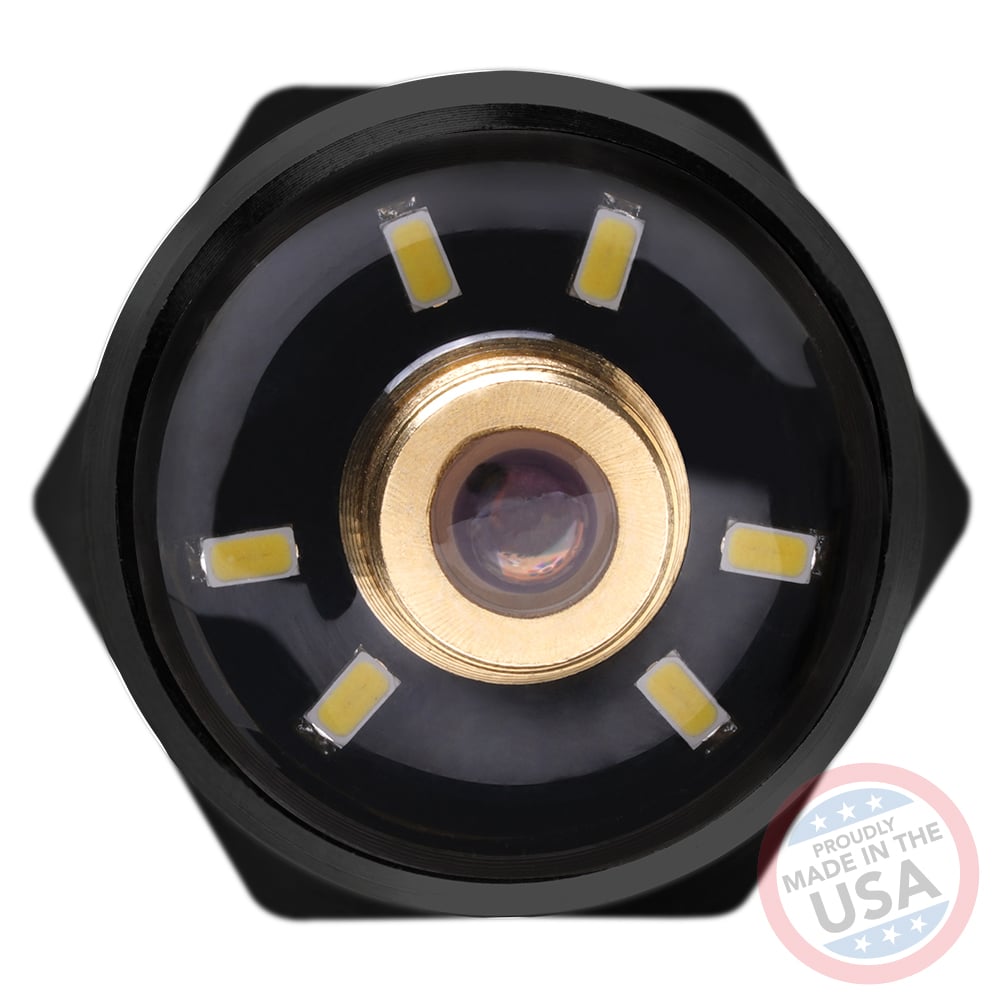

| Features | Onboard LEDs |
| Programmable color matching | |
| Body material | Black – Photosensitive Resin |

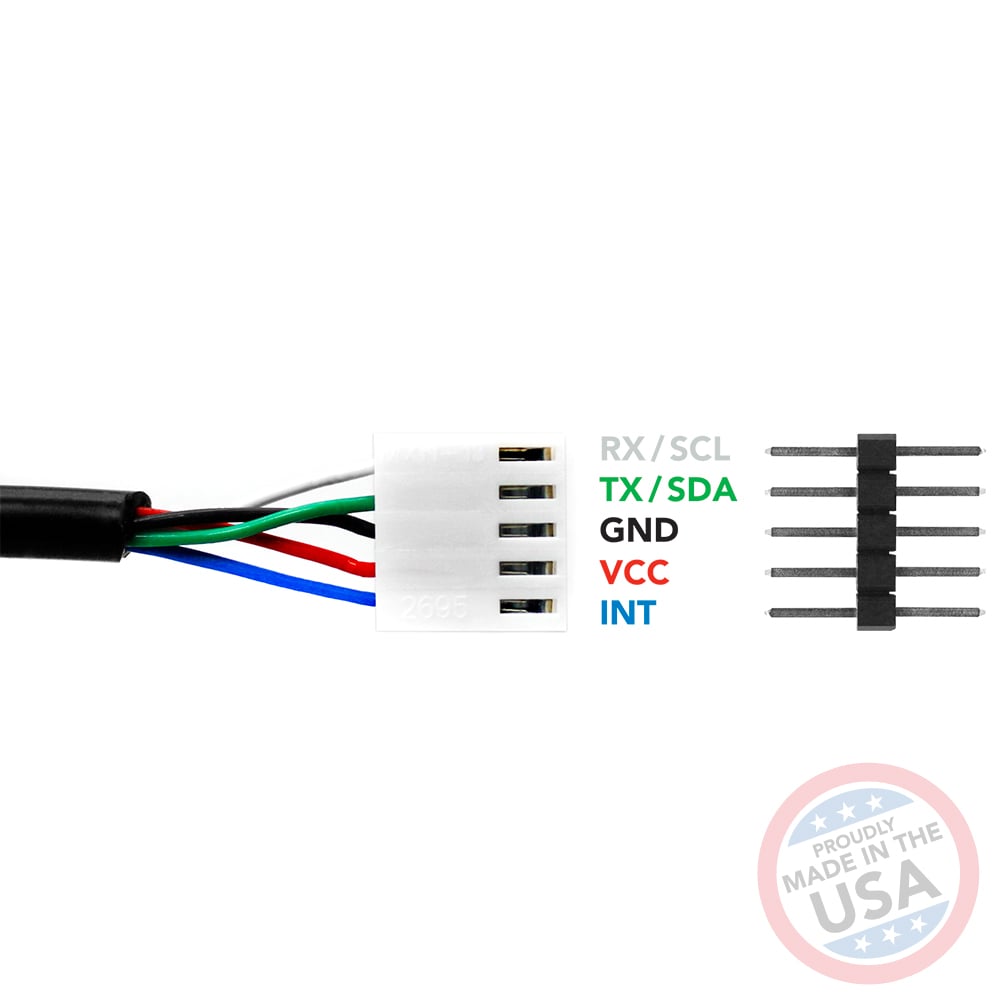

| Connector | 5 lead data cable |
| Response time | 400ms |
| Sensing area | 15° half angle |
| Cable length | 1 meter |
| Water resistant/dust proof | IP67 (waterproof up to 1 meter) |
| Data protocol | UART & I2C |
| Default I2C address | 112 (0x70) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
