EZO-HUM™ Embedded Humidity Probe – Plastic Body
Atlas Scientific
EZO-HUM™ Embedded Humidity Probe – Plastic Body
Description

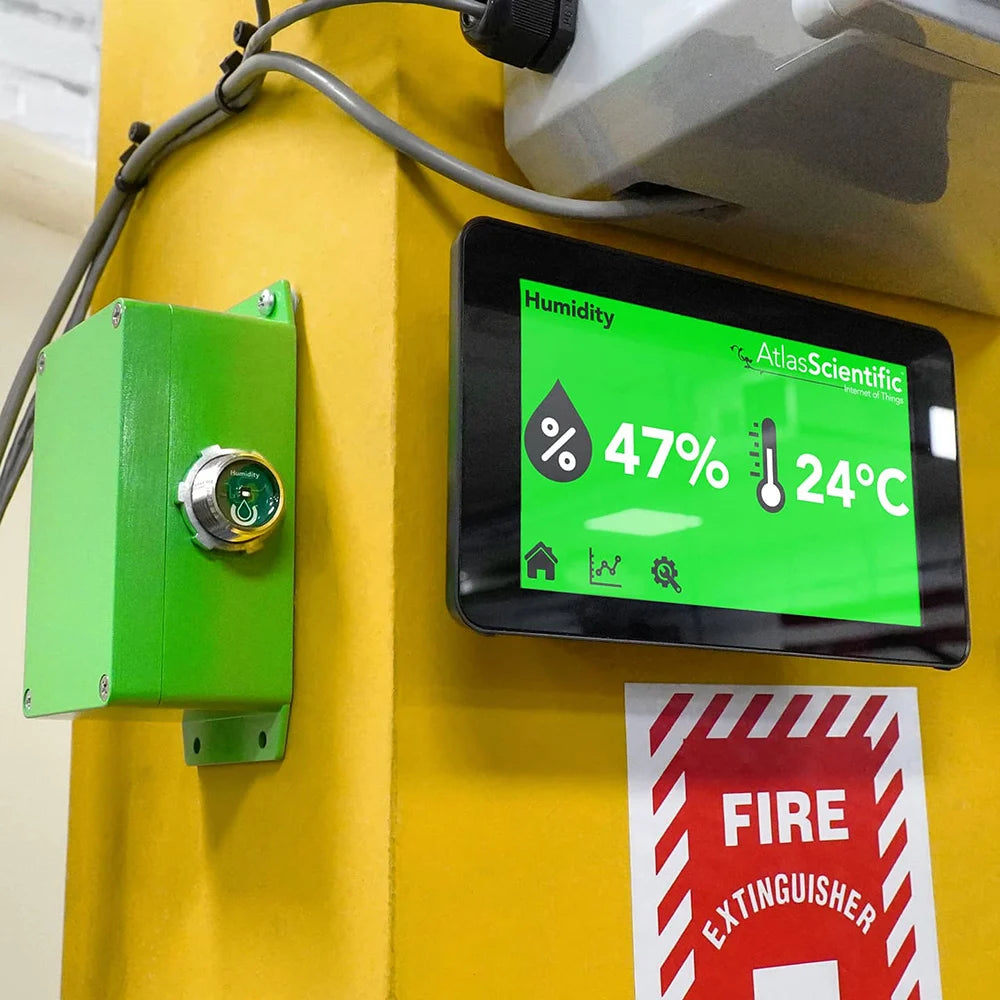

Engineered for diverse applications, including environmental monitoring and industrial processes, this humidity probe is crafted with a photosensitive resin body. This design guarantees the probe’s durability and versatility, making it ideal for measuring indoor humidity. Delivering consistent and accurate readings, it matches the performance of our EZO-HUM Circuit. There is no difference in the readings or accuracy, only the design.
This probe comes fully calibrated and ready to use right out of the box.
The EZO-HUM-P-P™ comes with:

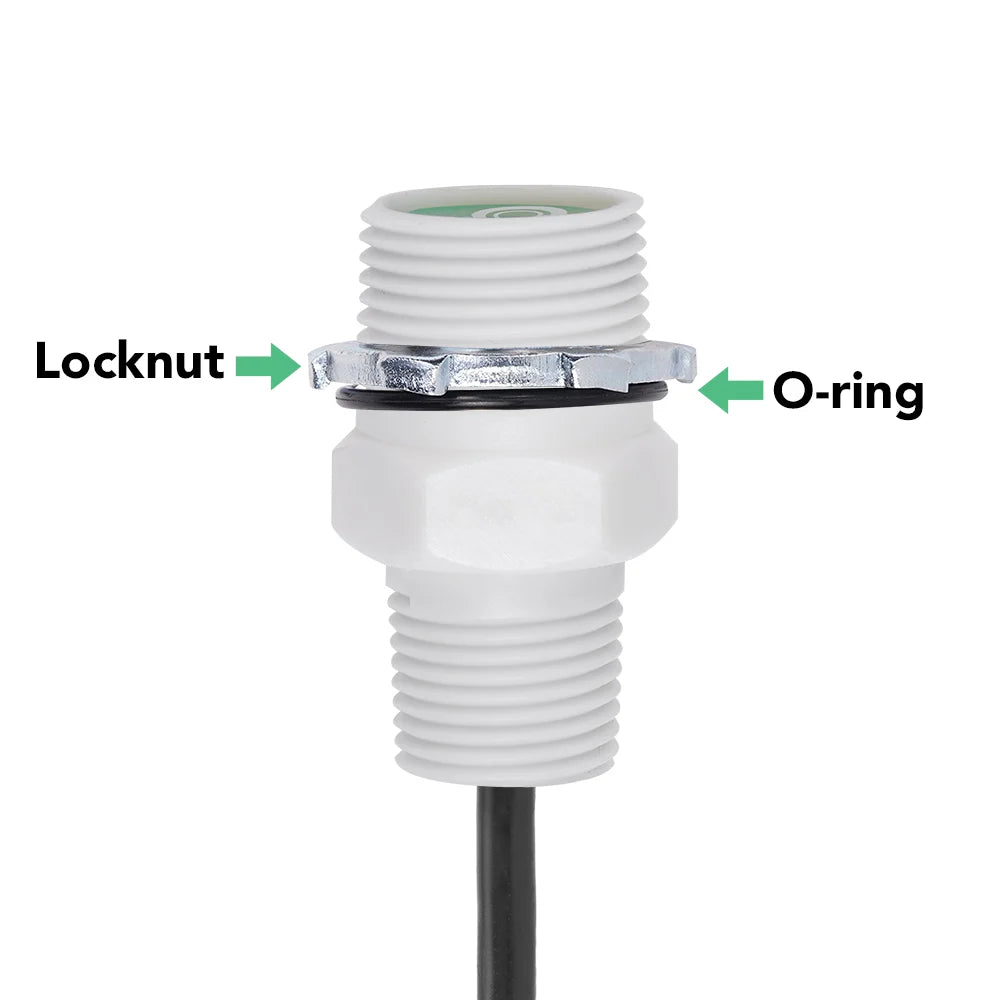

One embedded Humidity probe with Plastic Body, one data cable with 5 pin male header, and one Locknut & O-ring.

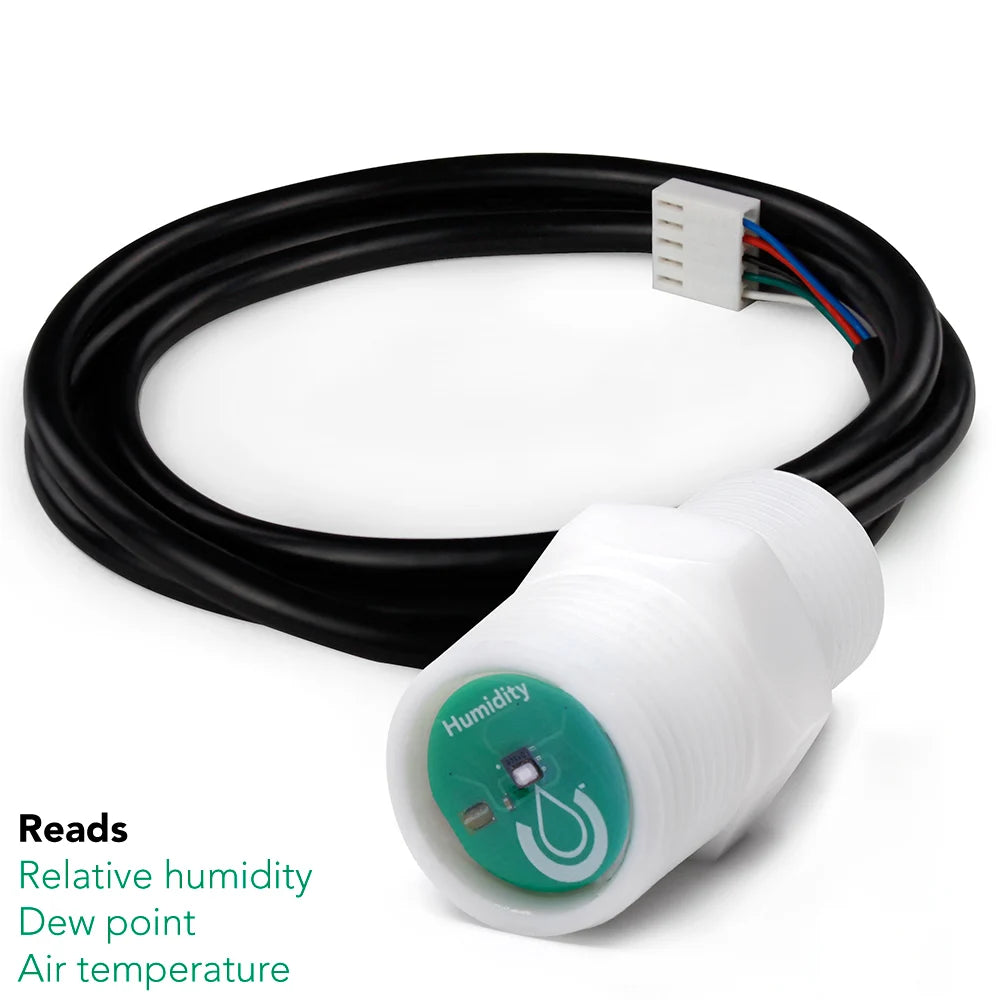

| Reads | Relative humidity |
| Dew point | |
| Air temperature | |
| Range | 0 – 100% |
| Calibration | Factory calibrated |
| Response time | 1 reading per second (UART mode) |
| 1 reading per 300 milliseconds (I2C mode) | |
| Accuracy | +/- 2% |
| Body material | 9000R – Photosensitive Resin |

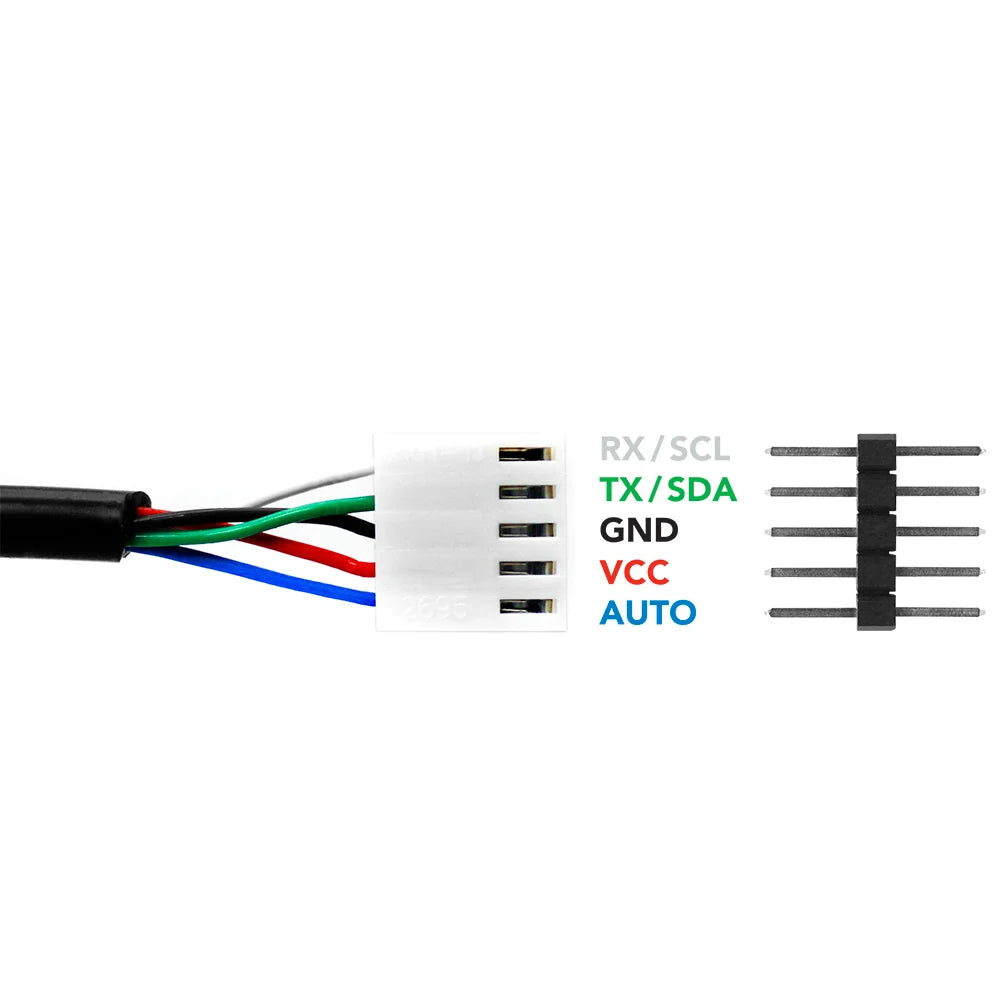

| Connector | 5 lead data cable |
| Cable length | 1 meter |
| Data protocol | UART & I2C |
| Default I2C address | 111 (0x6F) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| IP rating | IP67 (waterproof up to 1 meter) |
| NEMA rating | 6P |
| Life expectancy | 10 years |
Documents
Downloads
Basic Sample Code
-
Arduino Uno Sample Code
-
Arduino Mega Sample Code
-
Arduino I2C Sample Code
-
Raspberry Pi Sample Code (I2C)
Library
3D files
